Delock PCI Express x16 Card to 1 x M.2 Key B + 1 x NVMe M.2 Key M + 1 x mSATA - Low Profile Form Factor

Reference 90486

Condition: New

More info

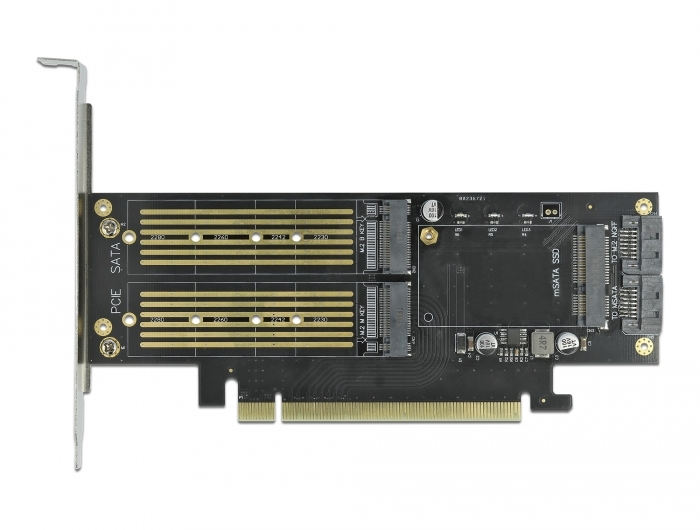

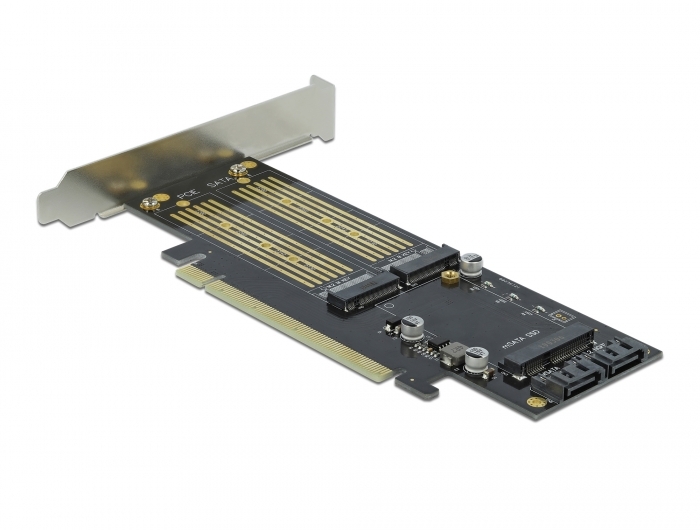

This PCI Express card by Delock expands the PC by two M.2 slots as well as an mSATA slot. One M.2 SATA module can be connected in format 2280, 2260, 2242, 2230 with this card and connected via SATA cable to the motherboard. Furthermore, one M.2 NVMe / PCIe module in format 2280, 2260, 2242, 2230 can be connected. Additionally, one mSATA memory can be connected via SATA cable to the motherboard. All slots can be used separate or at the same time.

System requirements:
• Linux Kernel 4.6.4 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot

Specification:
• Connectors:
  1 x 67 pin M.2 key B slot
  1 x 67 pin M.2 key M slot
  1 x mSATA slot (full size)
  1 x PCI Express x16, V4.0
  2 x SATA 6 Gb/s 7 pin plug
• Interface: PCIe / SATA
• Supports one M.2 module in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA and one M.2 module in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided
assembled modules supported
• 3 x LED indicator
• Bootable
• Supports NVM Express (NVMe)
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap

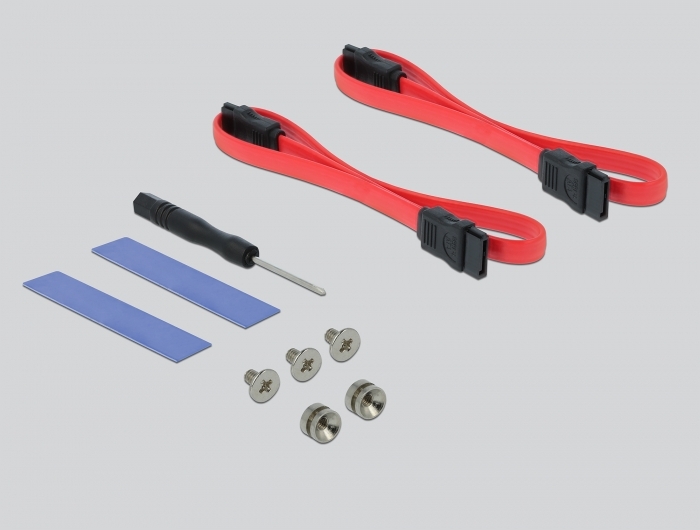

Package content:
• PCI Express card

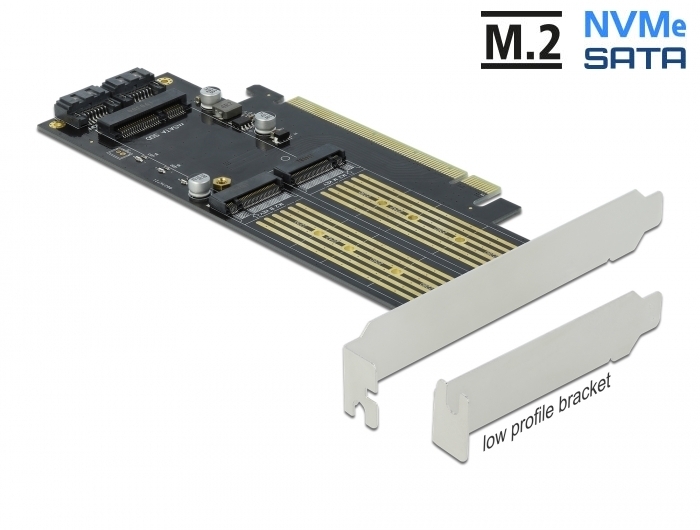

• Low profile bracket
• 2 x SATA cable, length ca. 35 cm
• Mounting material
• Screwdriver
• 2 x thermal pad
• User manual
