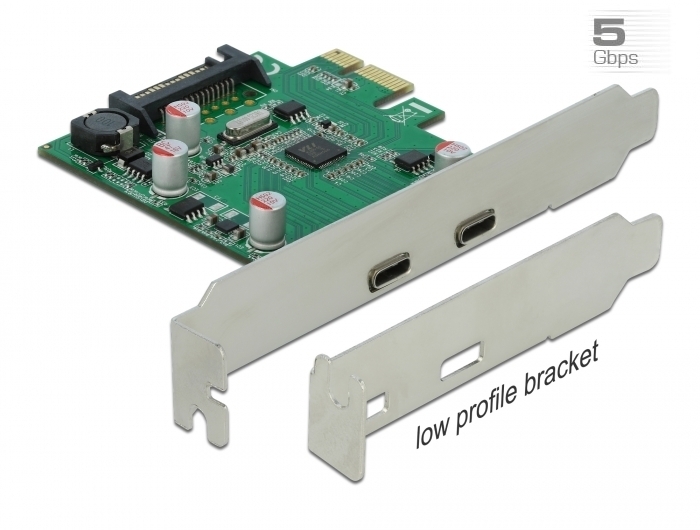

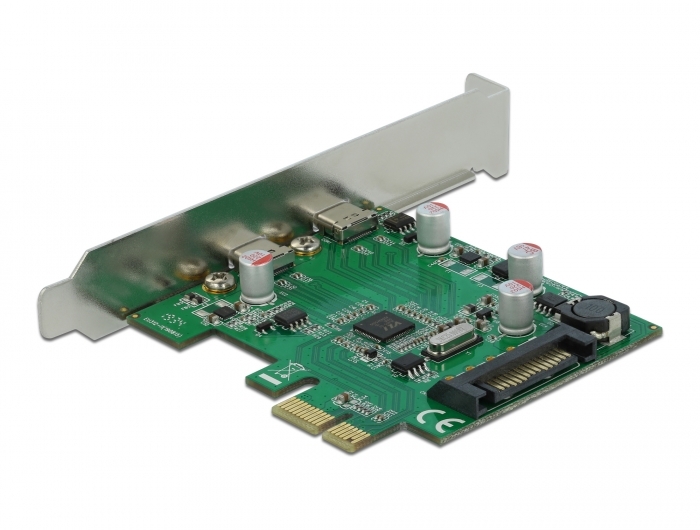

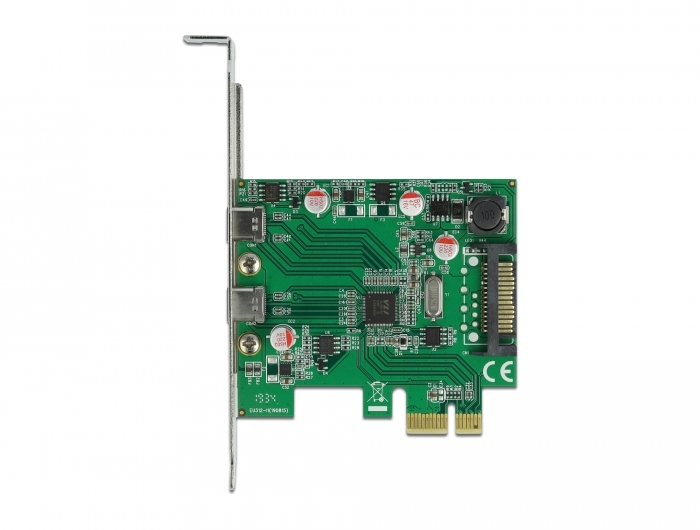

Delock PCI Express x1 Card to 2 x external SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female

Reference 90493

Condition: New

More info

This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

System requirements:
• Linux Kernel 3.16 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
• A free SATA power plug

Specification:
• Connectors:
  external:
  2 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
  internal:
  1 x SATA 15 pin power connector
  1 x PCI Express x1, V2.0
• Chipset: VIA VL805
• Data transfer rate up to:
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply mandatory via SATA power connector
• Electrical power per port: max. 7 watt (5 V / 1.4 A)

Package content:
• PCI Express card
• Low profile bracket
• User manual
