Delock PCI Express Card Dual band Wi-Fi 6 WLAN ax/ac/a/b/g/n 2400 Mbps + Bluetooth 5.1

DELOCK

89049

New

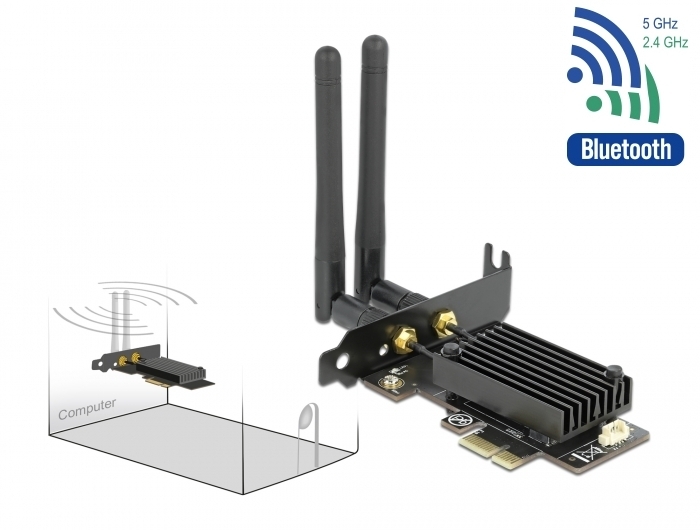

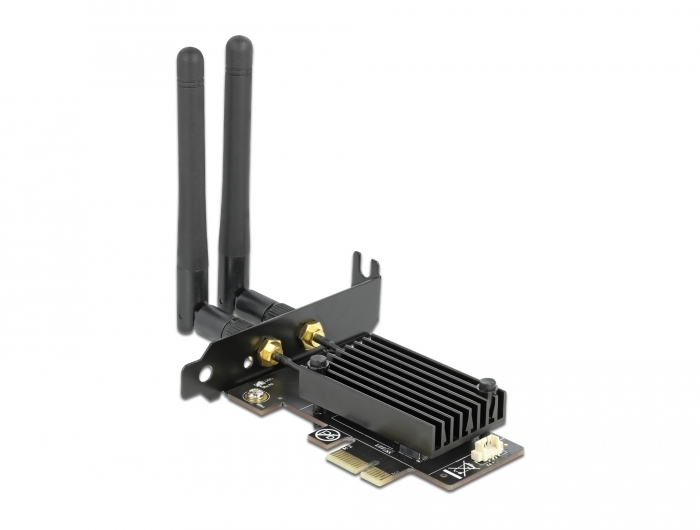

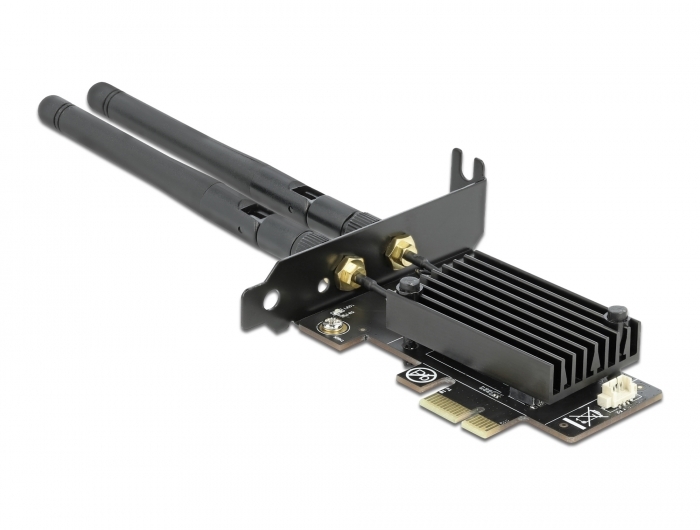

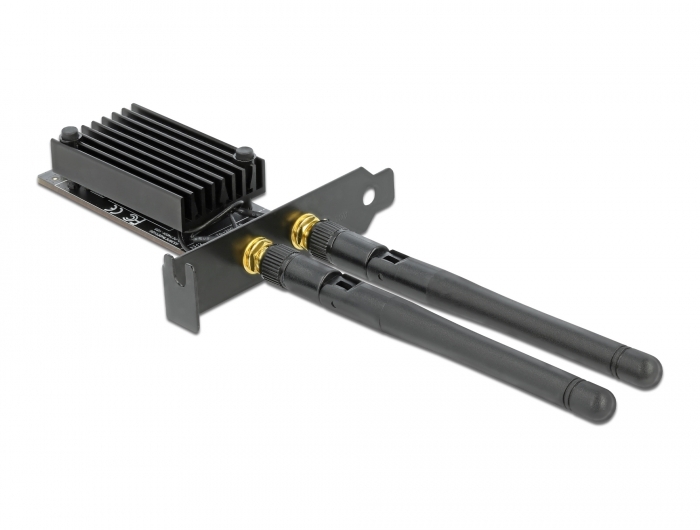

This PCI Express card by Delock will be installed into a PC and can provide a WLAN and Bluetooth connection.

Supports Wi-Fi 6
The Wi-Fi standard 802.11ax is supported, which allows higher data rates. Furthermore, the interference is reduced due to overlapping WLAN frequencies. Compatibility with previous standards such as 802.11ac/a/n/b/g is given.
The WLAN card can be connected to an AccessPoint (HotSpot) or WLAN router in a 2.4 GHz and 5 GHz band. Furthermore it enables an adhoc connection to a second computer.

Bluetooth 5.1
Due to the Bluetooth 5.1 standard, this card requires less power and has a fast data transfer rate. Furthermore, it can be easily coupled with the end devices.
System requirements:
• Windows 10/10-64
• PC with one free PCI Express slot
• A free USB pin header (Bluetooth)
Specification:
• Connectors:
  external:
  2 x RP-SMA jack
  internal:
  1 x PCI Express x1, V3.0
  1 x 4 pin USB (Bluetooth)
• Chipset: Intel AX200
• Data transfer rate up to 2400 Mbps @ 2x2 802.11ax
• 2T2R mode
• Frequency range: 2.4 GHz + 5 GHz band
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Antenna type: external omnidirectional detachable antenna (RP-SMA plug)
• Length:
  ca. 87 mm (with tilt joint)
  ca. 108 mm (without tilt joint)
• Compatible with IEEE 802.11ax/ac/a/n/b/g
• Encryption WEP, WPA, WPA2, WPA3
• Supports DFS (Dynamic Frequency Selection)
• Supports WPS
• Supports MU-MIMO
• Bluetooth standard 5.1
• 1 x LED indicator
Package content:
• PCI Express card
• Low profile bracket
• 2 x antenna
• Cable 4 pin to USB pin header female, length ca. 30 cm
• User manual
Data sheet:
http://www.delock.de/produkt/89049/pdf.html?sprache=en
