Delock PCI Express Card to 1 x Serial RS-232

Reference 90000

Condition: New

More info

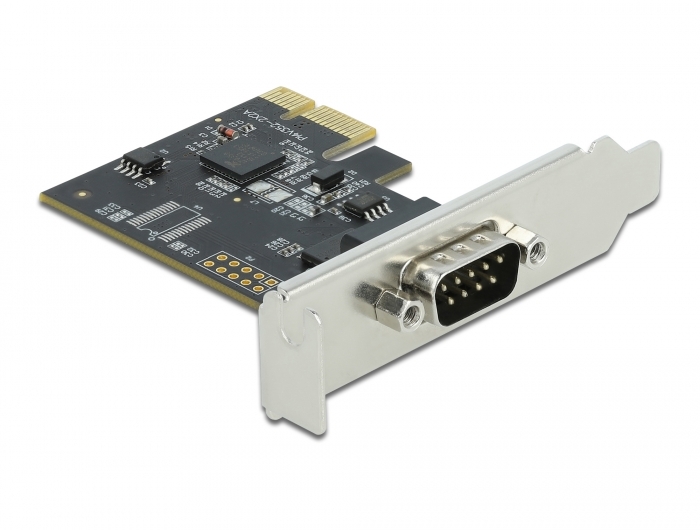

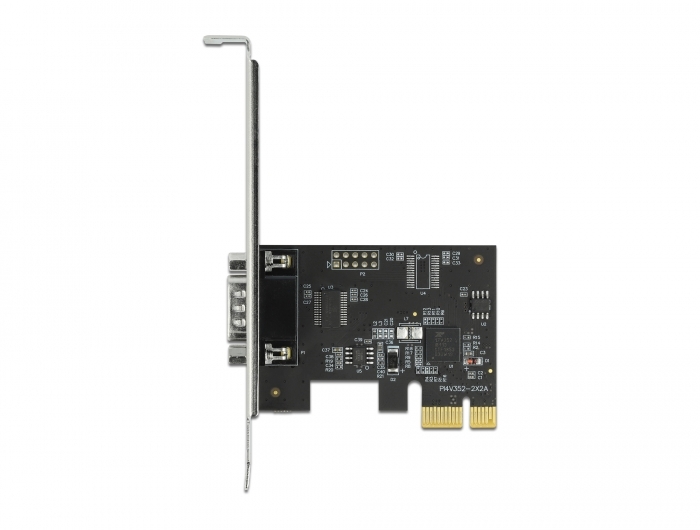

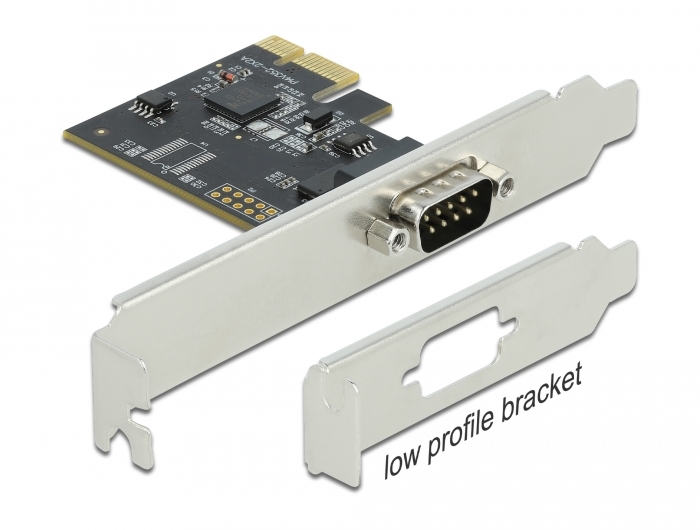

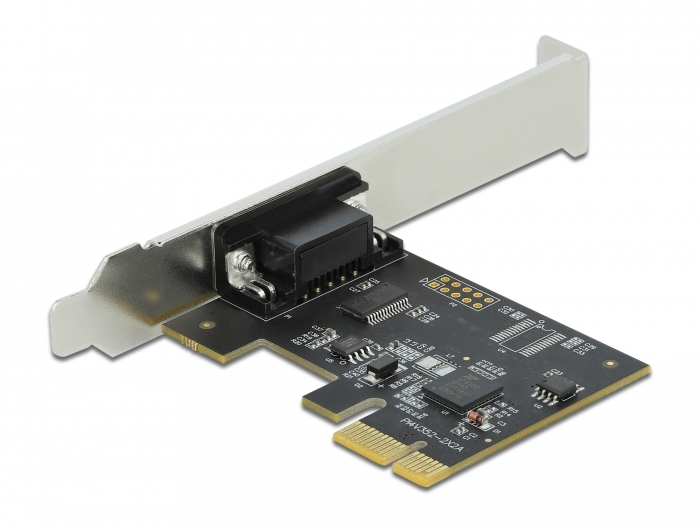

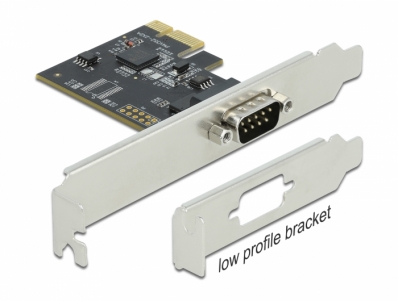

The Delock PCI Express card expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: Exar XR17V352
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Dimensions (LxW): ca. 64 x 45 mm

Package content:
• PCI Express card
• Low profile bracket
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/90000/pdf.html?sprache=en
