Delock PCI Express Card to 2 x Serial RS-232

Reference 90007

Condition: New

More info

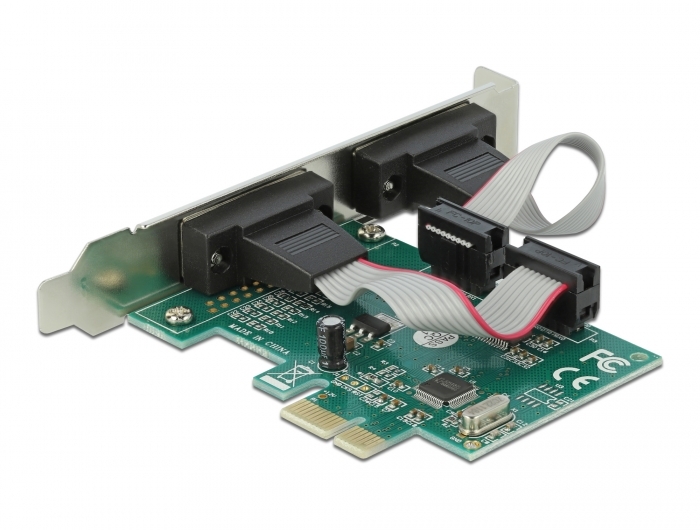

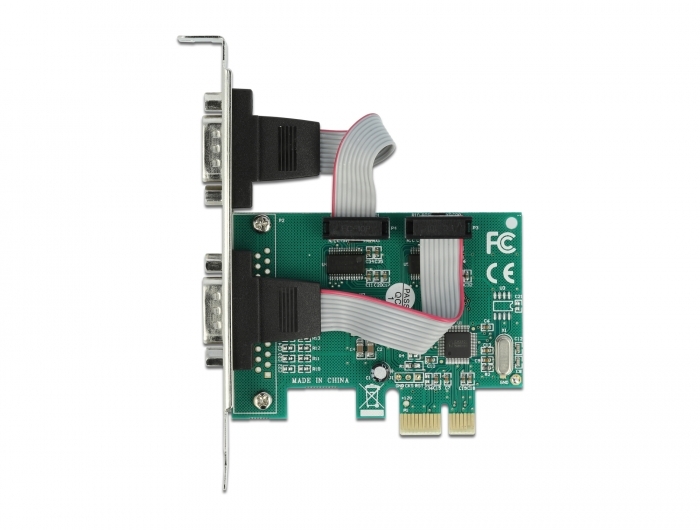

The PCI Express card by Delock expands a PC by two external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

Low Profile Form Factor

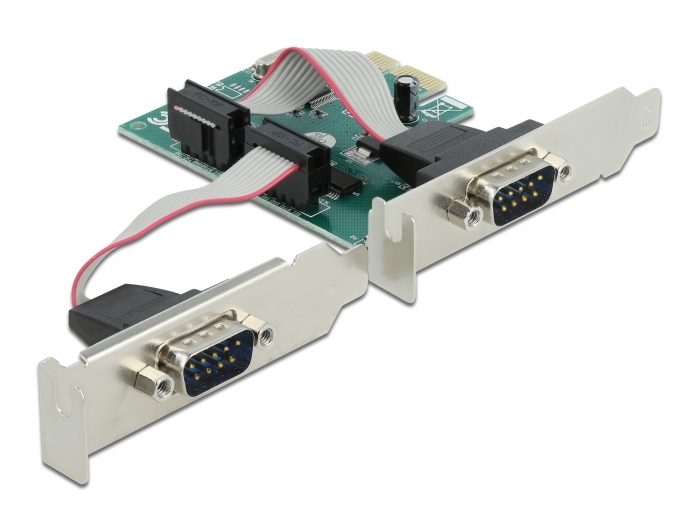

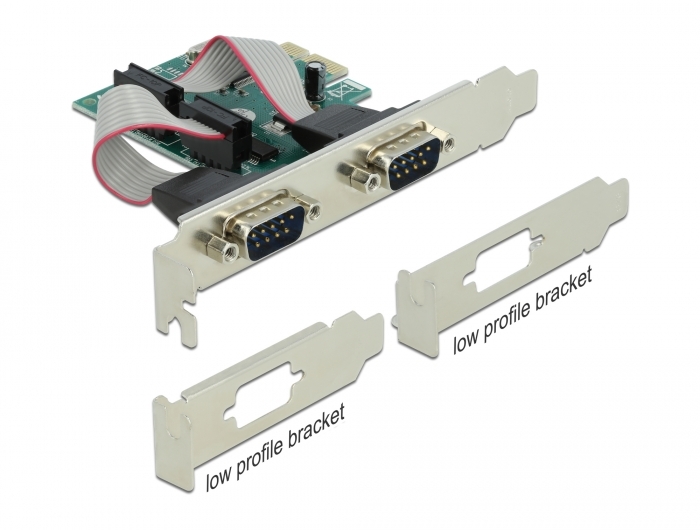

By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Linux Kernel 4.15 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V1.1
• Chipset: WCH CH382L
• Compatible with 16C550 / 16C750 UART
• Data transfer rate up to 921.6 Kbps
• Buffer: 256 byte on each port
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -20 °C ~ 80 °C

Package content:
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
