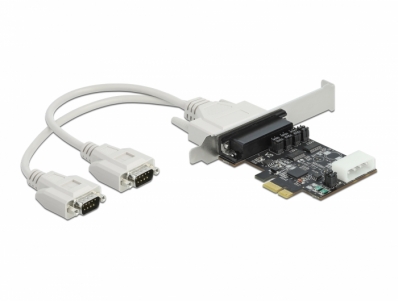

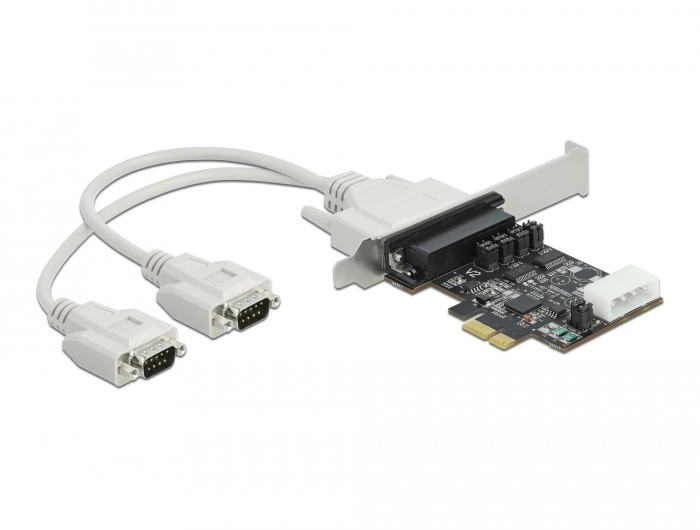

Delock PCI Express Card to 2 x Serial RS-232 with voltage supply 5 V / 12 V

DELOCK

89909

New

The PCI Express card by Delock expands a PC by two external serial ports.

Optional voltage supplies via RS-232

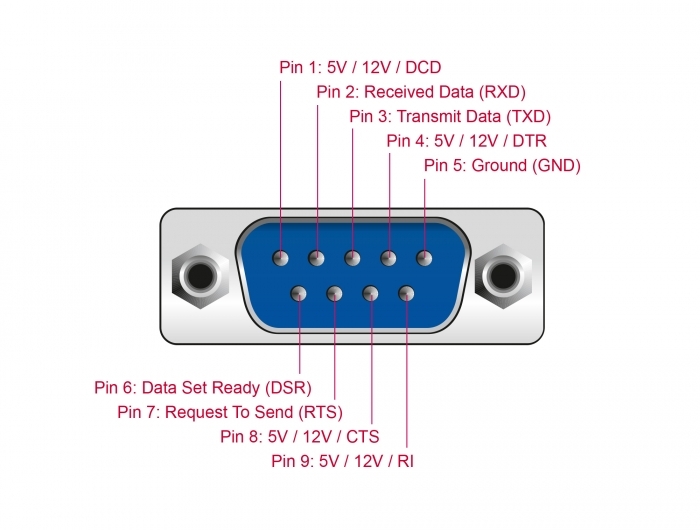

Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).

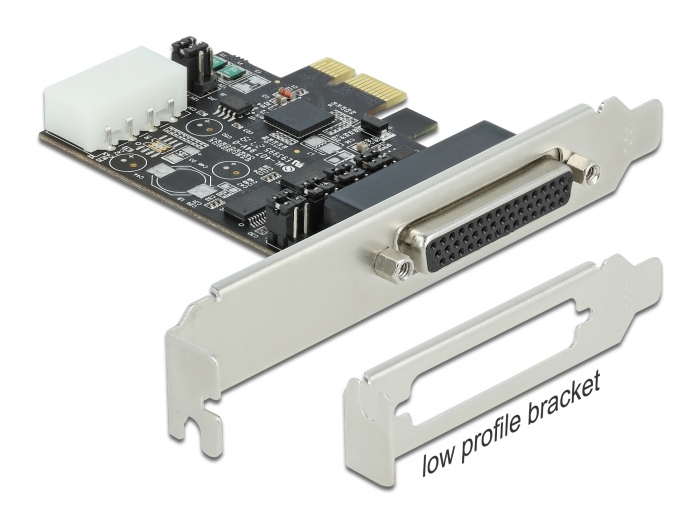

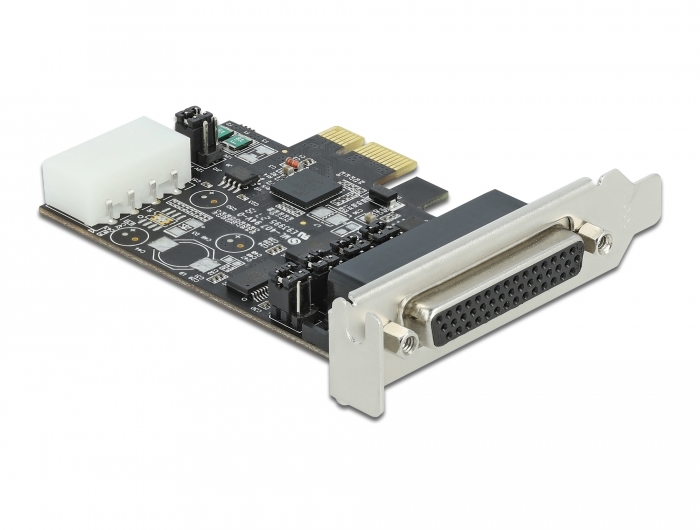

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
• Power supply with a free Molex power connector
Specification:
• Connectors:
  internal:
  1 x PCI Express x1, V2.0
  1 x power connector 4 pin Molex male
  external:
  1 x DB44 female
  connecting cable: DB44 male > 2 x serial RS-232 DB9 male
• Chipset: MaxLinear 17V352
• Compatible with 16C550 UART
• Data transfer rate up to 230.4 Kbps
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• FIFO: 256 byte
• ±15 kV ESD protection on all signal pins
• 5 V or 12 V can be set individually for each port through the jumper (Pin 1/4/8/9)
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Electrical power per port: max. 18 watt (12 V / 1.5 A)
• I/O address and IRQ assigned by BIOS
• Dimensions (LxW): ca. 80 x 55 mm
Package content:
• PCI Express card
• Low profile bracket
• 1 x serial connecting cable (ca. 30 cm)
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/89909/pdf.html?sprache=en
