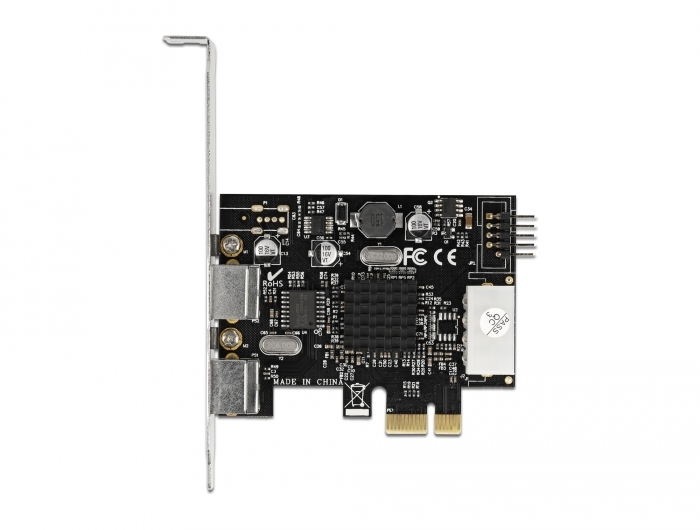

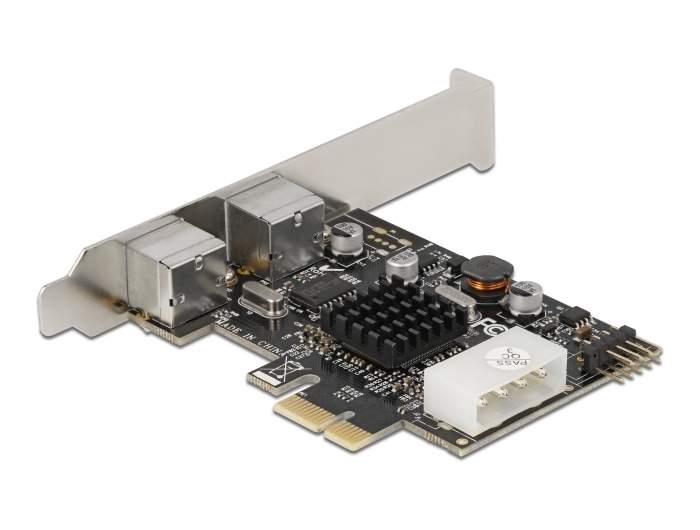

Delock PCI Express x1 Card to 2 x PS/2 and USB Pin Header - Low Profile Form Factor

DELOCK

90049

New

This PCI Express card by Delock expands the PC by two PS/2 ports and one internal USB 2.0 pin header. To the PS/2 ports different devices such as a keyboard and a mouse can be connected. The internal USB port can be used to connect USB devices, with the help of an optional cable.
System requirements:
• Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express slot
Specification:
• Connectors:
  external:
  2 x PS/2 female
  internal:
  1 x 9 pin USB 2.0 pin header male
  1 x PCI Express x1, V1.0
  1 x 4 pin power connector
• Chipset: ASIX MCS9990
• Data transfer rate up to:
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Hot Plug, Plug & Play
Package content:
• PCI Express card

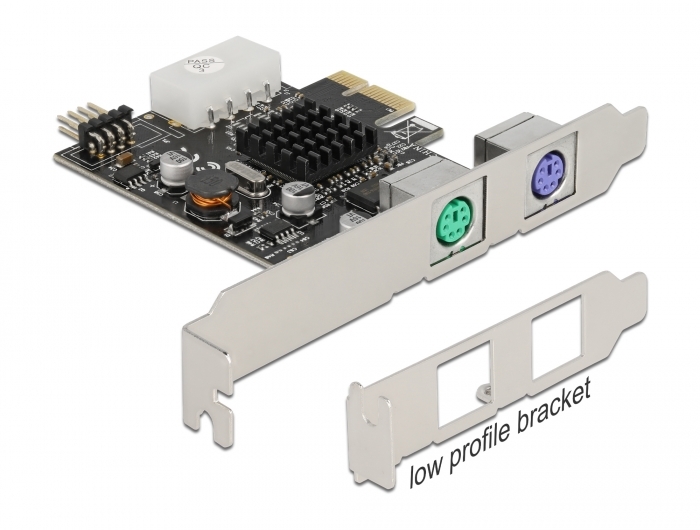

• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/90049/pdf.html?sprache=en
