Delock PCI Express 4.0 x16 Card to 4 x internal NVMe M.2 Key M with Heat Sink and Fan - Bifurcation

DELOCK

90079

New

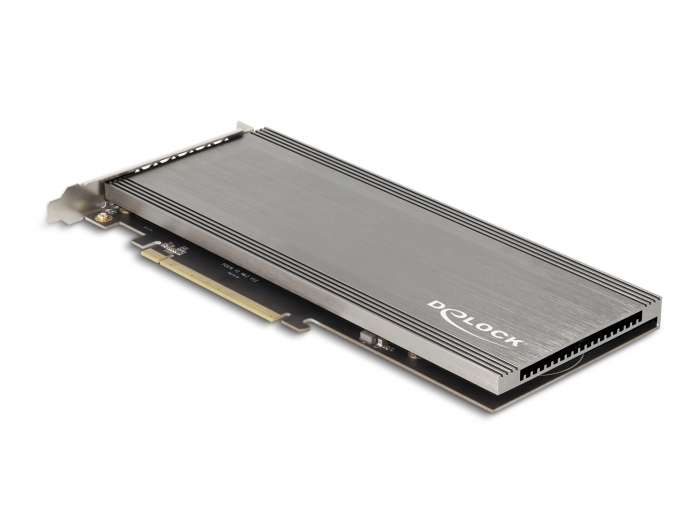

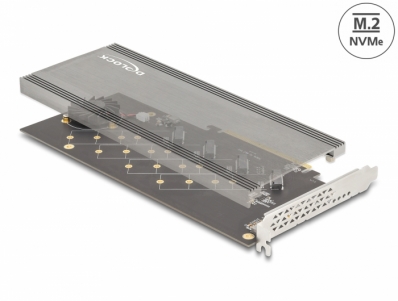

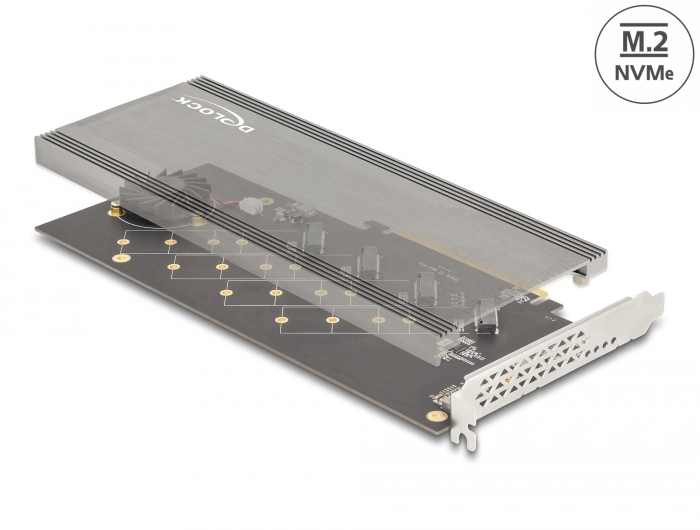

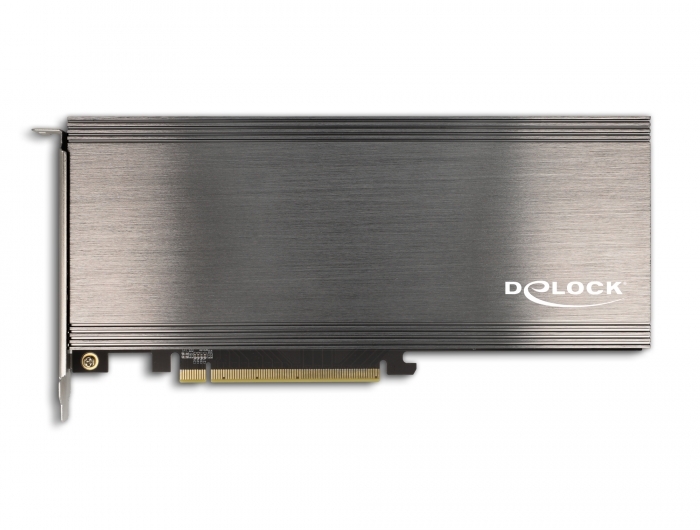

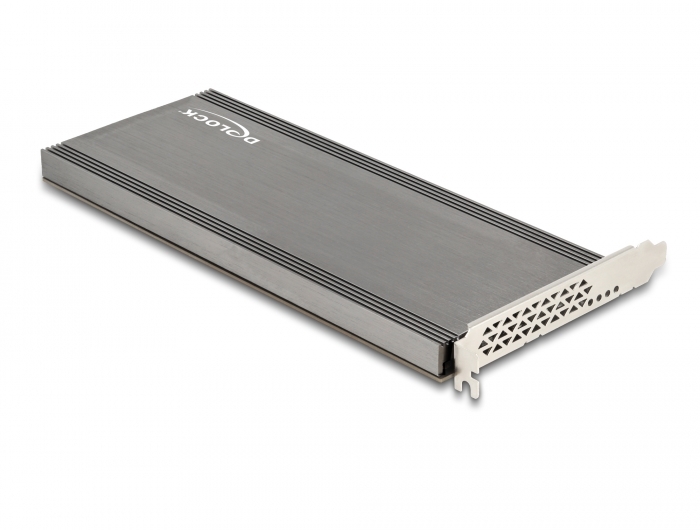

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink and the fan, sufficient cooling of the M.2 modules is guaranteed.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.
System requirements:
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Specification:
• Connectors:
  internal:
  4 x 67 pin M.2 key M slot
  1 x PCI Express x16, V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
  based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
  sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Dimensions heat sink (LxWxH): ca. 238 x 95 x 8 mm
• 1 x 40 mm fan for active cooling of the M.2 modules

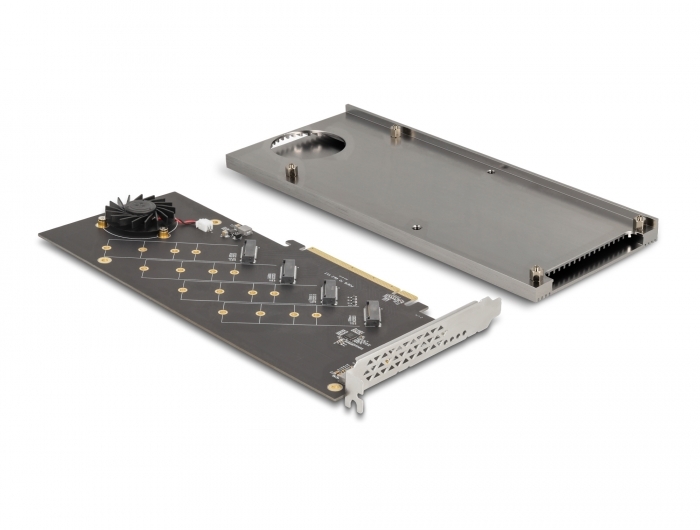

Package content:
• PCI Express card with fan
• Heat sink
• M.2 mounting material
• Screwdriver
• 4 x thermal conductive pad
• User manual
Data sheet:
http://www.delock.de/produkt/90079/pdf.html?sprache=en
