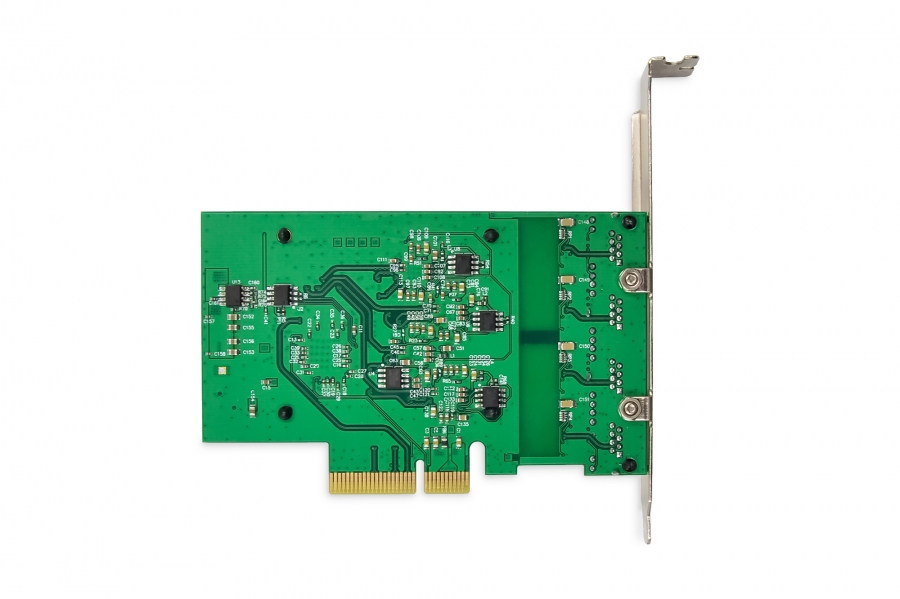

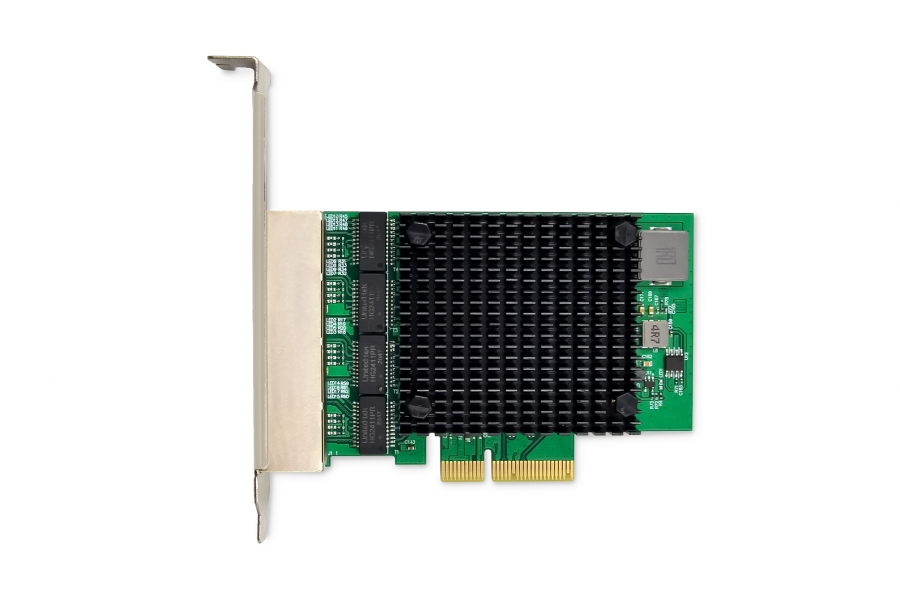

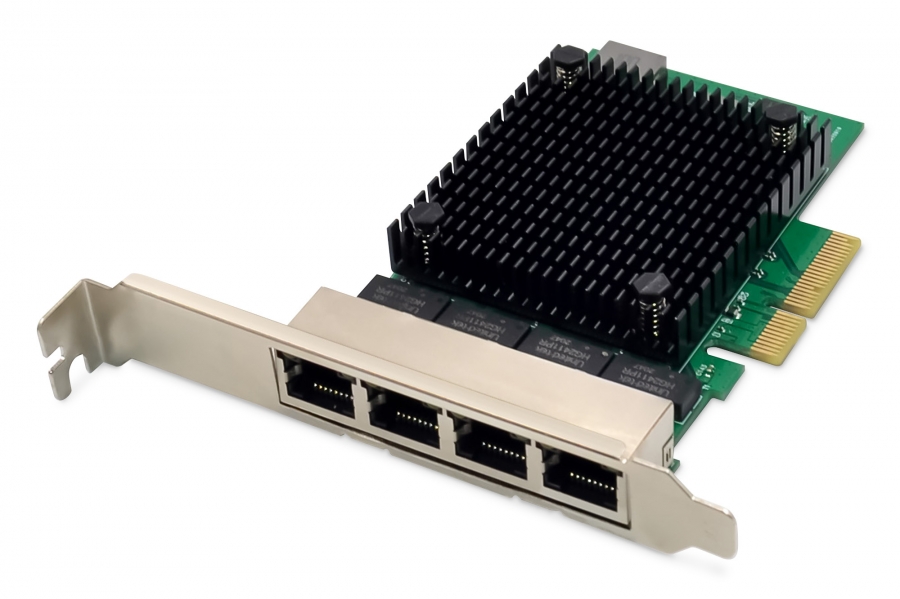

Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset

Digitus

DN-10136

New

4 Port RJ45 RTL8125B 2,5 GBits Server NIC

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

2-Lane PCI Express bus connecting with up to 10Gbps bus width
PCI Express interface: x4
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
Supports 2.5G and 1G Lite mode
Supports pair swap/polarity/skew correction
Crossover Detection& Auto-Correction

The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Support PCI Express Specification Revision 2.1
2-Lane PCI Express bus connecting with up to 10Gbps bus width
PCI Express interface: x4
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
Supports 2.5G and 1G Lite mode
Auto-Negotiation with Extended Next Page capability(XNP)
Supports pair swap/polarity/skew correction
Crossover Detection& Auto-Correction
Supports 1-Lane 2.5/5Gbps PCI Express Bus
Supports hardware ECC(Error correction code)function
Supports hardware CRC(Cyclic Redundancy Check)function
Supports PCI MSI (Message Signaled Interrupt)and MSI-X
Transmit/Receive on-chip buffer support
Supports ECMA-393 ProxZzzy Standard for sleeping hosts
Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
Supports IEEE802.1Qav credit-based shaper algorithm
Supports IEEE802.1P Layer 2 Priority encoding
Supports IEEE802.1Q VLan tagging
Supports IEEE802.1ad Double VLAN
Supports IEEE802.3az (Energy Efficient Ethernet)
Supports IEEE802.3bz(2.5GBase-T)
Supports full duplex flow control(IEEE802.3x)
Supports jumbo frame to 16K bytes
Supports Virtual Machine Queue(VMQ)
Supports quad core Receive –Side Scaling(RSS)
Supports Protocol Offload (ARP&NS)
Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS
Chipset: RTL8125B+ASM1806

Package content:
1 x PCIe Quad-Port 2.5G network adapter
1 x User’s Manual
1 x CD
1 x Low profile bracket

Platums(cm)15.5
Grums(cm)3
Augstums(cm)22
Svars(kg)0.2435
Tilpums(cm3)1023
Izcelsmes valstsCN
