Delock PCI Express 4.0 x16 Card to 4 x internal U.2 NVMe SFF-8639 - Bifurcation (LxW: 288 x 122 mm)

DELOCK

90169

New

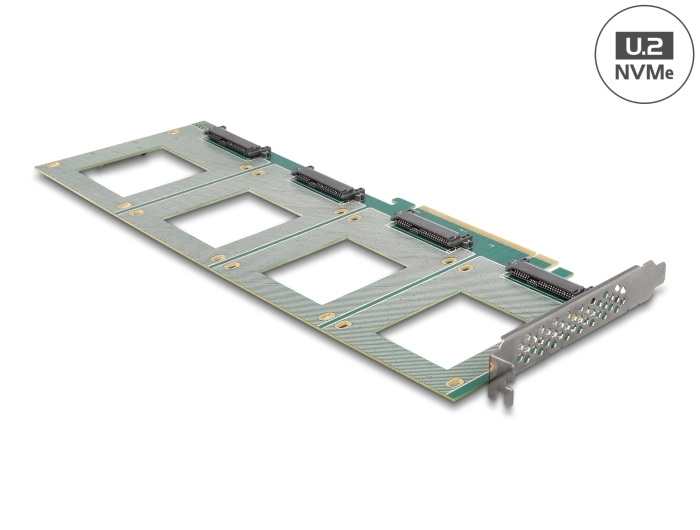

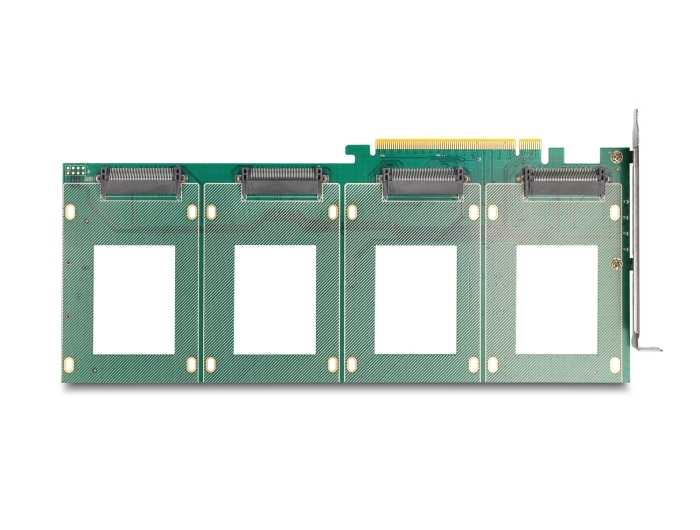

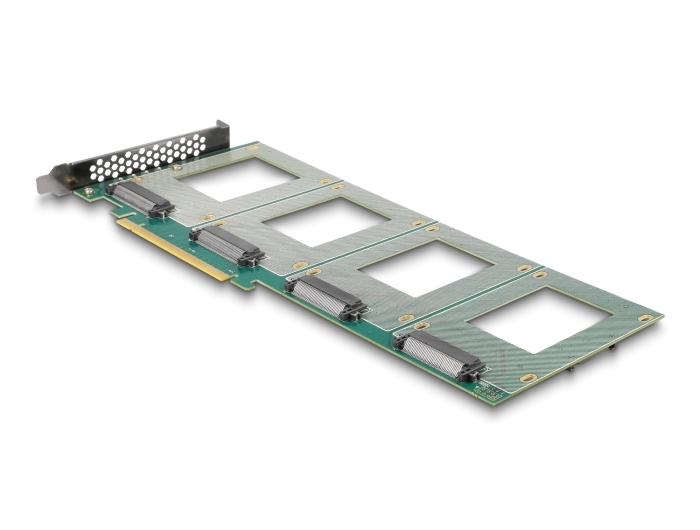

This PCI Express card by Delock expands the PC by four U.2 interfaces. It supports the connection of up to four U.2 SSDs in 2.5″ format.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first SFF-8639 port of the card can be used.
System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Specification:
• Connectors:
  internal:
  4 x U.2 SFF-8639 female
  1 x PCI Express x16, V4.0
  1 x SATA 15 pin plug (optional for power supply)
• Supports NVM Express (NVMe)
• 4 x LED indicator for power and activity
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• 16 x mounting holes
Package content:
• PCI Express card

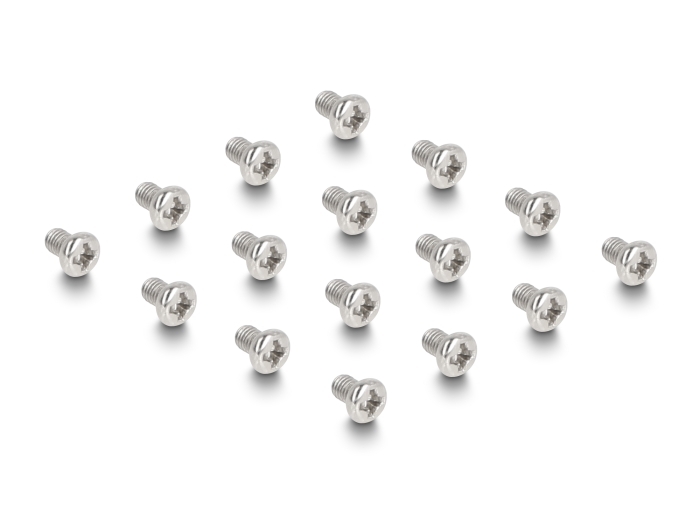

• 16 x screw
• User manual
Data sheet:
http://www.delock.de/produkt/90169/pdf.html?sprache=en
