New

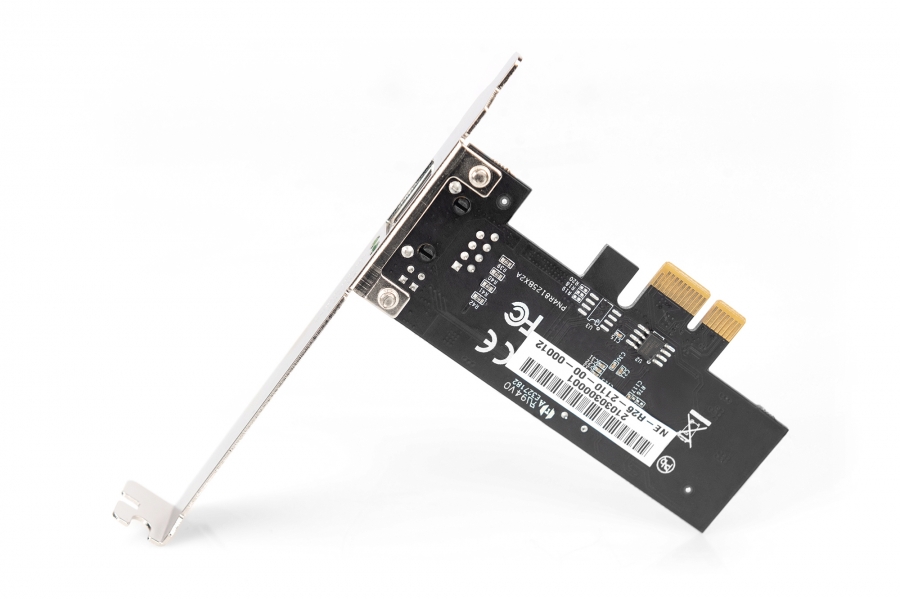

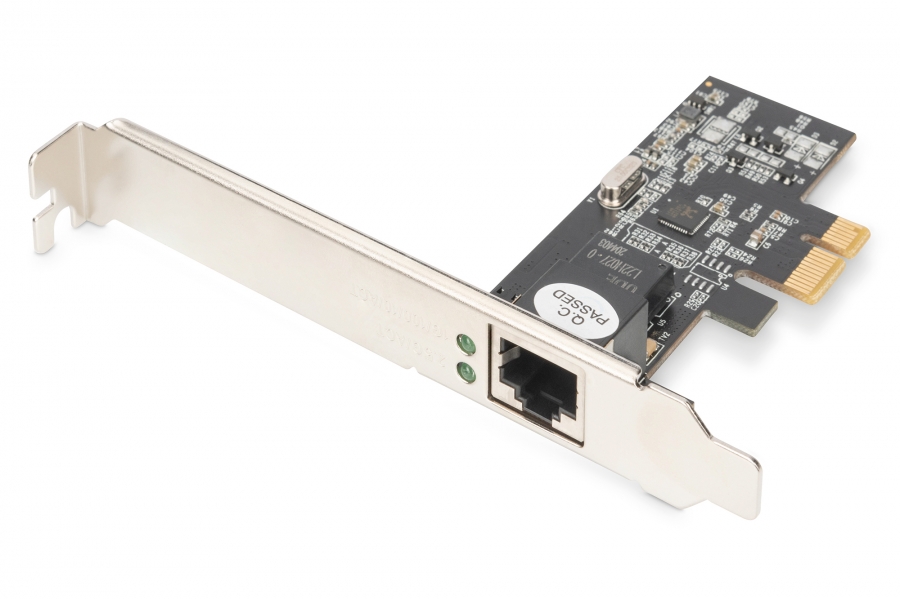

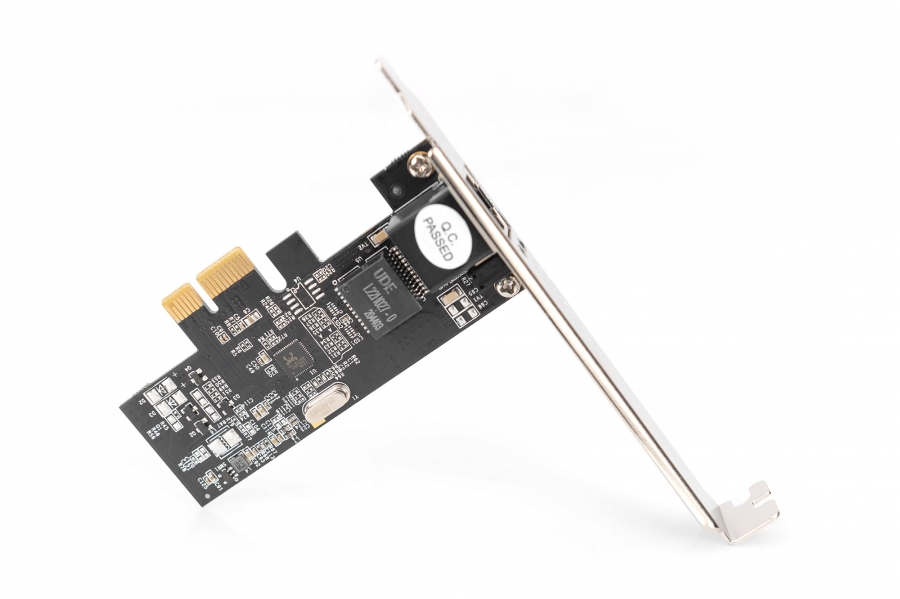

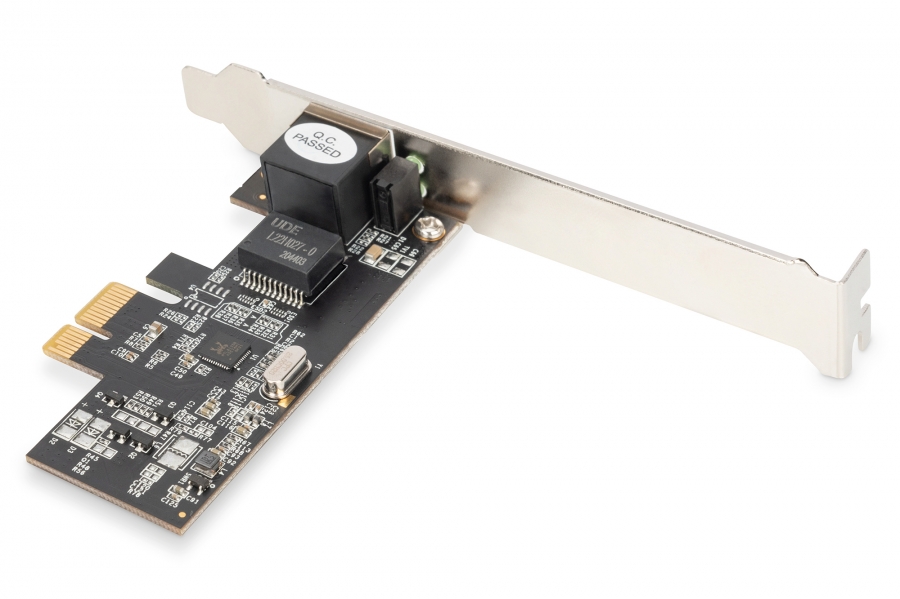

Digitus Gigabit Ethernet PCI Express Network Card 2.5G (4-Speed)

Reference DN-10135

Condition: New

More info

2,5 Gigabit Ethernet PCI Express Card 2.5G Ethernet NIC (CHIPSET:RTL8125B)

Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot

Gigabit data transmission with up to 2500 Mbps (2.5G)
Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
Ideal for streaming and gaming applications with high data rates
Supports IEEE802.3x full-duplex flow control
Supports IEEE802.1q VLAN tagging
Supports Wake-on-LAN
Additional low-profile slot bracket for use in narrow housings

This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.

Connection: 1 x Gigabit LAN (RJ45)
Supports 10/100/1000/2500 Mbps networks with automatic recognition
Conforms with IEEE802.3, IEEE802.3u & IEEE802.3ab specification
Supports IEEE802.3x full-duplex flow control
Chipset: Realtek RTL8125B - 2500Base-T Ethernet Controller
Supports auto MDI/MDIX crossover
Supports auto MDI/MDIX crossover
Compatible with PCI Express Specification 2.1
Supports Wake-on-LAN (WOL)
Supports IEEE802.1q VLAN tagging

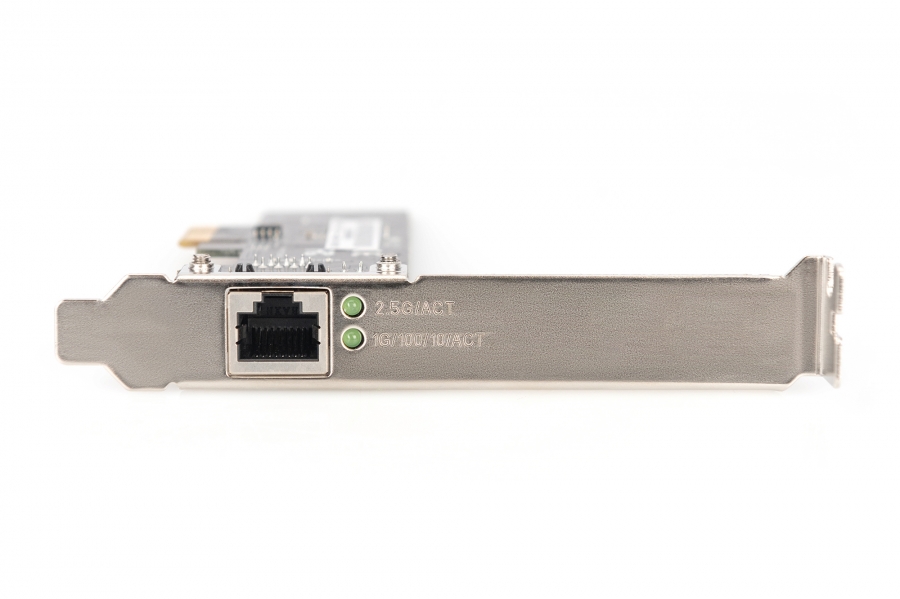

LED operating display: Active / data traffic / 2.5G data traffic
Supported operating systems: Windows 7/8/10 (32/64Bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and higher
Operating temperature: 5 °C to +50 °C
Operating humidity: 20% - 80%
Dimensions (WxDxH): 12 x 9.8 x 2.2 cm
Weight: 35.2 g

Package content:
1 x Gigabit Ethernet PCI Express Network Card 2.5G
1 x Low-profile slot bracket
1 x QIG
