Digitus Dual Gigabit Ethernet Mini PCI Express Network Card

Reference DN-10134

Condition: New

More info

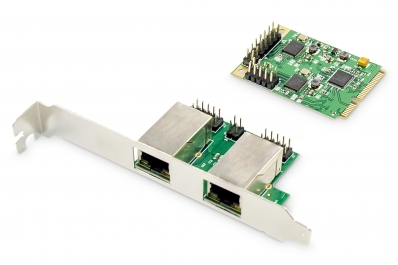

2-port Gigabit Ethernet mini PCI Express Card single lane, low profile bracket, Realtek chipset

Fast gigabit network connection with up to 2 x 1000 Mbps bandwidth for your PCI express slot

Gigabit data transmission with up to 2 x 1000 Mbps
Supports network standards: IEEE802.3, 802.3u, and 802.3ab
Supports IEEE802.3x full-duplex flow control
Supports IEEE802.1q VLAN tagging
Suitable for full and half-sized slot brackets

This mini PCIe dual gigabit network card from DIGITUS® offers you the highest performance for network applications with your 10/100/1000 BASE-T ethernet controller. Equipped with two LAN interfaces (RJ45), it fulfills the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet. IEEE802.3x full-duplex flow control is also supported, as well as VLAN tagging. The card can be used for slots at full or half installation height. Corresponding slot brackets are included in delivery.

Connectors: 2 x Gigabit LAN (RJ45)
Supports 10/100/1,000 Mbps networks with automatic recognition and configuration
Compatible with the following network standards: IEEE802.3, 802.3 u, and 802.3ab
Supports IEEE802.3x full-duplex flow control
Chipset: Realtek / RTL8111F / 1182e
Compatible with slots outlets at full or half installation height
1000 Base-T ethernet controller
Compatible with PCI Express Specification 1.1
Compatible with PCIe MINI Card Electromechanical Specification Revision 1.2
Single-lane (1x) PCI express with up to 2.5 Gbps capacity
Supports IEEE802.1q VLAN tagging
Supports jumbo frames up to 9 Kb
Automatic crossover recognition and correction
Supports Wake-on-LAN, Remote wake-up, Power down / Link down power saving
Compatible with Windows 10, 8, 7 (32/64Bit) and backwards compatible with Windows server 2003, 2008, 2012
Compatible with Linux, DOS, MacOS® 10.4 or higher
Plug and Play

Package content:
1 x Mini PCIe Gigabit Network Adapter Main Card
1 x Mini PCIe Gigabit Network Adapter Daughter Card
2 x 10-Pin Network Cable
1 x 4-Pin LED cable
1 x Installation CD
1 x half-sized slot bracket
1 x Quick start guide
