Delock Riser Card PCI Express x1 > x16 with 60 cm USB cable

DELOCK

41426

New

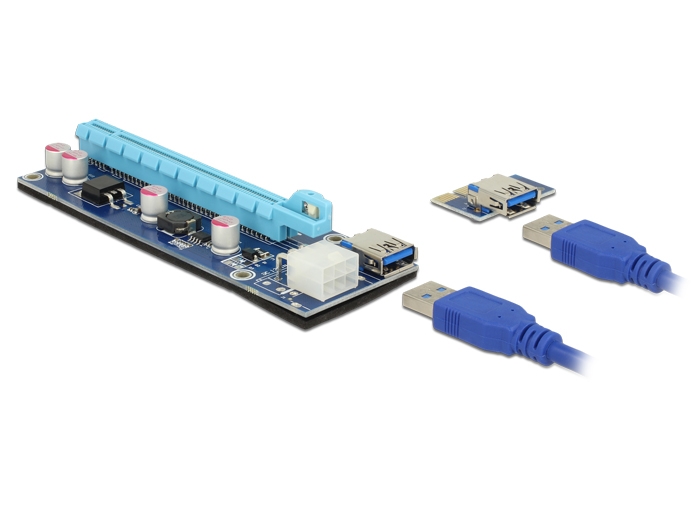

The PCI Express riser card by Delock can be plugged into any PCI Express x1 slot on the motherboard. Then the x16 PCI Express slot can be mounted in a different position in the case. This allows a graphics card to be operated in each PCIe slot of a motherboard, even if the graphics card is wider than a single slot. By using several riser cards, several graphics cards can be operated simultaneously on one motherboard, e.g. for mining crypto currencies such as Bitcoin, Ethereum or Zcash.
System requirements:
• PC with one free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with a free SATA power connector
Specification:
• Connectors:
  Motherboard side:
    1 x PCI Express x1
    1 x USB 3.0 Type-A female
  Riser side:
    1 x PCI Express x16
    1 x USB 3.0 Type-A female
    1 x 6 pin PCIe power female
• Data transfer rate up to 800 MB/s
• 4 x FP solid capacitors, ensures secure power supply of the graphics card
• 4 x mounting holes on the riser card
• Bottom side with isolating, antislip pad

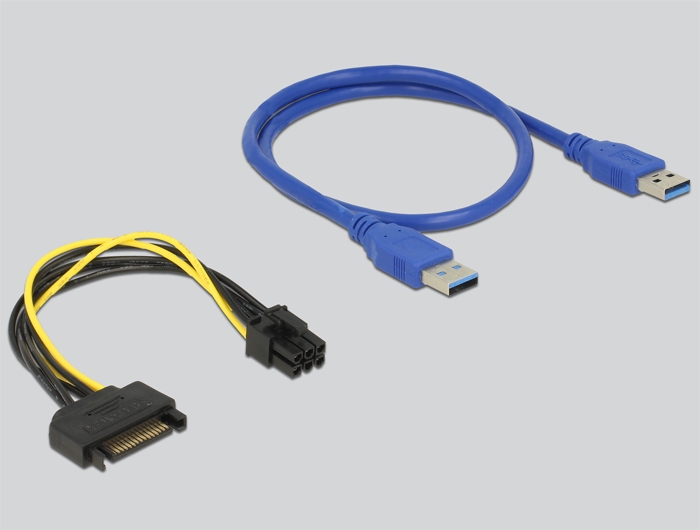

• Cable data:
  1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)
  1 x power cable 6 pin to SATA ca. 20 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 128.25 x 43.50 x 21.20 mm
• OS independent, no driver installation necessary
Package content:
• PCIe to USB riser card
• USB to PCIe riser card
• USB 3.0 cable
• Power cable
Data sheet:
http://www.delock.de/produkt/41426/pdf.html?sprache=en
