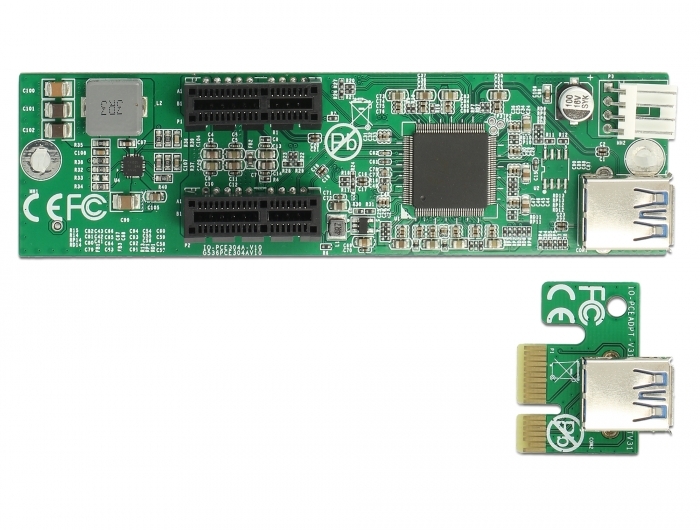

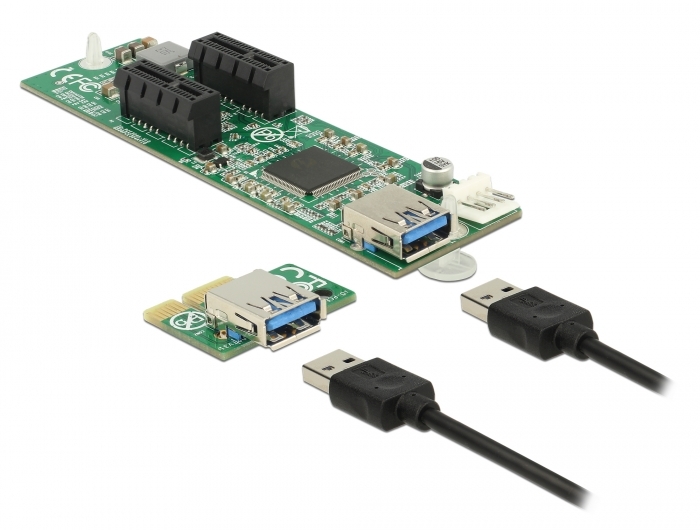

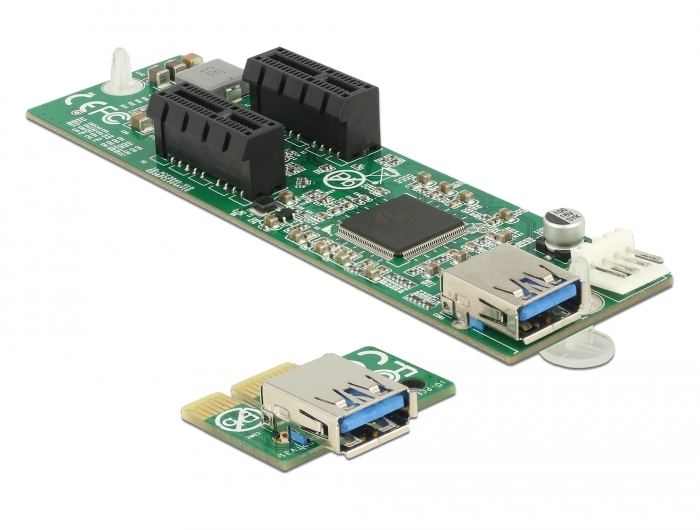

Delock Riser Card PCI Express x1 > 2 x PCIe x1 with 30 cm USB cable

DELOCK

41433

New

The PCI Express riser card by Delock can be plugged into any PCI Express x1 slot on the motherboard. The PCI Express board can be mounted in a different position in the case. This allows up to two PCIe cards to be operated in each PCIe slot of a motherboard.
System requirements:
• Linux Kernel 2.6.38 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with a free Molex power connector

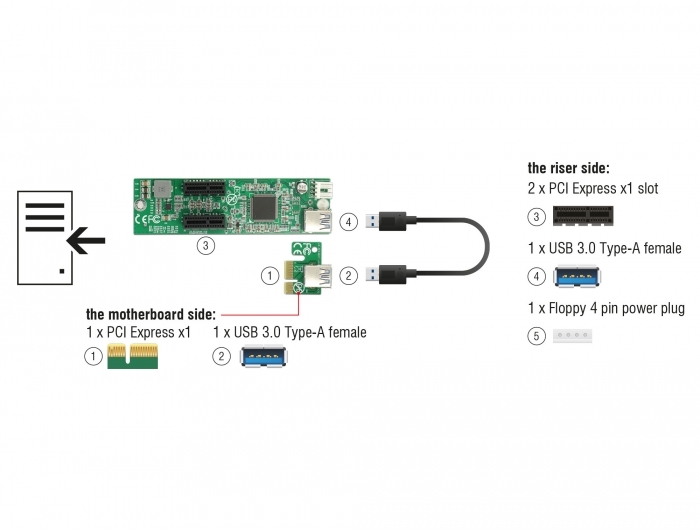

Specification:
• Connectors:
  Motherboard side:
  1 x PCI Express x1
  1 x USB 3.0 Type-A female
  Riser side:
  2 x PCI Express x1 slot
  1 x USB 3.0 Type-A female
  1 x Floppy 4 pin power plug
• Chipset: Pericom PI7C9X2G

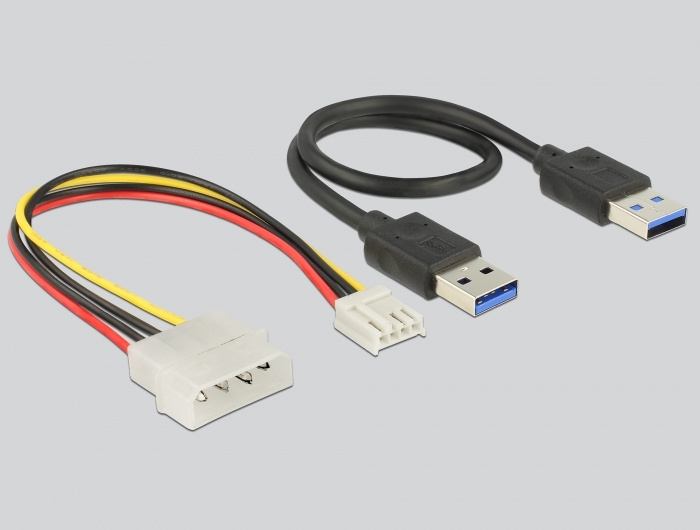

• Cable data:
  1 x riser cable USB 3.0 Type-A male to male ca. 30 cm (incl. connectors)
  1 x power cable Floppy to Molex ca. 15 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 120 x 34 x 15 mm
Package content:
• PCIe to USB riser card
• USB to PCIe riser card
• 1 x USB 3.0 cable
• 1 x Power cable
Data sheet:
http://www.delock.de/produkt/41433/pdf.html?sprache=en
