Delock Riser Card PCI Express x1 > 4 x PCIe x16 with 60 cm USB cable

DELOCK

41427

New

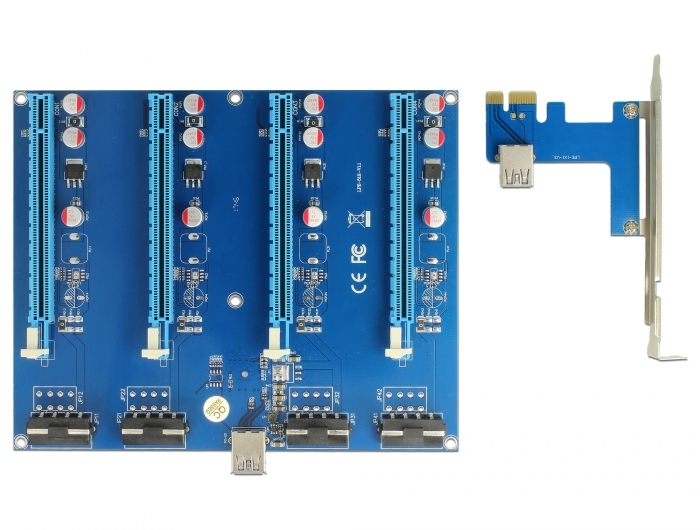

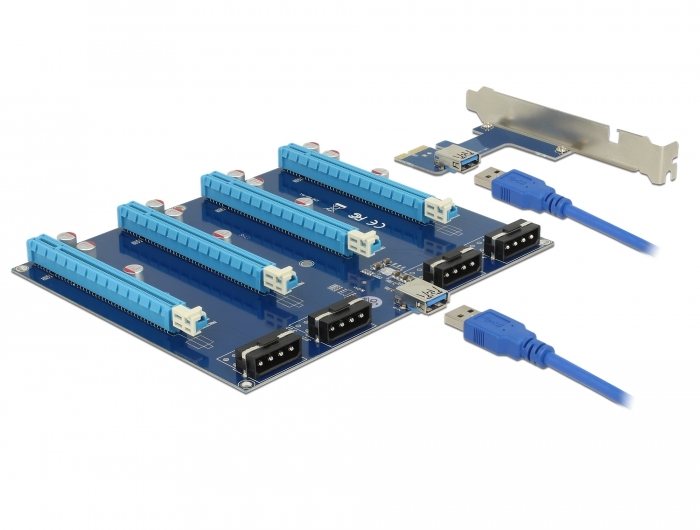

The PCI Express riser card by Delock can be plugged into any PCI Express x1 slot on the motherboard. The PCI Express board can be mounted in a different position in the case. This allows up to four graphics cards to be operated in each PCIe slot of a motherboard, even if the graphics cards are wider than a single slot. By using several riser cards, several graphics cards can be operated simultaneously on one motherboard, e.g. for mining crypto currencies such as Bitcoin, Ethereum or Zcash.
System requirements:
• PC with one free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with free SATA power connectors
Specification:
• Connectors:
  Motherboard side:
  1 x PCI Express x1
  1 x USB 3.0 Type-A female
  Riser side:
  4 x PCI Express x16 slot
  1 x USB 3.0 Type-A female
  4 x Molex 4 pin power plug
• Chipset: Asmedia ASM1184e
• Data transfer rate up to 800 MB/s
• FP solid capacitors, ensures secure power supply of the graphics card
• 6 x mounting holes on the riser card

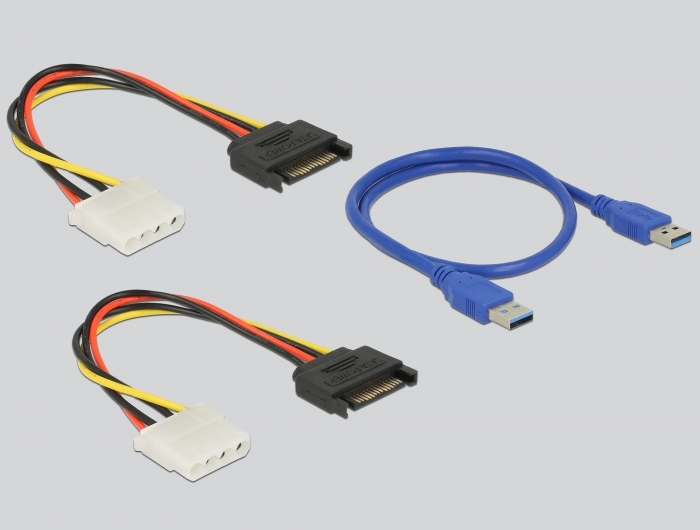

• Cable data:
  1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)
  2 x power cable 6 pin to SATA ca. 20 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 175 x 142 x 14 mm
Package content:
• PCIe to USB riser card
• USB to PCIe riser card
• 1 x USB 3.0 cable
• 2 x Power cable
Data sheet:
http://www.delock.de/produkt/41427/pdf.html?sprache=en
