Delock Riser Card PCI Express x1 to 3 x PCIe x1 with 50 cm USB cable

Reference 41442

Condition: New

More info

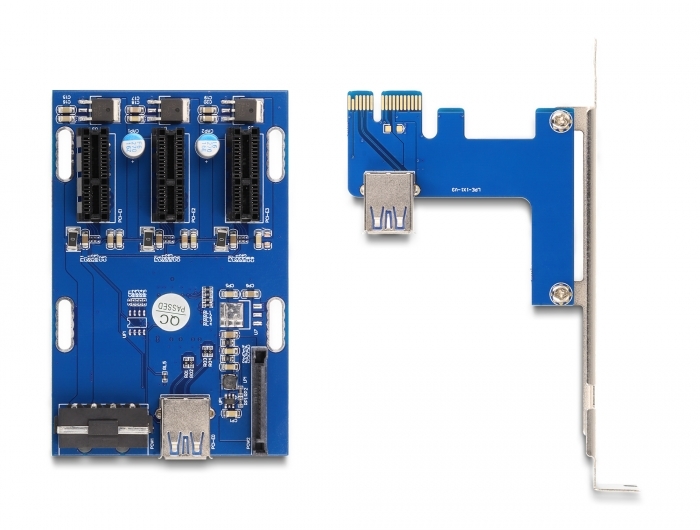

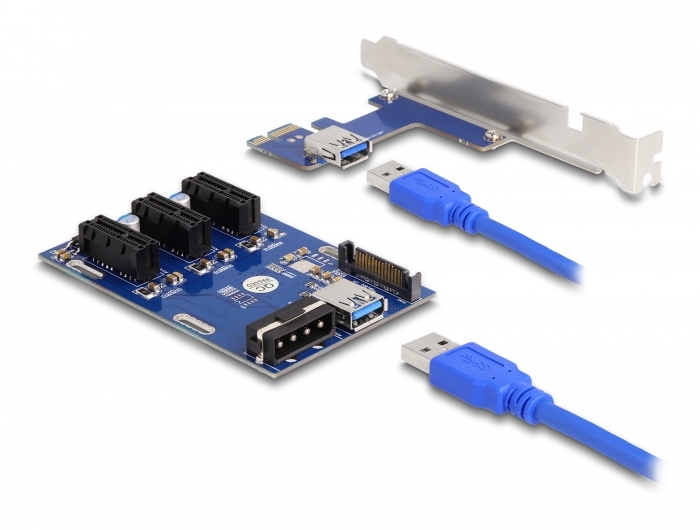

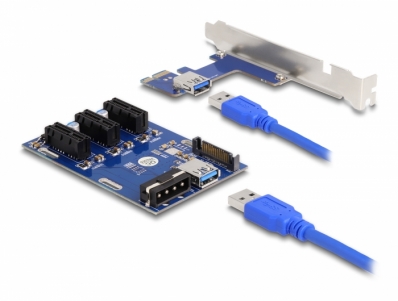

The PCI Express riser card by Delock can be plugged into any PCI Express x1 slot on the motherboard. The PCI Express board can be mounted in a different position in the case. This allows up to three PCIe cards to be operated in each PCIe slot of a motherboard.

Crypto mining and resource sharing
The computing power of up to three graphics cards can be used on one PCI Express x1 slot.
In this way, the computing power of the graphics cards for research projects such as Folding@Home can be shared via a cloud. Furthermore, the riser card can also be used for mining crypto currencies.

Note
The package content includes a USB 3.0 riser cable with a length of 50 cm. No USB signals are transmitted through this cable, therefore it is not possible to exchange it with a different or longer cable.

Special features
Three PCIe x1 graphics cards can be used with a PCIe x1 slot.

System requirements:
• PC with one free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with a free SATA power connector or
• Power supply with a free 4 pin power connector

Specification:
• Connectors:
  Motherboard side:
  1 x PCI Express x1
  1 x USB 3.0 Type-A female
  Riser side:
  3 x PCI Express x1 slot
  1 x USB 3.0 Type-A female
  1 x Molex 4 pin power plug
  1 x SATA 15 pin power plug

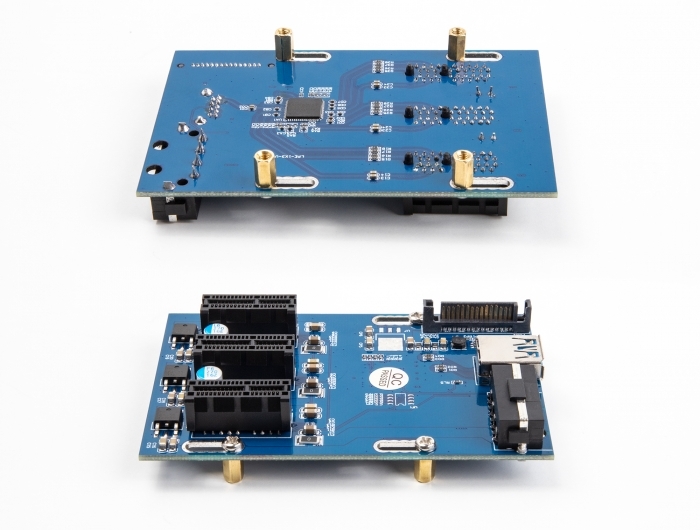

• Chipset: Asmedia ASM1184e
• Data transfer rate up to 800 MB/s
• FP solid capacitors, ensure secure power supply of the graphics card
• 4 x mounting holes on the riser card
• Cable data:
  1 x riser cable USB 3.0 Type-A male to male ca. 50 cm (incl. connectors)
  1 x power cable 4 pin to SATA ca. 15 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 99 x 64 x 15 mm

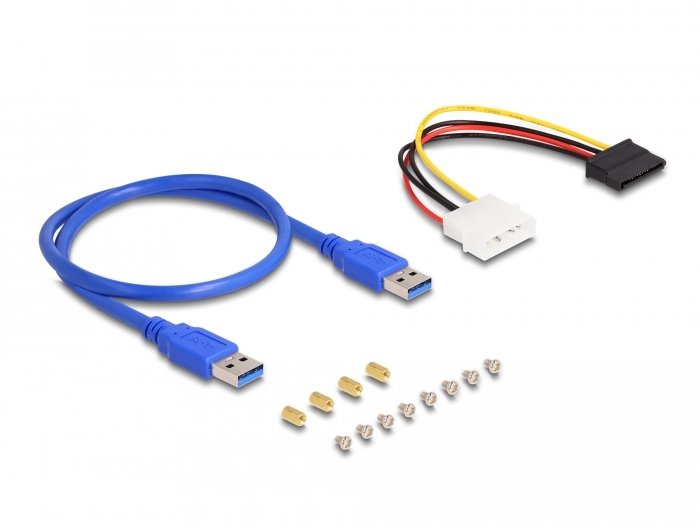

Package content:
• PCIe to USB riser card
• USB to PCIe riser card
• 1 x USB 3.0 cable
• 1 x Power cable
• Mounting material
• User manual
