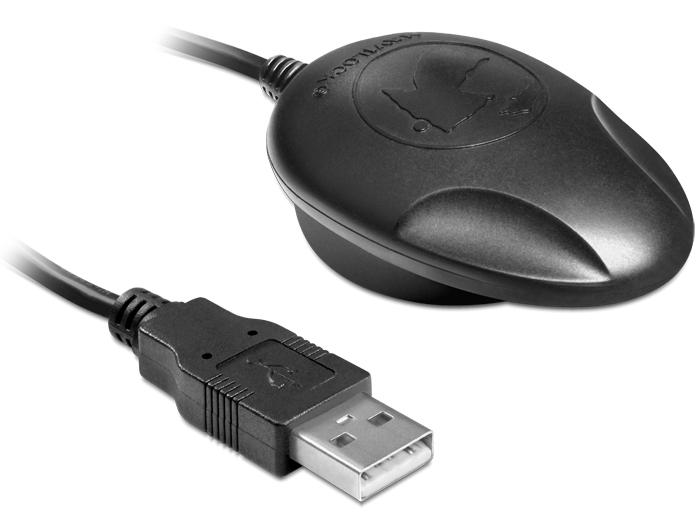

Navilock NL-442U USB 2.0 GPS Receiver SiRFstarIV™

NAVILOCK

61994

New

The USB 2.0 GPS Receiver based on SiRFstarIV™ chipset has a built-in antenna for high sensitivity. You can use this GPS Receiver with a notebook and a suitable routing software for navigation.

More details

Description:
The USB 2.0 GPS Receiver based on SiRFstarIV™ chipset has a built-in antenna for high sensitivity. You can use this GPS Receiver with a notebook and a suitable routing software for navigation.

Specification:
• SiRFstarIV™ GSD4e chipset
• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz
• Accepts the signals of up to 48 satellites at the same time
• Supports WAAS, EGNOS and MSAS
• Supports NMEA 0183 V3.0 protocols: GGA, GSA, GSV, RMC,
VTG, GLL v2.2 (VTG and GLL are optional)
• USB specification 2.0
• 4800 baud rate
• Update rate: 1 Hz
• Datum: WGS-84
• Sensibility max. –163 dBm
• IPX6 protection class
• Magnatic, non-slip on the bottom
• LED-indicator for GPS-status
• Operating temperature: -20 °C to +65 °C
• Cold start in about 35 sec.
• Hot start in about 1 sec.
• Positioning accuracy: < 2.5 m 2D RMS SBAS Enable
• Dimension (LxWxH): 65 mm x 45 mm x 22 mm

System requirements:
• Windows 2000/XP/Vista/7/8/8.1/10,
Linux ab Kernel 2.6,
Mac OS 10.6.x, 10.7.x
• PC or Notebook with a free USB port

Package content:
• USB 2.0 Receiver
• Driver CD
• User manual on CD ROM
