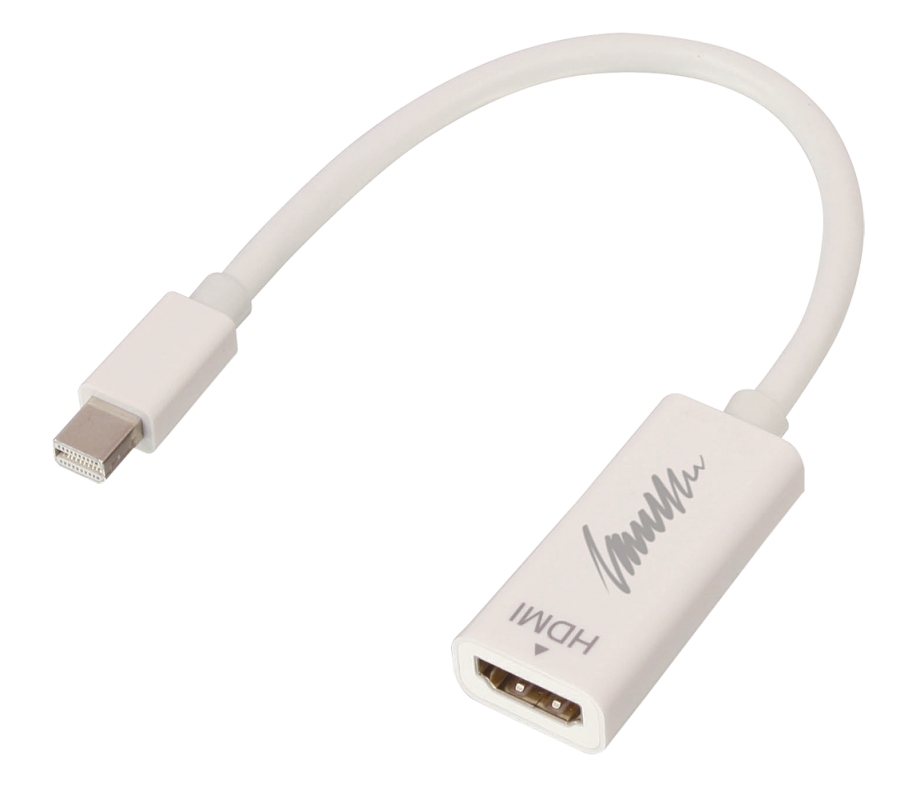

Mini DisplayPort to HDMI Converter

LIN41719

New

Specifications

  • AV Interface: DisplayPort to HDMI
  • Interface Standard: DisplayPort 1.1, HDMI 1.4
  • Supported Bandwidth: 10.8Gbps
  • Maximum Input Resolution: 3840x2160@30Hz
  • Maximum  Output Resolution: 3840x2160@30Hz
  • Chipset: PS8402A
  • HDCP Support: HDCP 1.4
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: Mini DisplayPort (Male)
  • Output: HDMI Type A (Female)



Physical properties

  • Dimensions (approx.) WxDxH:
    • 20.8x51x11.5mm (0.82x2.01x0.45in) / HDMI
    • 10.9x24.5x8mm (0.43x0.96x0.31in)
  • Cable Length: 150mm (5.91in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5mm (0.2in)
  • Minimum Bend Radius: 50mm (1.97in)
  • Net Weight: 0.026kg (0.06lb)
  • Operating Temperature: 0°C - 80°C (32°F - 176°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.03kg (0.07lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Mini DisplayPort to HDMI Converter



Purchasing Information

  • No.: 41719
  • EAN: 4002888417198
