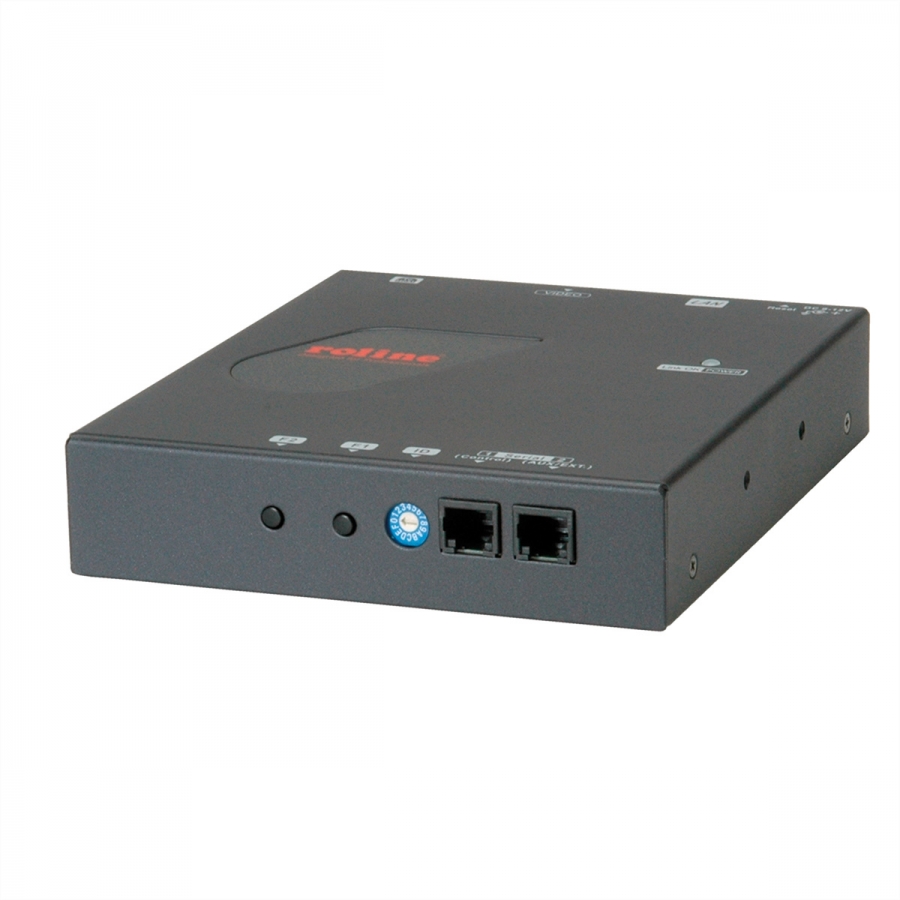

ROLINE KVM Extender over Gigabit Ethernet, DVI, USB, Transmitter (TX)

ROLINE

14.01.3044

New

• Supports DVI with high resolution video up to 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
• Supports USB PC or KVM switch
• Ideal for professional video applications
• 8 selections on the DIP rotary switch available for pairing

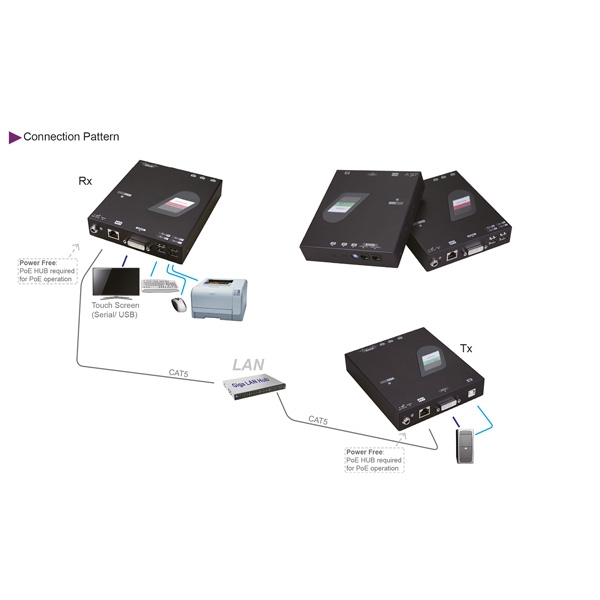

• Up to 4 pairings can be transmitted simultaneously over the Gigabit Ethernet switch (max. 3 stages)
• Stable, metal housing
• Power supply via an external power supply
• Correspondent receiver unit: 14.01.3045

Technical specifications:
• Max resolution (nominal): 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
• Dimensions: 31 x 131 x 150 mm
• Power supply: 12V DC; 1.5A

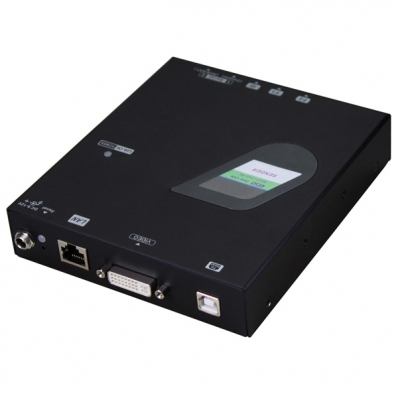

• Connectors: DVI Female, USB B connector female, RJ-45 socket (LAN)

ManufacturerROLINE
Manufacturer Item No.14.01.3044
Product groupSwitch boxes KVM
Product typeKVM-Extender, DVI
Scope of deliveryTransmitter unit, 1x power supply, patchcable, manual
Dimensions (HxWxD)31 x 131 x 150 mm
Weight710 g
Power supply outputDC 12V; 1,5A

Transmitters / Amplifiers
