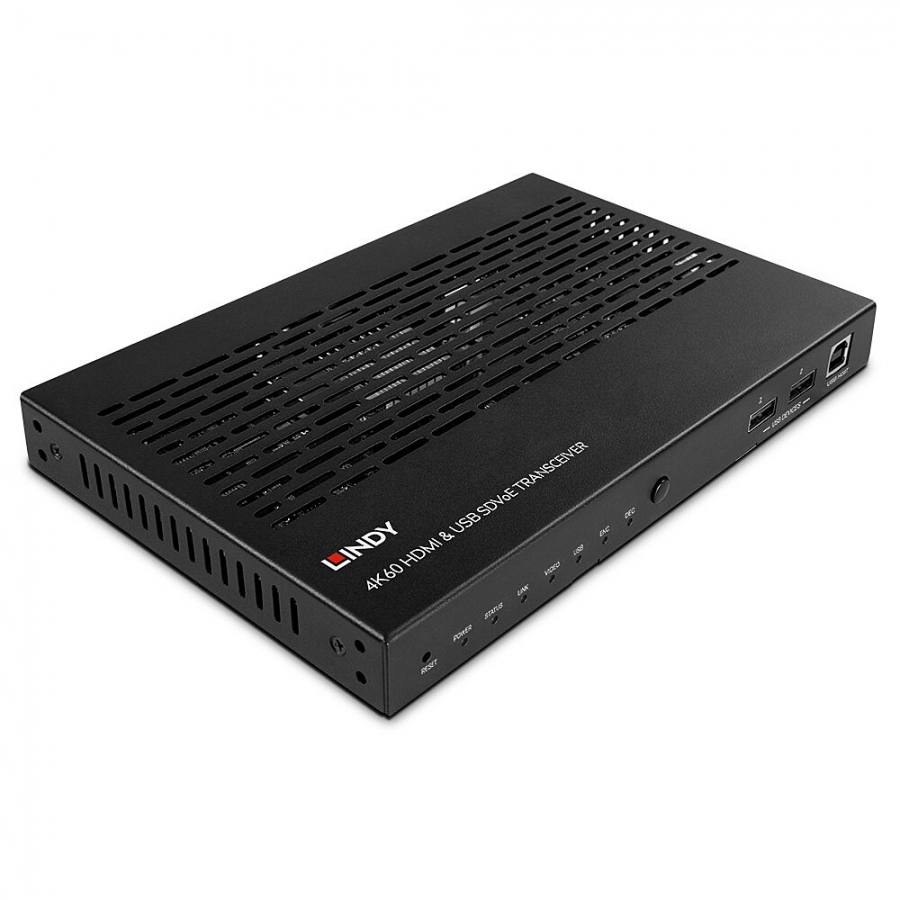

Lindy 4K60 HDMI & USB SDVoE Extender - Transceiver

Lindy

LIN38365

New

Specifications



  • AV Interface: HDMI
  • Console Interface: USB
  • Interfaces Standard: HDMI 2.0b, USB 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 100m (393.7ft) (Point to Point)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2/1.4
  • Supported Audio:
    • HDMI Audio Pass-Though
    • 3.5mm up to 2.0Ch
  • Separate Audio Ports: 3.5mm
  • Transmission Protocol: IP
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: API support, ENC/DEC modes



Connectors



  • Input Ports:
    • HDMI Type A (Female)
    • USB Type B (Female)
    • 3.5mm Audio (Female)
    • 3.5mm IR (Female)
  • Output Ports:
    • HDMI Type A (Female)
    • 2x USB Type A (Female)
    • 3.5mm Audio (Female)
    • 3.5mm IR (Female)
  • Bidirectonal Ports: RS-232 4-Pin TerminalBlock
  • Network Ports:
    • 10G BaseT RJ-45 (Female)
    • 10G SFP+ fiber slot
    • 1G LAN RJ-45 (Female)
  • Power: 5.5/2.1mm DC socket



Physical Properties



  • Dimensions (approx.) WxDxH: 204x134x21.5mm (8.03x5.28x0.85in)
  • Housing Material: Metal
  • Net Weight: 0.7kg (1.54lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 2.5A
  • Colour: Black



Miscellaneous



  • Packaging Type: Carton box
  • Packaging Dimensions: 245x185x75mm (9.65x5.28x2.95in)
  • Gross Weight: 1.183kg (2.61lb)
  • Warranty: 2
  • Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents



  • SDVoE Transceiver
  • Multi-country Power Supply (UK, EU, US & AUS)
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4-Pin Terminal Block
  • 2 x Mounting Ears & 4 x Screws
  • Quick Installation Guide



Purchasing Information



  • No.: 38365
  • EAN: 4002888383653
