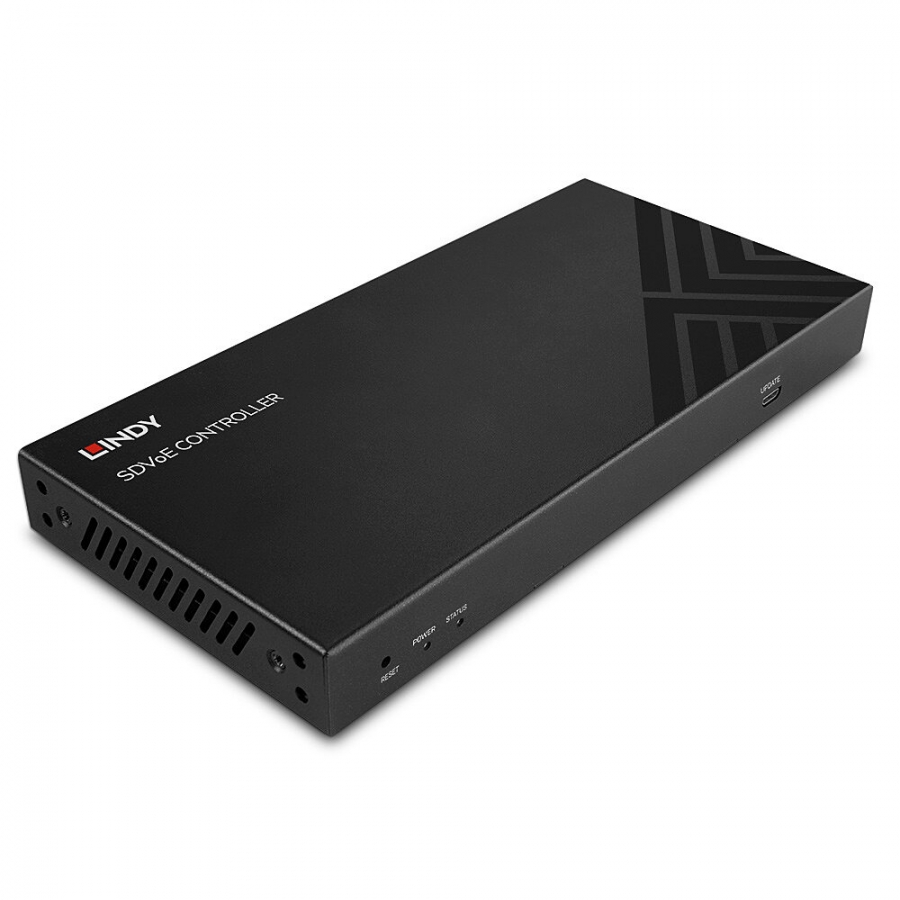

Lindy SDVoE Controller

Lindy

LIN38364

New

Specifications



  • AV Interface: -
  • Console Interface: -
  • Interfaces Standard: -
  • Supported Bandwidth: 1Gbps
  • Maximum Distance: 100m (393.7ft) (Point to Point)
  • Maximum Resolution: -
  • HDCP Support: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • Transmission Protocol: IP
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: API support, 4 channel GPIO control ports (5V/12V optional level)



Connectors



  • Other Interfaces:
    • 1 x RJ45 Gigabit POE
    • 1 x RJ45 Gigabit,2 x RS232 (3 pin terminal block)
    • Trigger Contacts (6 pin terminal block)
    • 2 x 3.5mm (Female) for bidirectional IR
    • 1 x Micro USB
  • Power: 5.5/2.1mm DC socket



Physical Properties



  • Dimensions (approx.) WxDxH: 204x98.5x21.5mm (8.03x3.88x0.85in)
  • Housing Material: Metal
  • Net Weight: 0.509kg (1.12lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 1A
  • Colour: Black



Miscellaneous



  • Packaging Type: Carton box
  • Packaging Dimensions: 255x157x77mm (10.04x6.18x3.03in)
  • Gross Weight: 0.509kg (1.12lb)
  • Warranty: 2
  • Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents



  • SDVoE Controller
  • Multi-country Powe Supply (UK, EU, US & AUS)
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 2 x 3-Pin Terminal Block
  • 6-Pin Terminal Block
  • 2 x Mounting Ears & 4 x Screws
  • Quick Installation Guide



Purchasing Information



  • No.: 38364
  • EAN: 4002888383646
