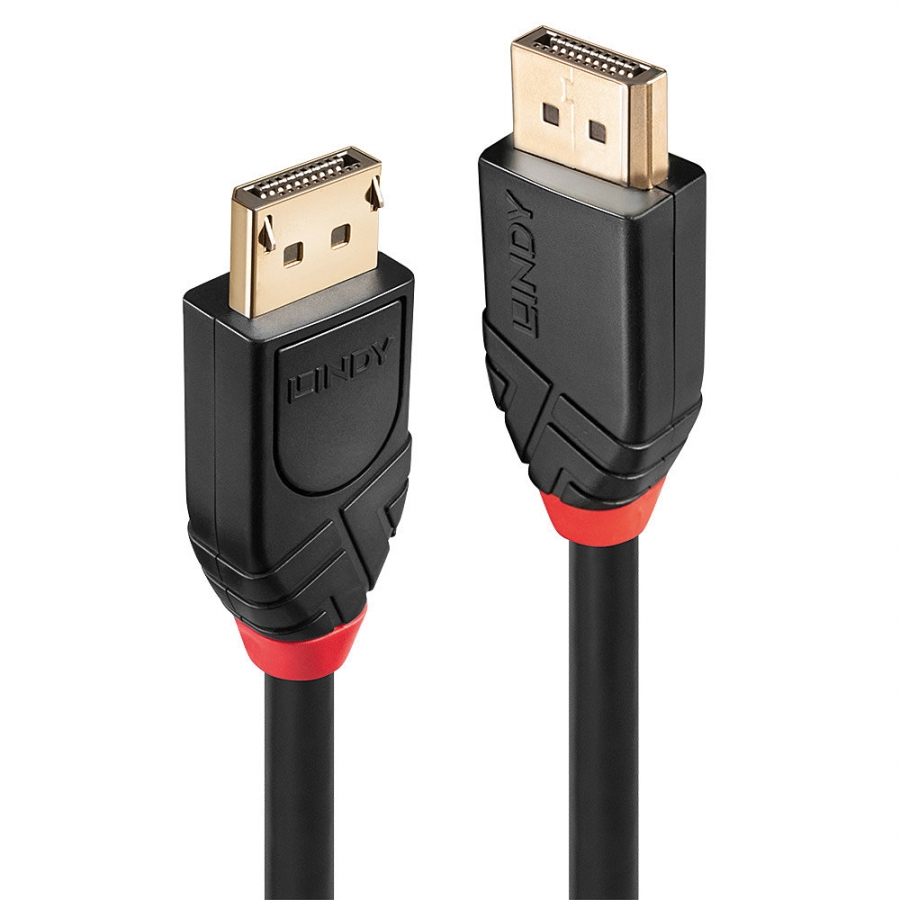

20m Active DisplayPort 1.2 Cable

LIN41081

New

Connectors

  • Connector A: DisplayPort (Male)
  • Connector B: DisplayPort (Male)
  • Housing Material: ABS
  • Connector Plating: 24K Gold Plated
  • Pin Construction: Copper
  • Pin Plating: 24K Gold Plated
  • Dimensions (approx.) WxDxH: 19.7x38.9x12mm (0.78x1.53x0.47in)
  • Chipset Housing Dimensions (Length x Outer Diameter): 75x20mm (2.95x0.79in)



Cable Construction

  • Length: 20m (65.62ft)
  • Standard: DP 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.8mm (0.31in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 26AWG
  • Shielding: 75% Aluminium Mylar



Specifications

  • Supported Bandwidth: 21.6Gbps
  • Maximum Resolution:

3840x2160@60Hz 4:4:4 8bit

2560x1440@120Hz 4:2:2 8bit

  • Nominal Attenuation: -
  • Minimum Bend Radius: 90mm (3.54in)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 45°C (14°F - 113°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE,FCC, RoHS & REACH



Purchasing Information

  • No.: 41081
  • EAN: 4002888410816



This product is also available in other lengths

  • 41078 - 10m (32.81ft)
  • 41079 - 15m (49.21ft)
