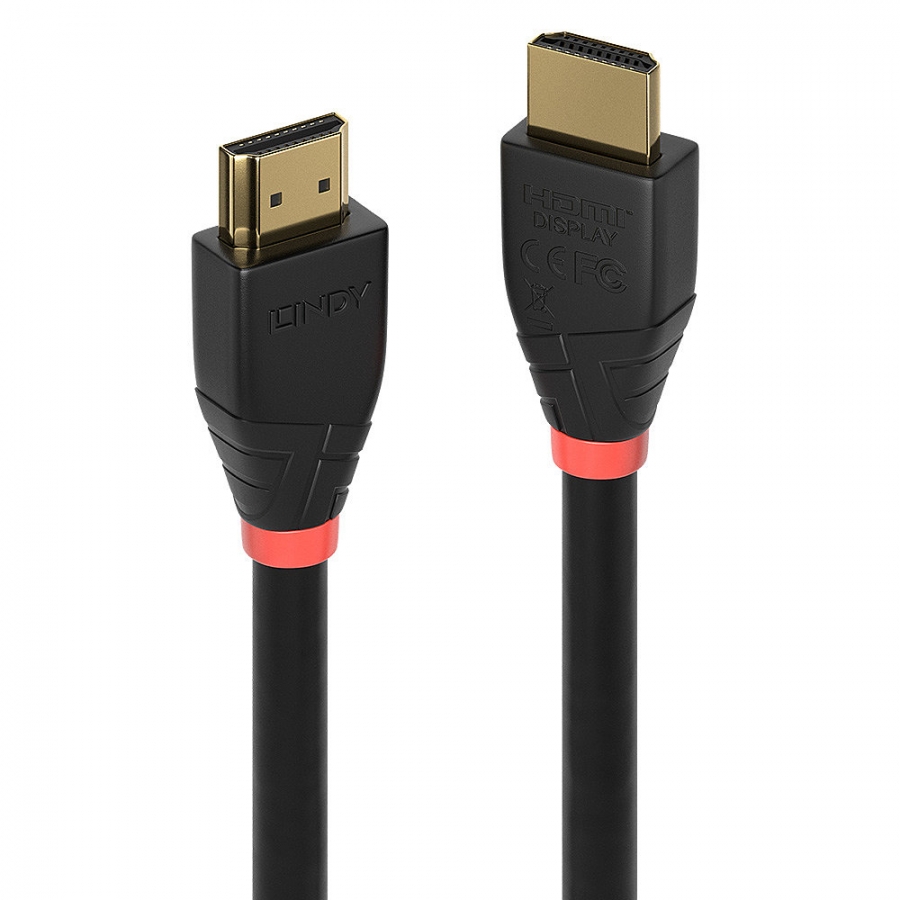

20m Active HDMI 18G Cable

LIN41073

New

Connectors

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold Flash
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 3µm
  • Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)



Cable Construction

  • Length: 20m (65.62ft)
  • Standard: HDMI 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 8.6mm (0.34in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%



Specifications

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • Nominal Attenuation:
    • 300KHz~825MHz  <5dB
    • 2.475GHz~4.125GHz 12dB-20dB
  • Minimum Bend Radius: 100mm (3.94in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & UL



Purchasing Information

  • No: 41073
  • EAN: 4002888410731



This product is also available in other lengths

  • 41071 - 10m (32.81ft)
  • 41072 - 15m (49.21ft)
  • 41073 - 20m (65.62ft)
  • 41074 - 25m (82.02ft)
  • 41075 - 30m (98.42ft)
