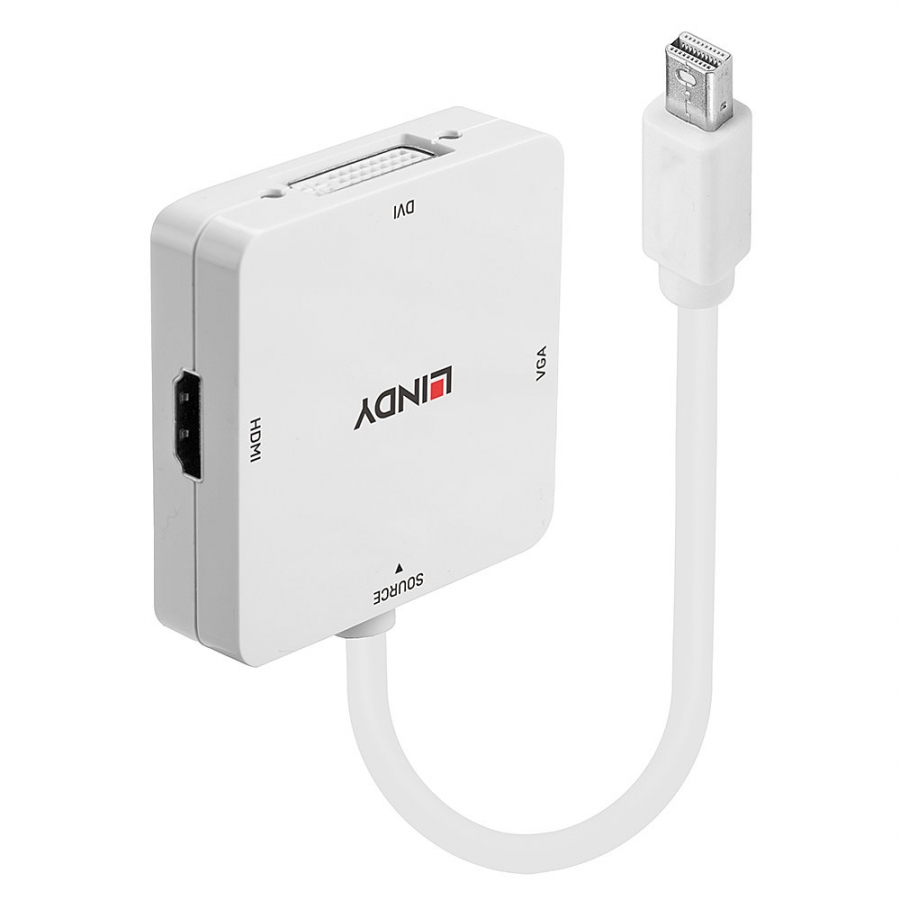

Mini DisplayPort to HDMI, DVI & VGA Converter

LIN41035

New

Specifications

  • AV Interface: DisplayPort to HDMI, VGA, DVI
  • Interface Standard: DisplayPort 1.1, HDMI 1.4, VGA, DVI-D
  • Supported Bandwidth: 10.8Gbps
  • Maximum Input Resolution: 3840x2160@30Hz
  • Maximum  Output Resolution:
    • HDMI: 3840x2160@30Hz
    • DVI: 1920x1200@60Hz
    • VGA: 1920x1200@60Hz
  • Chipset: Paradetech PS8339
  • HDCP Support: HDCP 1.4
  • Supported Audio: Pass-through for HDMI
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: Mini DisplayPort Male
  • Output:
    • HDMI Type A Female
    • VGA Female
    • DVI-D Female
  •

Physical properties

  • Dimensions (approx.) WxDxH:
    • 60x60x16,4mm (2.36x2.36x0.65in) / Housing
    • 10.9x24.5y8mm (0.43x0.96x0.31in)
  • Cable Length: 200mm (7.87in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5mm (0.2in)
  • Minimum Bend Radius: 50mm (1.97in)
  • Net Weight: 0.053kg (0.12lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.06kg (0.13lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Mini DisplayPort to HDMI 1.4, DVI & VGA Converter



Purchasing Information

  • No.: 41035
  • EAN: 4002888410359
