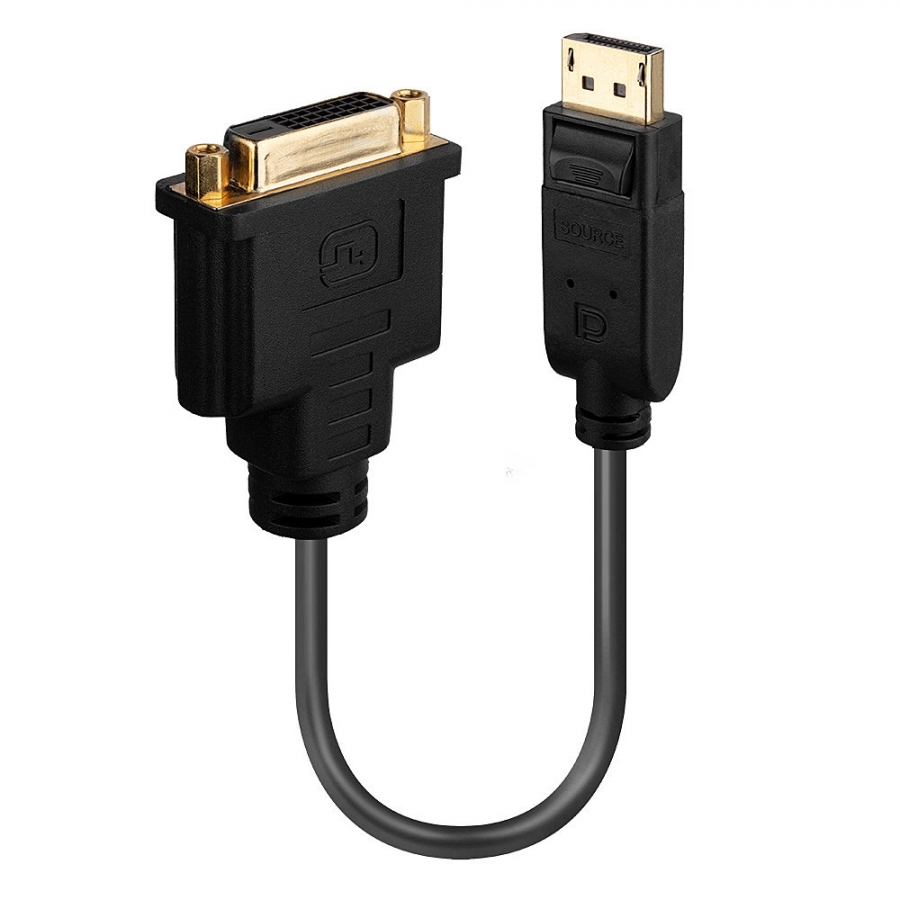

DisplayPort to DVI Converter

LIN41004

New

Specifications

  • AV Interface: DisplayPort to DVI
  • Interface Standard: DisplayPort 1.1 / DVI
  • Supported Bandwidth: 4.45Gbps
  • Maximum Input Resolution: 1920x1080@60Hz / 1920x1200@60Hz
  • Maximum  Output Resolution: 1920x1080@60Hz / 1920x1200@60Hz
  • Chipset: NXP 3361B
  • HDCP Support: HDCP 1.4
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: DisplayPort Male
  • Output: DVI-D Female (Single Link)



Physical properties

  • Dimensions (approx.) WxDxH:
    • 47.2x38.7x15.8mm (1.86x1.52x0.62in)
    • 20x36x11mm (0.79x1.42x0.43in)/DP
  • Cable Length: 150mm (5.91in)
  • Housing Material: PVC
  • Jacket Material: PVC
  • Jacket Diameter: 6.5mm (0.26in)
  • Minimum Bend Radius: 65mm (2.56in)
  • Net Weight: 0.053kg (0.12lb)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.062kg (0.14lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • DisplayPort to DVI Converter



Purchasing Information

  • No.: 41004
  • EAN: 4002888410045
