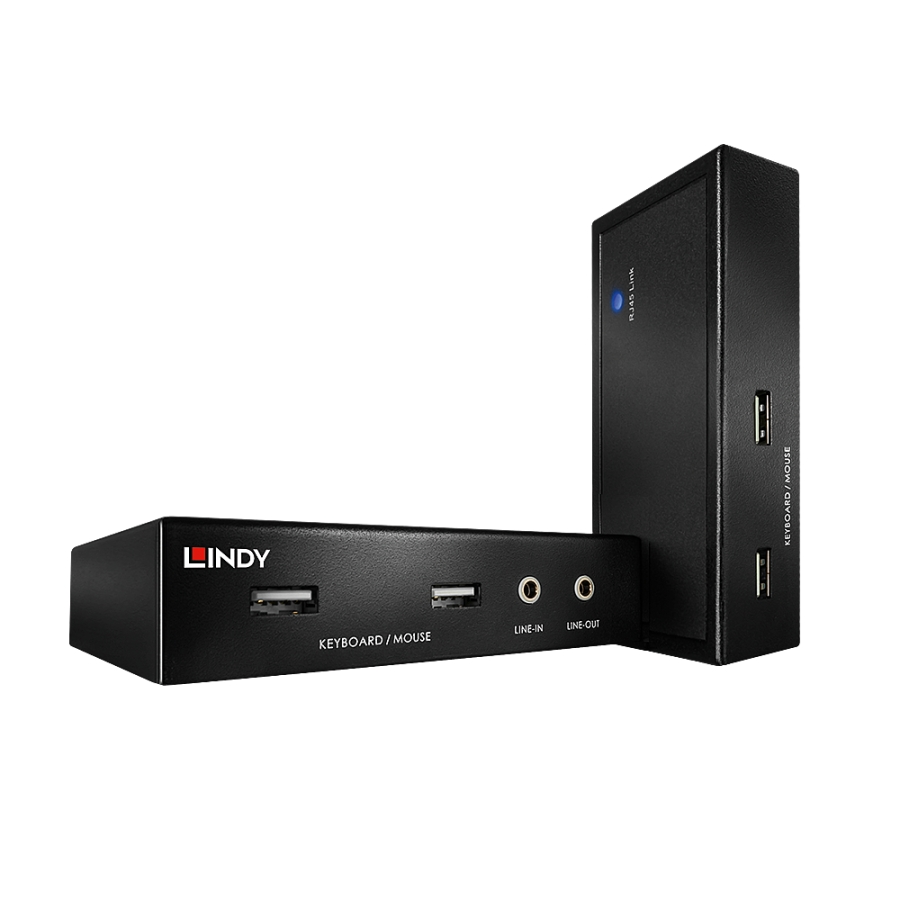

50m Cat.6 HDMI & USB KVM Extender

LIN39371

New

Specifications

  • AV Interface: HDMI
  • Console Interface: USB
  • Interfaces Standard: HDMI 1.4, USB (HID)
  • Supported Bandwidth: 4.95 Gbps
  • Maximum Distance: 50m (164.04ft)
  • Maximum Resolution: 1920x1080@60Hz
  • HDCP Support: 1.4
  • Supported Audio: Analog Stereo
  • Separate Audio Ports: 1 x 3.5mm (Female)
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.6 cable
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: -



Connectors

  • Transmitter KVM Interfaces: 2 x HDMI (Female), 2 x USB Type A (Female), USB Type B (Female), 2 x 3.5mm (Female)
  • Transmitter Extension Port: RJ45 (Female)
  • Receiver Consolle Interface: HDMI (Female), 2 x USB Type A (Female), 3.5mm (Female)
  • Receiver Extension Port: RJ45 (Female)
  • Bidirectonal Ports: -
  • Other Interfaces: -
  • Power: 5.5/2.5mm DC socket



Physical Properties

  • Dimensions WxDxH: 115x60x28mm (4.53x2.36x1.1in)
  • Housing Material: Metal
  • Net Weight: 0.32kg (0.71lb) per unit
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1.2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 260x170x65mm (10.24x6.69x2.56in)
  • Gross Weight: 1.4kg (3.09lb)
  • Warranty: 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Transmitter and Receiver
  • USB 2.0 A/B cable (approx. 1.8m (5.91ft) – for Transmitter)
  • 2 x Multi-Country Power Supply (EU, UK, US, AUS)
  • LINDY Manual



Purchasing Information

  • No.: 39371
  • EAN: 4002888393713
