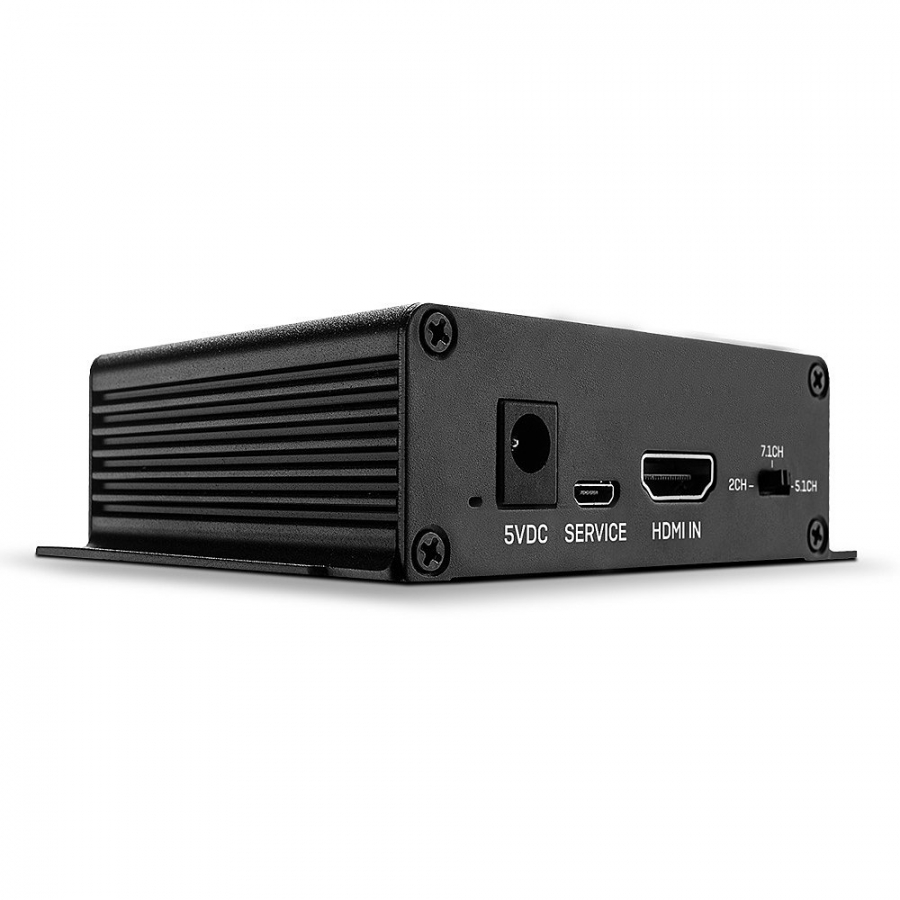

HDMI 18G Audio Extractor

LIN38361

New

Specifications

  • Video Interface: HDMI
  • Interface Standard: 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution:
    • 3840x2160@60Hz 4:4:4 8bit
    • 3840x2160@60Hz 4:2:2 12bit
  • HDCP Support: 2.2 / 1.4
  • Audio Interface:
    • SPDIF
    • Analogue L/R
    • Chipset: IT66321
  • Supported Audio:
    • HDMI (Pass-Through): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD
    • Optical: Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH
    • 3.5mm: Analogue Stereo 2CH
  • Maximum Supported Audio Sample Rate: 24-bit/192kHz
  • Input Impedance: 1K
  • Output Impedance: 10K
  • Output Voltage: 5V 1A
  • Frequency Response: <3db; 20h~20kh
  • Signal to Noise Ratio: 85db
  • Special Features: CEC Pass-through



Connectors

  • Input: HDMI Type A (Male)
  • Output:
  • HDMI Type A (Female)
  • SPDIF (Female)
  • Analogue L/R (Female)
  • USB Micro-B (Female)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 104.4x64x28.3mm (4.11x2.52x1.11in)
  • Housing Material: Metal
  • Net Weight: 0.118kg (0.26lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -5°C - 55°C (23°F - 131°F)
  • Humidity: 5 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 257x56x150mm (10.12x2.2x5.91in)
  • Gross Weight: 0.357kg (0.79lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • HDMI 18G Audio Extractor
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38361
  • EAN: 4002888383615
