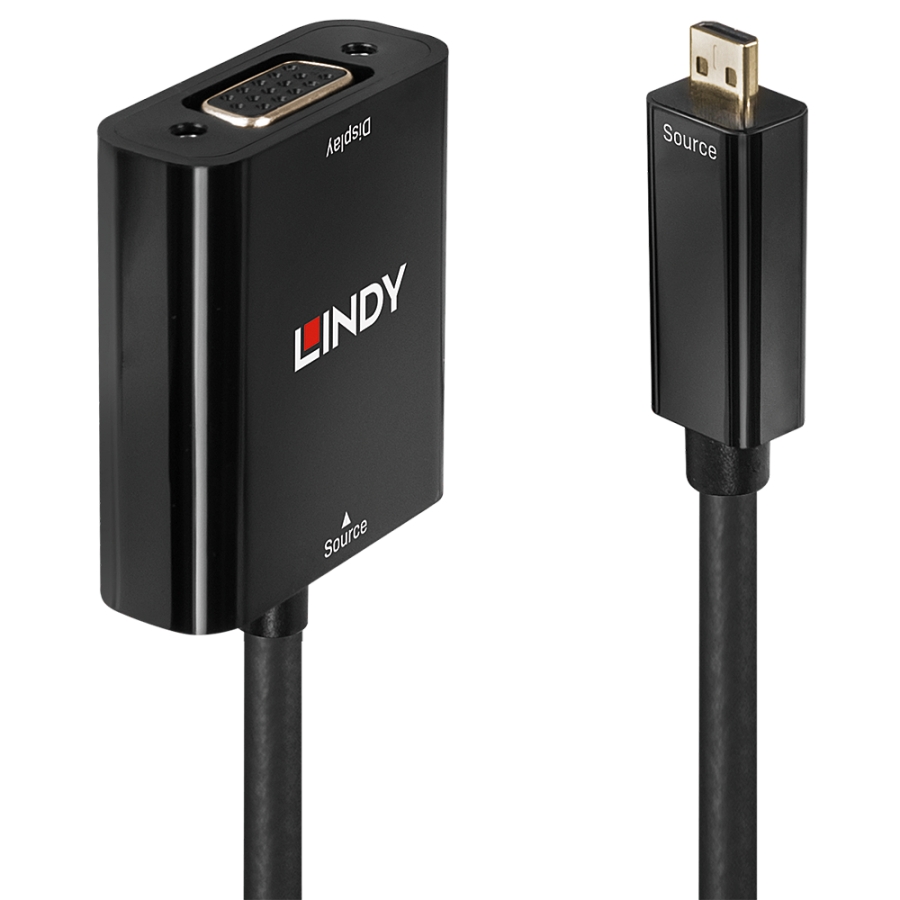

Micro HDMI to VGA Converter

Specifications

• AV Interface: HDMI to VGA
• Interface Standard: HDMI 1.3, VGA
• Supported Bandwidth: 180MHz
• Maximum Input Resolution: 1920x1200
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: Algoltek AG6200A
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: HDMI Type D Male
• Output: VGA Female

Physical properties

• Dimensions (approx.) WxDxH:
  • 37x42x14.5mm (1.46x1.65x0.57in)
  • 25x11x8mm (0.98x0.43x0.31in)
• Cable Length: 100mm (3.94in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: -
• Net Weight: 0.024kg (0.05lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 95% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.034kg (0.07lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Micro HDMI to VGA Converter

Purchasing Information

• No.: 38293
• EAN: 4002888382939
