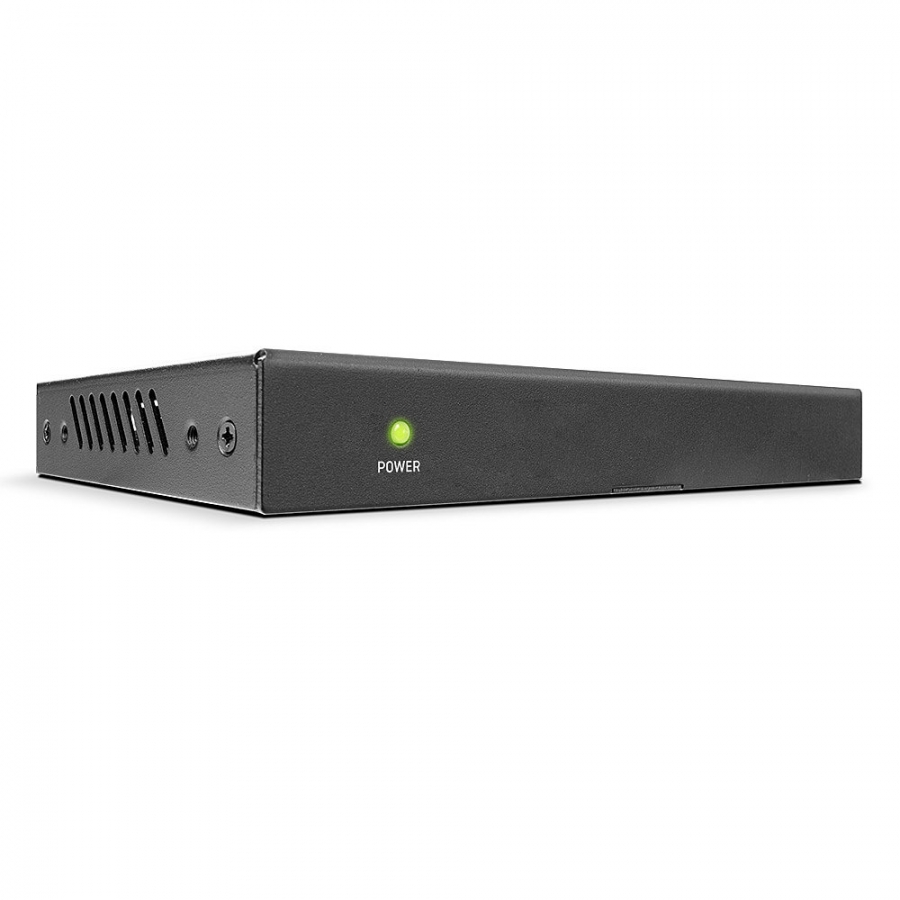

70m Cat.6 HDMI 18G, IR & RS-232 HDBaseT Receiver with PoC, Receiver

LIN38214

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 70m (229.66ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
  • HDCP Support: 2.2
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: 30-60kHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232 Pass-through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010
  • Special Features:

Bi-directional IR

PoC (Power over Cat.6)



Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ-45 (Female), IR (Female)
  • Receiver Output: HDMI Type A (Female), IR (Female)
  • Bi-directional Ports: IR (Female)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 90x157x20mm (3.54x6.18x0.79in)
  • Housing Material: Metal
  • Net Weight: 0.345kg (0.76lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in)
  • Gross Weight: 0.847kg (1.87lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • HDMI Receiver
  • Multi-country Power Supply (UK, EU, US & AUS)
  • IR Emitter Cable
  • IR Receiver Cable
  • Lindy Manual



Purchasing Information

  • No.: 38214
  • EAN: 4002888382137
