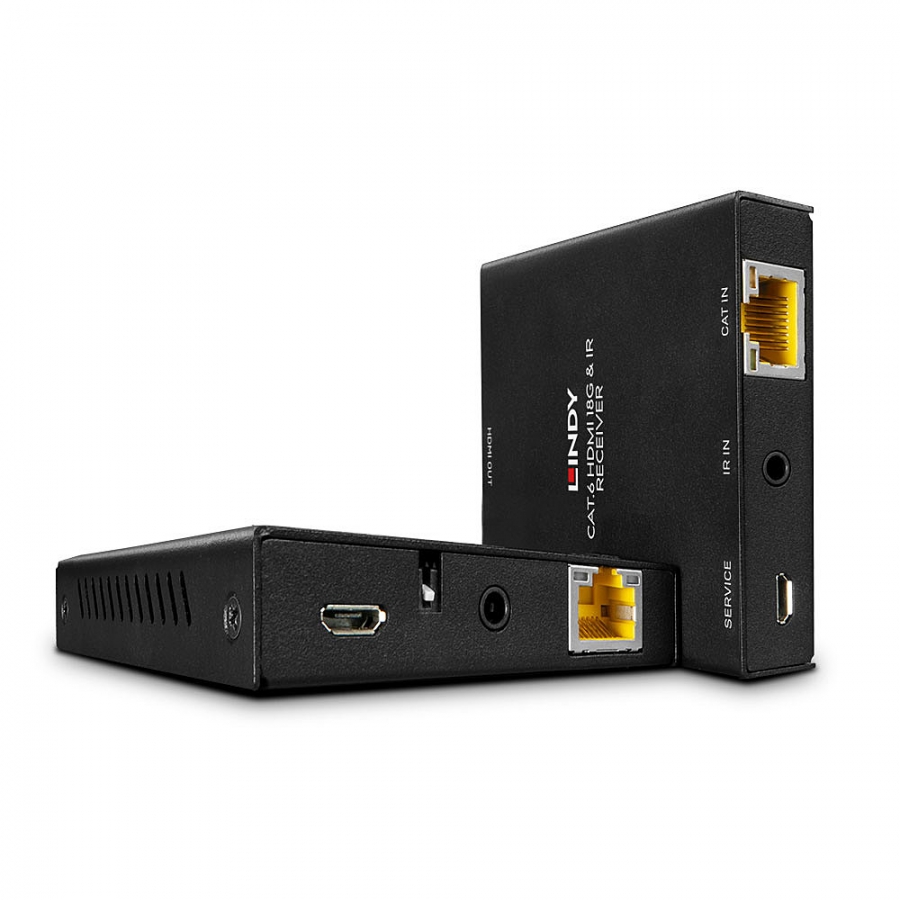

50m Cat.6 HDMI 18G & IR Extender with PoC & Loop Out

LIN38205

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 50m (164.04ft) – Cat.6/7, 30m (98.42ft)– Cat.5e
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Up to 7.1 (Pass-through)
  • Separate Audio Ports: -
  • IR Support: 20-60kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.5e/6 or higher
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: Transmitter: SIL9396 / Receiver: SIL9630
  • Special Features:
    • PoC (Power over Cat.6)
    • IR Pass-through
    • Loop Out
  •

Connectors

  • Transmitter Input: HDMI Type A 19pin (Female), Micro-USB (Female), DC12V Power
  • Transmitter Output: HDMI Type A 19pin (Female), RJ45 (Female), IR (Female)
  • Receiver Input: RJ45 (Female), IR (Female), Micro-USB (Female)
  • Receiver Ouput: HDMI Type A 19pin (Female)
  • Bidirectonal Ports: -
  • Power: 5.5/2.1mm barrel size



Physical Properties

  • Dimensions (approx.) WxDxH:
    • Transmitter: 70x97x15mm (2.76x3.82x0.59in)
    • Receiver: 70x97x15mm (2.76x3.82x0.59in)
  • Housing Material: Metal
  • Net Weight:
    • Transmitter: 0.156kg (0.34lb)
    • Receiver: 0.151kg (0.33lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 – 90% RH (no condensation)
  • Power Requirements: 12VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
  • Gross Weight: 0.605kg (1.33lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Content

  • Transmitter
  • Receiver
  • 12VDC 1A Multi-country Power Supply (UK, EU, US & AUS)
  • IR Transmitter
  • IR Receiver
  • Lindy Manual



Purchasing Information

  • No.: 38205
  • EAN: 4002888383509
