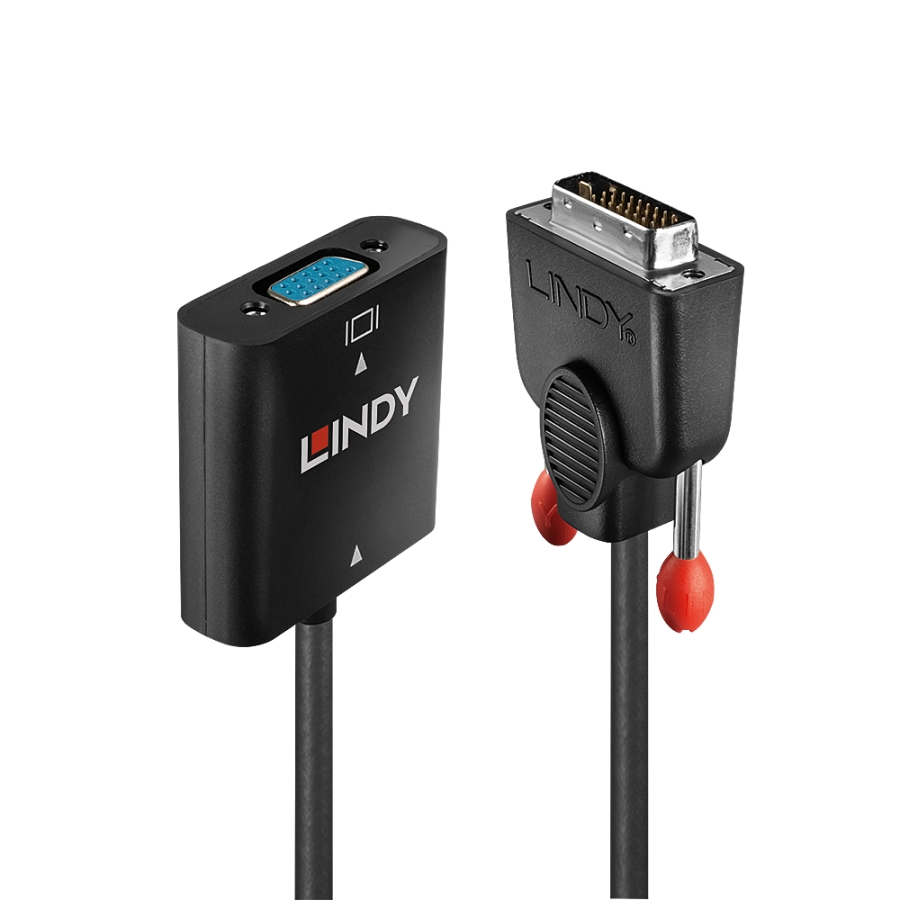

DVI to VGA Converter

LIN38189

New

Specifications

  • AV Interface: DVI to VGA
  • Interface Standard: DVI-D (Single Link), VGA
  • Supported Bandwidth: 4.45Gbps
  • Maximum Input Resolution: 1920x1200@60Hz 12bit
  • Maximum  Output Resolution: 1920x1200@60Hz 12bit
  • Chipset: CH7101
  • HDCP Support: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: -



Connectors

  • Input: DVI-D Male (Single Link)
  • Output: VGA Female



Physical properties

  • Dimensions (approx.) WxDxH:
    • 44x45x15mm (1.73x1.77x0.59in) / DVI
    • 40x52.25x16.5mm (1.57x2.06x0.65in)
  • Cable Length: 100mm (3.94in)
  • Housing Material: PVC
  • Jacket Material: PVC
  • Jacket Diameter: 5.5mm (0.22in)
  • Minimum Bend Radius: 55mm (2.17in)
  • Net Weight: 0.062kg (0.14lb)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity:  20 - 90% RH (non-condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.077kg (0.17lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • DVI to VGA Converter



Purchasing Information

  • No.: 38189
  • EAN: 4002888381895
