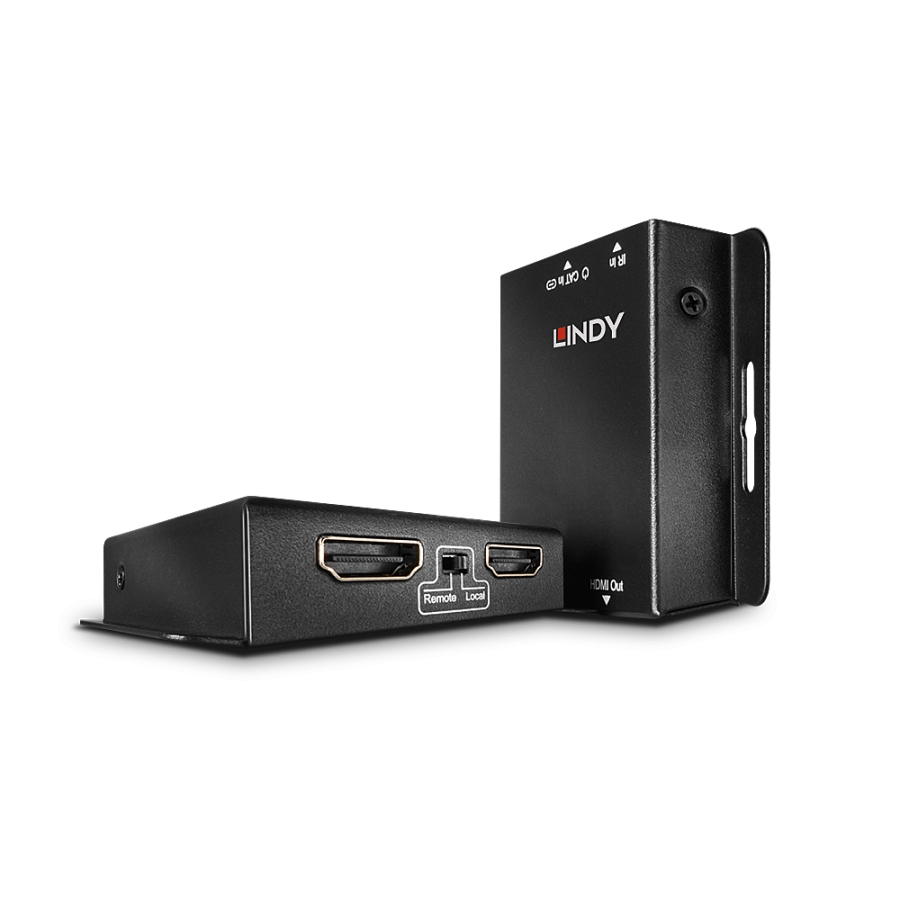

50m Cat.6 HDMI & IR Extender with Loop Out

LIN38144

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.4
  • Supported Bandwidth: 4.95 Gbps
  • Maximum Distance: 50m (164.04ft)
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: HDCP 1.1
  • EDID Pass Through: Cloning Function
  • Supported Audio: Up to 7.1 (Pass-through)
  • Separate Audio Ports: -
  • IR Support: 20-60 kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: -
  • Special Features:
    • Local HDMI Output
    • Power over Cat.6 Cable
  •

Connectors

  • Transmitter Input: HDMI (Female)
  • Transmitter Output: RJ45 (Female), HDMI (Female), IR (Female)
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Ouput: HDMI (Female)
  • Bidirectonal Ports: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxDxH: 57x67x16mm / 2.24x2.64x0.63In per unit
  • Housing Material: Metal
  • Net Weight: 0.203kg (0.45lb) per unit
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 212x148x55mm (8.35x5.83x2.16in)
  • Gross Weight: 0.56kg (1.23lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Transmitter Unit
  • Receiver Unit
  • IR Emitter Cable
  • IR Receiver Cable
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual



Purchasing Information

  • No.: 38144
  • EAN: 4002888381444
