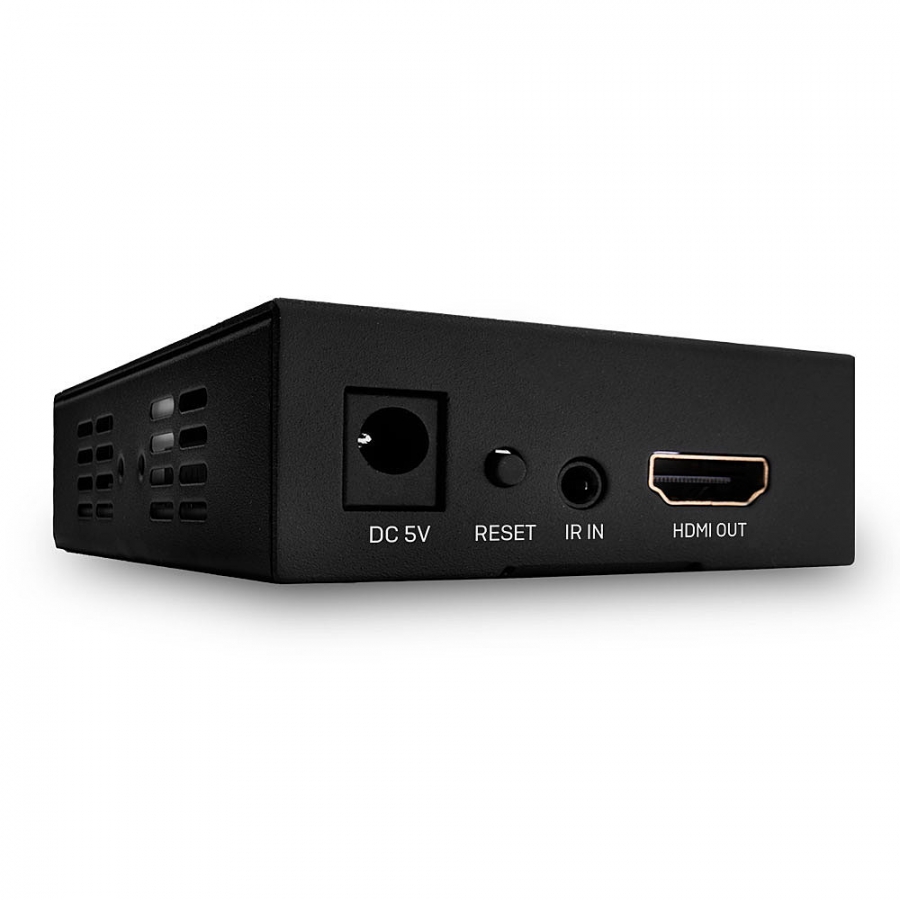

HDMI & IR over 100Base-T IP Receiver

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.2
• Supported Bandwidth: 4.95 Gbps
• Maximum Distance: 100m (328.08ft)
• Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
• HDCP Support: Pass-through
• EDID Pass Through: -
• Supported Audio: 2 Channel PCM
• Separate Audio Ports: -
• IR Support: 20-60 kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: IP
• Transmission Medium: 1 x Cat.5e/6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: Taifatech 680
• Special Features: -

Connectors

• Transmitter Input: -
• Transmitter Output: -
• Receiver Input: RJ45 (Female), IR (Female)
• Receiver Ouput: HDMI (Female)
• Bidirectonal Ports: -
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD: 100x65x26mm (3.94x2.56x1.02in) per unit
• Housing Material: Metal
• Nett Weight: 0.245kg (0.54lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions:
• Gross Weight: 0.55kg (1.21lb)
• Warranty (Years): 2
• Certificated: CE, FCC, REACH and RoHS

Package Contents

• Receiver unit
• IR receiver cable
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy manual

Purchasing Information

• No. 38129
• EAN: 4002888381291
