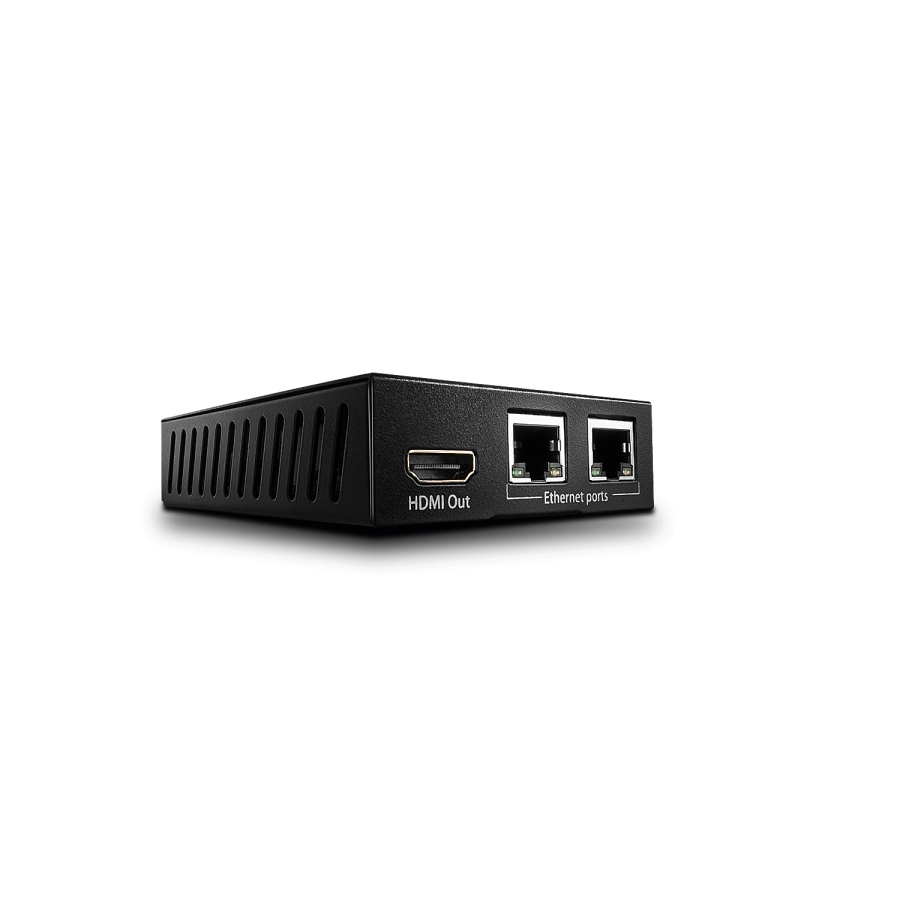

100m C6 HDBaseT HDMI & IR Extender, Receiver

LIN38118

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 10.2 Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: 33-50kHz
  • CEC Support: Pass-Through
  • Serial Interface: -
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS100
  • Special Features: -



Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Ouput: HDMI (Female)
  • Bidirectonal Ports: 10/100 Ethernet
  • Power: 3.5/1.35mm DC socket



Physical Properties

  • Dimensions WxDxH: 110x75x25mm (4.33x2.95x0.98in)
  • Housing Material: Metal
  • Net Weight: 0.22kg (0.49lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 175x24x55mm (6.89x0.94x2.17in)
  • Gross Weight: 0.37kg (0.82lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Receiver unit
  • IR receiver cable
  • Multi-Country Power Supply(EU, UK, US & AUS)
  • Lindy manual



Purchasing Information

  • No.: 38118
  • EAN: 4002888381185
