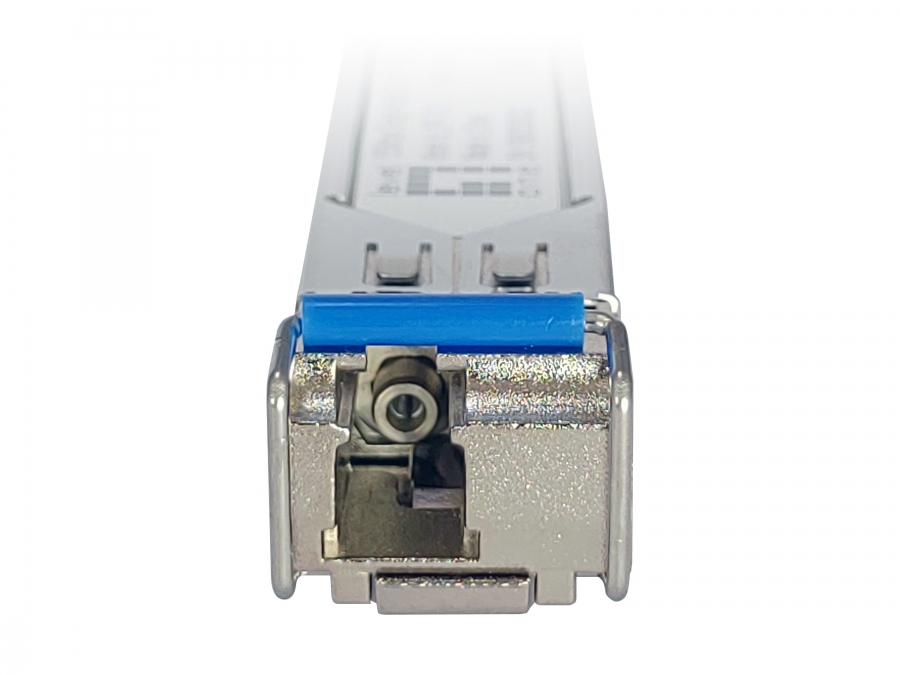

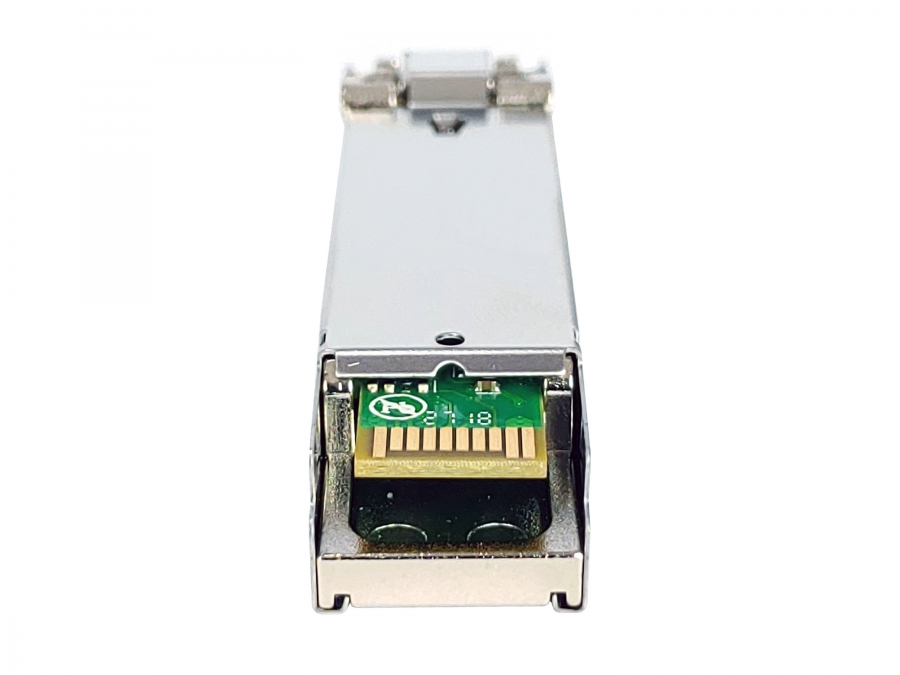

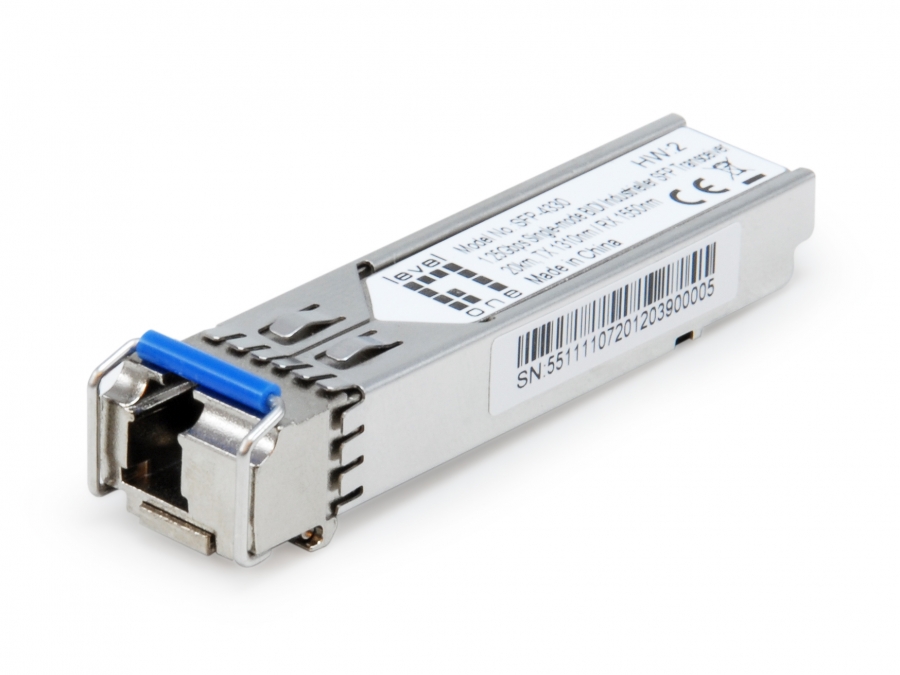

Level One LevelOne BIDI Transceiver 1.25G Single-M. 20km 1550nm/T1310

LEVEL ONE

SFP-4330

Jauns

The LevelOne SFP-4330 is a high performance, costeffective SFP transceiver. It provides up to 1,25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-4330 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-4340 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Multi-mode fiber (MMF) supportedN
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance20000 m
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Tx power (min)-9 dBmW
Tx power (max)-3 dBmW
Rx power (min)-25 dBmW
Rx power (max)-2 dBmW
Digital Diagnostics Monitoring (DDM)Y
Product colourSilver
Hot-swapY
SafetyFCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
Country of originChina
CertificationCE
Maximum voltage3.47 V
Maximum current0.3 A
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)0 - 85%
Width13.7 mm
Depth56.6 mm
Height12.4 mm
Weight19 g
Number of products included1 pc(s)
User guideY
Package width65 mm
Package depth106 mm
Package height20 mm
Package weight39.5 g
Package typeBox
Sustainability certificatesRoHS
Pallet gross length80 cm
Pallet gross width120 cm
Pallet height (air)166.9 cm
Products per pallet35 pc(s)
Master (outer) case width310 mm
Master (outer) case length375 mm
Harmonized System (HS) code85369010
Master (outer) case height268 mm
Master (outer) case gross weight6.67 kg
Products per master (outer) case150 pc(s)
RX sensitivity-25 dB
