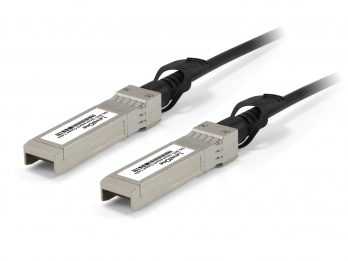

Level One LevelOne Kabel DAC-0105 Direct Attach Copper Cable 5m

Level One LevelOne Kabel DAC-0105 Direct Attach Copper Cable 5m

LEVEL ONE

DAC-0105

Jauns

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliabilityKey Features - Support for multi-gigabit data rates up to 10.5Gbps - Data rates backward compatible to 1Gbps - Hot-pluggable SFP 20PIN footprint - I/O Connector designed for high speed differential signal applications - Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance - Compatible to SFP+ MSA - Temperature Range: 0~ 70 °C - RoHS Compatible

Cable length5 m
Connector 1SFP+
Connector 2SFP+
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack, Stainless steel
Data transfer rate10.5 Gbit/s
Sustainability certificatesRoHS
Weight300 g
Package width310 mm
Package depth230 mm
Harmonized System (HS) code85447000
