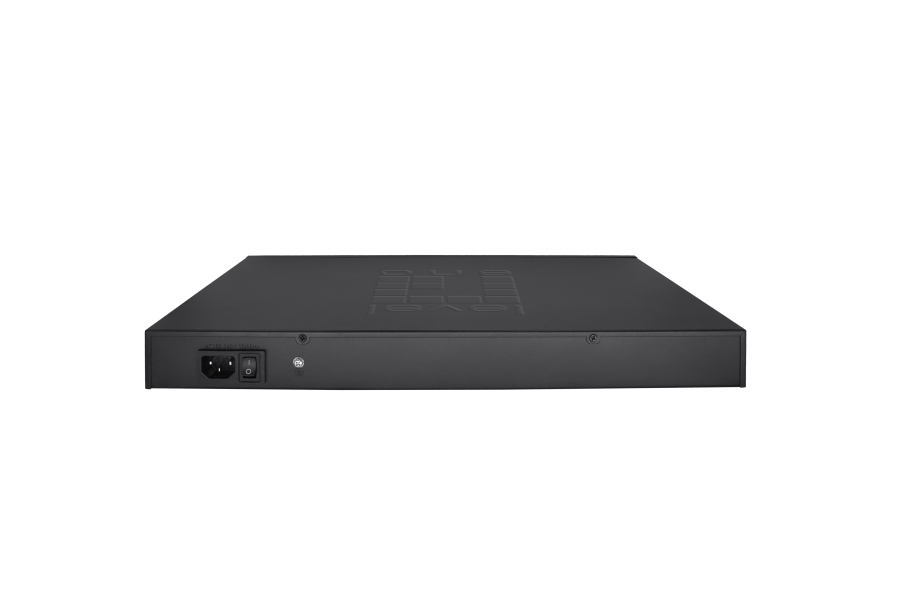

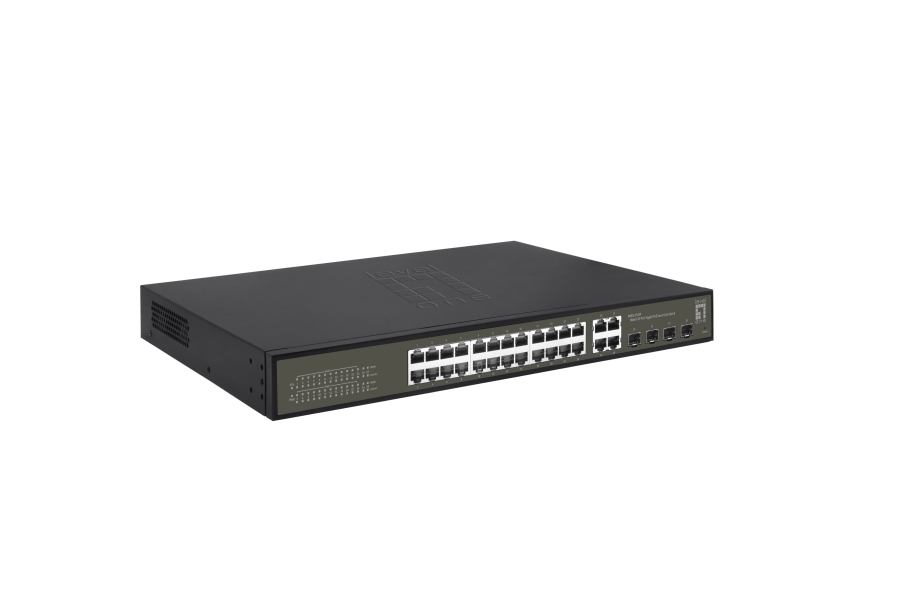

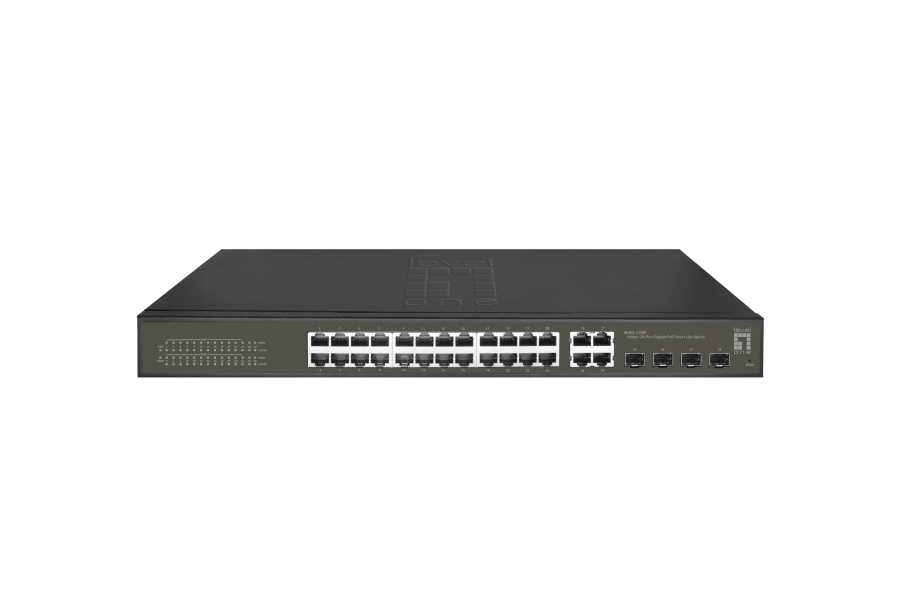

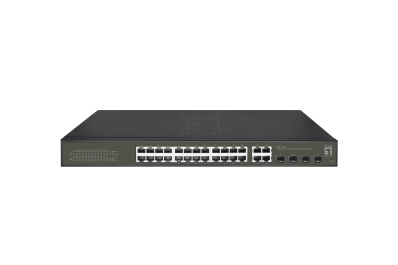

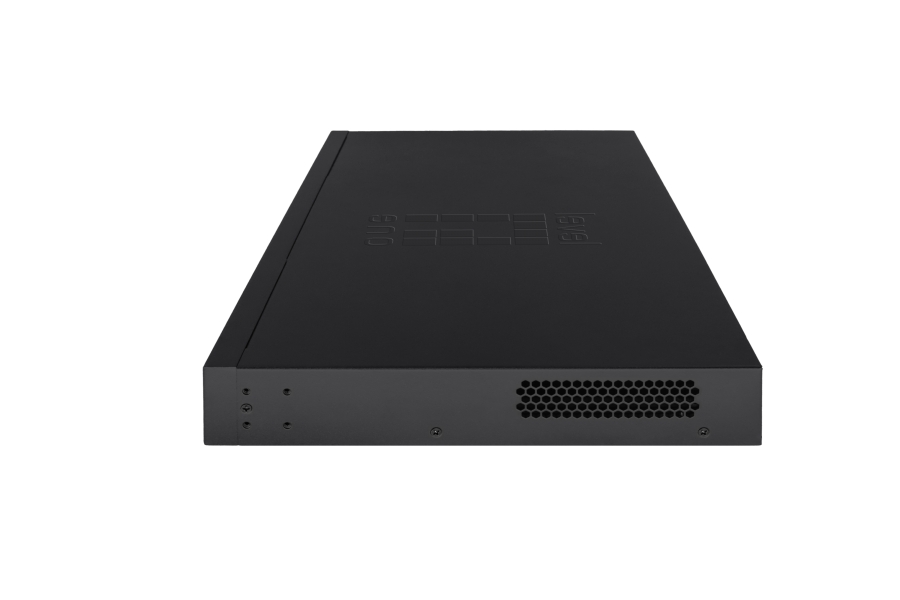

Level One LevelOne Switch 24x GE GES-2128P 4xGSFP 19" 380W 24xPoE+

LEVEL ONE

GES-2128P

Jauns

The LevelOne GES-2128P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2128P delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 380W) ports and 4 Combo GbE RJ45/SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.The LevelOne GES-2128P provides high HW performance and environment flexibility for Enterprises. GES-2128P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Combo SFP ports quantity4
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringY
Full duplexY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Rate limitingY
MAC address auto-learning supportedY
MAC address auto-aging supportedY
VLAN supportY
Virtual LAN featuresTagged VLAN
Number of VLANs32
MAC address table8000 entries
Switching capacity56 Gbit/s
Number of queues4
Jumbo frames supportY
Jumbo frames9000
Packet buffer memory4.1 MB
IGMP snoopingY
Multicast supportY
Rack mountingY
Product colourBlack
LED indicatorsActivity, Link, PoE, Power, System
Country of originChina
CertificationUKCA, FCC Class A
Flash memory2 MB
Noise level30 dB
FanlessN
Mean time between failures (MTBF)43800 h
Master (outer) cases per pallet (air)16 pc(s)
Pallet gross length80 cm
Pallet gross width120 cm
Pallet height (air)174.4 cm
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)400 W
Surge protectionY
Surge protection voltage8 kV
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget380 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation88.71 BTU/h
Width440 mm
Depth290 mm
Height44.5 mm
Weight3.4 kg
Cables includedAC
Quick start guideY
Package typeBox
Rack mount kitY
Package width515 mm
Package depth380 mm
Package height93 mm
Package weight4.1 kg
Sustainability certificatesCE, RoHS
Master (outer) case net weight750 g
Master (outer) case width540 mm
Master (outer) case length320 mm
Master (outer) case height400 mm
Master (outer) case gross weight13.1 kg
Products per master (outer) case3 pc(s)
