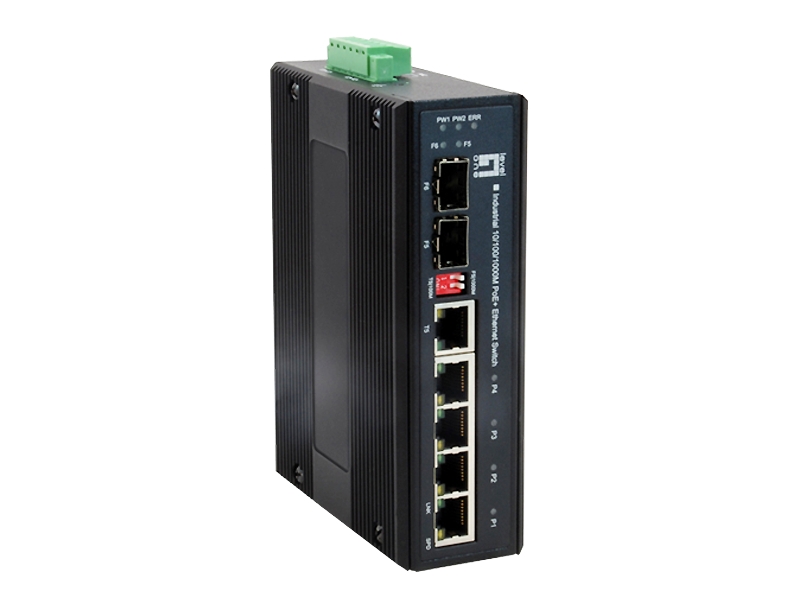

Level One LevelOne Switch 4x GE IES-0620 2xGSFP 126W 4xPoE

LEVEL ONE

IES-0620

Jauns

LevelOne IES-0620 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.- 4 10/100/1000Base-T PoE ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - PoE ports can support the IEEE 802.3at standard and power up 30W - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard - Wide input power range 12 to 55VDC

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity1
SFP module slots quantity1
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
Auto-negotiationY
MAC address table1024 entries
Switching capacity12 Gbit/s
Store-and-forwardY
Jumbo frames10000
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148000 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet buffer memory1 MB
Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, Power
International Protection (IP) codeIP30
Wall mountableY
DIN rail mountingY
Country of originTaiwan
CertificationFCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
Input voltage12 - 55 V
Power consumption (typical)6 W
Power protection featuresOverload, Reverse polarity
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget126 W
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

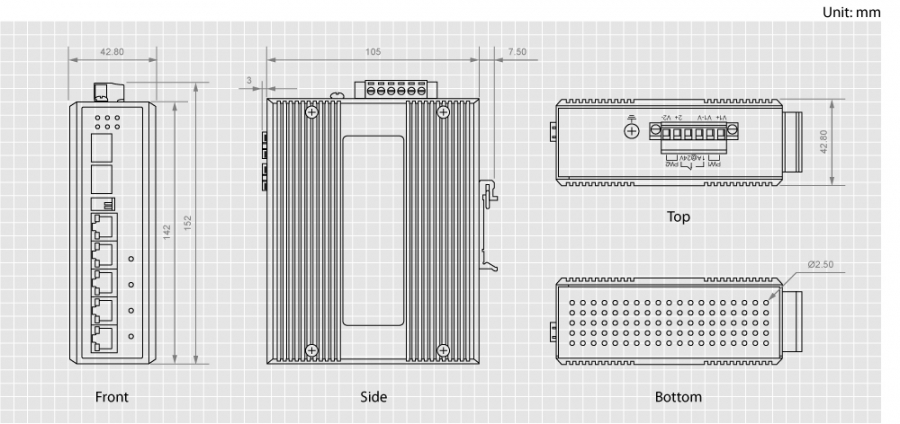

Width40 mm
Depth105 mm
Height38 mm
Weight720 g
Quick start guideY
Package width215 mm
Package depth165 mm
Package height65 mm
Package weight120 g
Harmonized System (HS) code85176990
Terminal block portY
