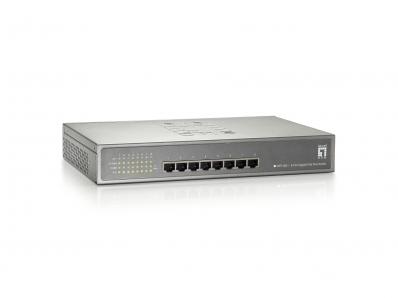

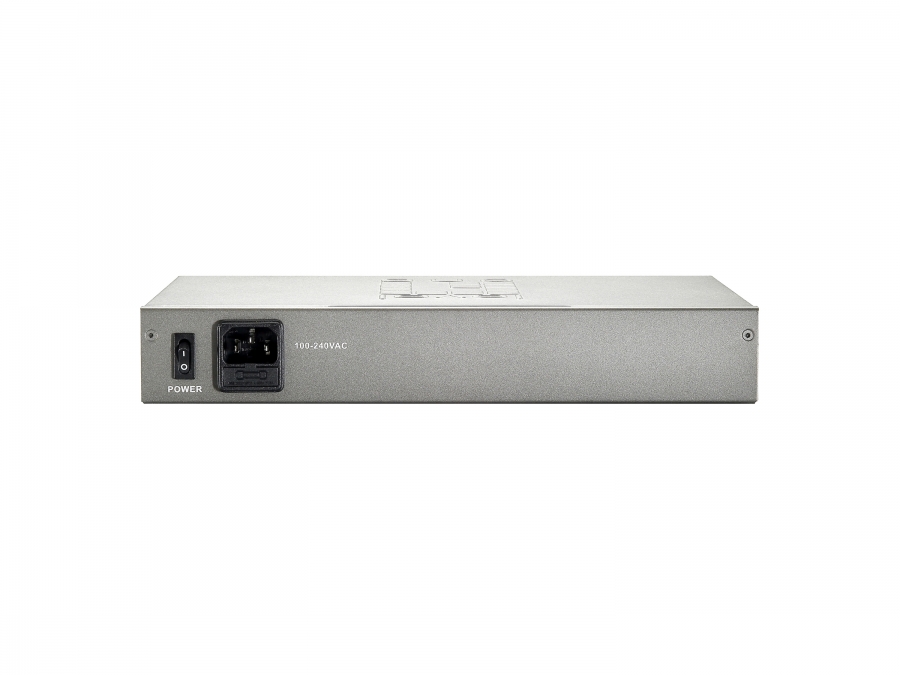

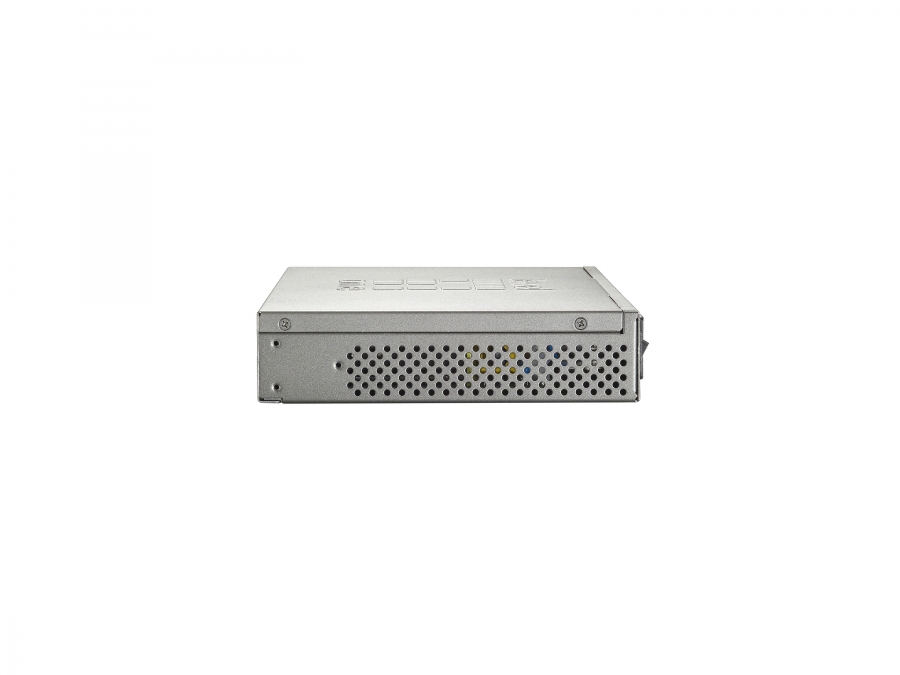

Level One LevelOne Switch 8x GE GEP-0821 123.2W 8xPoE+

Kods GEP-0821

Condition: Jauns

Vairāk informācijas

The LevelOne GEP-0821 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 123.2W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an affordable solution for PoE deploying infrastructure.- IEEE 802.3af/at PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 19-inch rackmount kit included - Total PoE power budget: 123.2W, up to 30W per port - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Cable types supported	Cat5, Cat6, Cat7
Full duplex	Y
Flow control support	Y
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Grey
LED indicators	Activity, PoE
Country of origin	Taiwan
Certification	FCC, CE
Buffer size	128 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2 A
Power consumption (typical)	130 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	123.3 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	280 mm
Depth	185 mm
Height	44 mm
Weight	2 kg
Cables included	AC
Quick start guide	Y
Package type	Box
Package width	371 mm
Package depth	230 mm
Package height	82 mm
Package weight	2.26 kg
Harmonized System (HS) code	85176990
