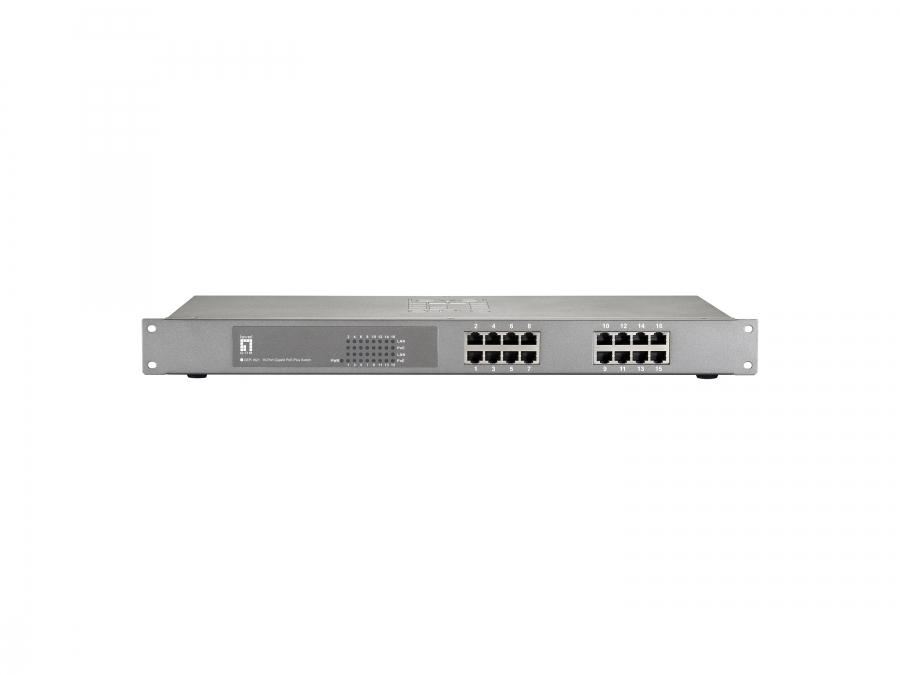

Level One LevelOne Switch 16x GE GEP-1621 19" 250W 16xPoE+

Kods GEP-1621

Condition: Jauns

Vairāk informācijas

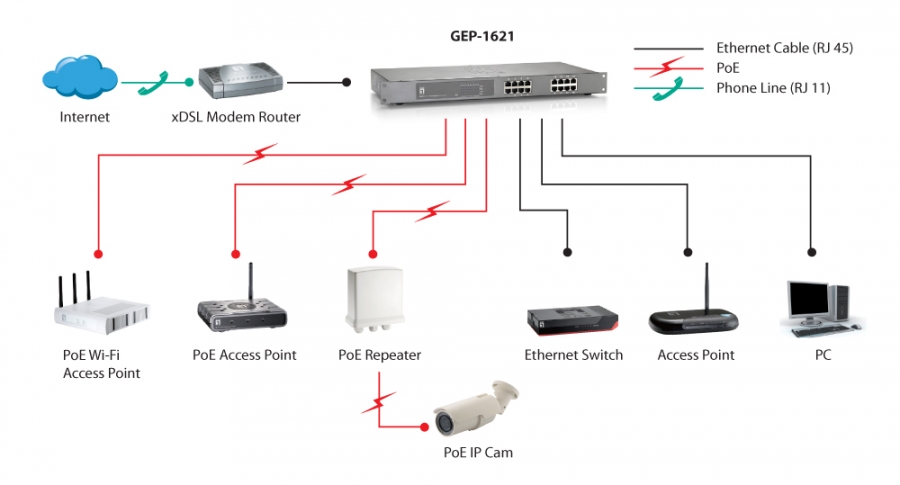

The LevelOne GEP-1621 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1621 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure.- 16 PoE-Plus Gigabit Ethernet ports - 10/100/1000Mbps wire speed transmission and reception - IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) - 19-inch metal housing - Total PoE power budget: 240W, up to 30W per port

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Y
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Stackable	N
Product colour	Grey
LED indicators	Activity, Link, PoE, Power
Country of origin	Taiwan
Certification	FCC Part 15 Class A, CE, RoHS
Buffer size	256 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	480 mm
Depth	200 mm
Height	44 mm
Weight	2.9 kg
Cables included	AC
Quick start guide	Y
Package type	Box
Package width	260 mm
Package depth	96 mm
Package height	540 mm
Package weight	3.8 kg
Harmonized System (HS) code	85176990
