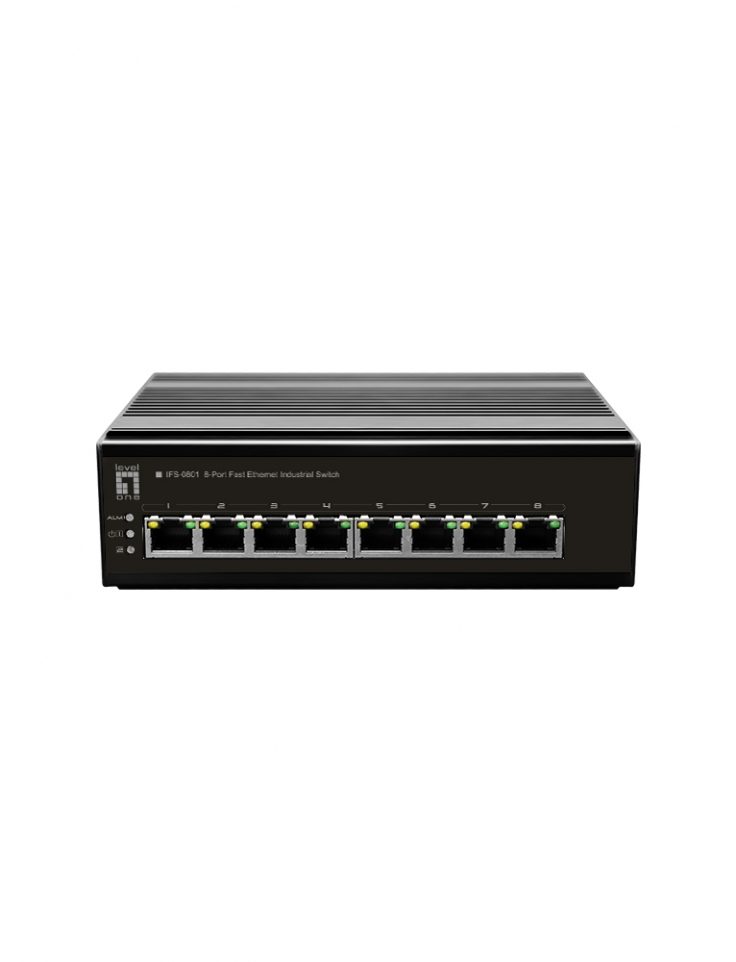

Level One LevelOne Switch 8x FE IFS-0801 -30 Grad - + 65 Grad

LEVEL ONE

IFS-0801

Jauns

LevelOne IFS-0801 Industry Ethernet Switch provides 8 ports 10/100Base network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity8
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexY
Half duplexY
Flow control supportY
Auto MDI/MDI-XY
Auto-negotiationY
MAC address table8000 entries
Switching capacity1.6 Gbit/s
Packet buffer memory1 MB
Product colourBlack
LED indicatorsActivity, Link, Power
Wall mountableY
DIN rail mountingY
Power sourceAC/DC
Power supply includedY
Input voltage12 - 60 V
Surge protectionY
Surge protection voltage8 kV
Power over Ethernet (PoE)N
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Width165 mm
Depth114 mm
Height50 mm
Weight450 g
Quick start guideY
Terminal block includedY
Sustainability complianceY
Sustainability certificatesCE, Federal Communications Commission (FCC)
Terminal block portY
