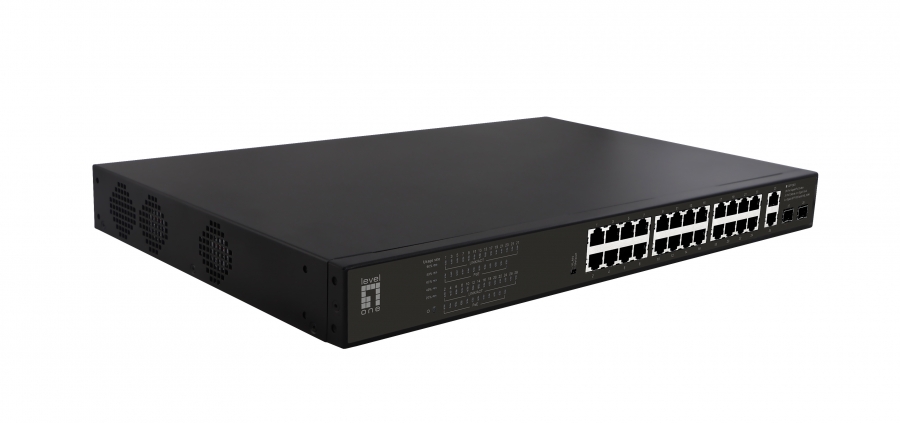

Level One LevelOne Switch 24x GE GEP-2821 2xGE 2xGSFP 19" 390W 24xPoE+

LEVEL ONE

GEP-2821

Jauns

The GEP-2821 is LevelOne latest generation of 28-Port Gigabit Unmanaged PoE Switch, with 2 Gigabit RJ45 and 2 Gigabit SFP Uplink ports. also offers powerful DIP switch button configuration for VLAN mode and Default mode features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 56Gbps and bring Gigabit speeds all the way to your computers.The GEP-2821 PoE-enabled switches features an IEEE 802.3af/at certified, better PoE functionality with 390W PoE power budget and usability. supports up to 24 ports at 15.4W, or 13 ports at 30 W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity28
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity2
SFP module slots quantity2
Networking standardsIEEE 802.1af, IEEE 802.3at
10G supportN
VLAN supportY
Transmission distance (max)0.25 km
MAC address table8000 entries
Packet buffer memory42 MB
Rack mountingY
StackableY
Form factor1U
Product colourBlack
LED indicatorsY
Country of originChina
CertificationCE, RoHS
Built-in processorY
Processor modelRealtek RTL8382L
Flash memory4 MB
MTBF (PoE)290000 h
Pallet net height140.4 cm
Pallet net length80 cm
Pallet net width120 cm
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Surge protectionY
Surge protection voltage6 kV
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity30
Power over Ethernet (PoE) power per port15.4 W
Total Power over Ethernet (PoE) budget390 W
Operating temperature (T-T)-10 - 85 °C
Storage temperature (T-T)-40 - 90 °C
Operating relative humidity (H-H)0 - 90%
Heat dissipation119.544 BTU/h
Width285 mm
Depth442 mm
Height44 mm
Weight4 kg
Cables includedAC
Quick start guideY
Package typeBox
Rack mount kitY
Package width395 mm
Package depth90 mm
Package height530 mm
Package weight4.8 kg
Harmonized System (HS) code85176990
