Level One LevelOne Switch 28x GE GTP-2881 4x10GSFP+19" 185W 24xPoE

LEVEL ONE

GTP-2881

Jauns

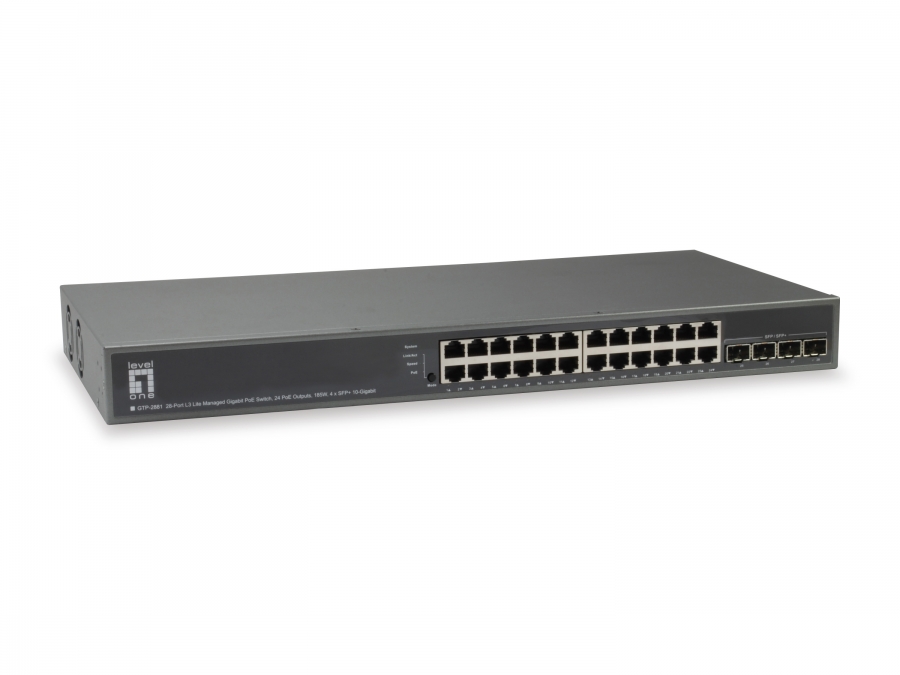

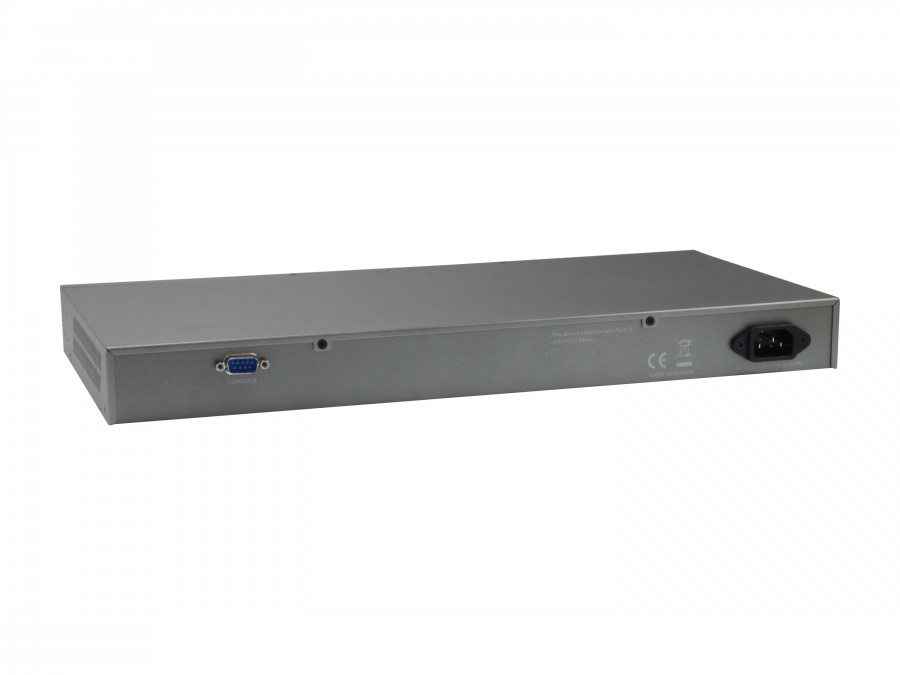

GTP-2881 L3 Lite Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections. GTP-2881 delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports, 4 GbE/10G SFP+ ports and DB9 Console port. GTP-2881 provides high HW performance and environment flexibility for SMBs and Enterprises. GTP-2881 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
System event logY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Console portRJ-45
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Spanning tree protocolY
Cable length detectionY
VLAN supportY
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN
Fiber ethernet cabling technology1000BASE-X
MAC address table32000 entries
Switching capacity128 Gbit/s
Forwarding rate95.232 Mpps
Store-and-forwardY
Static routeY
Jumbo frames supportY
Jumbo frames10000
Packet buffer memory4 MB
DHCP featuresDHCP server, DHCP relay, DHCP client
Access Control List (ACL)Y
IGMP snoopingY
SSH/SSL supportY
Loop protectionY
BPDU filtering/protectionY
Rack mountingY
Product colourBlack
Reset buttonY
LED indicatorsActivity, Link, PoE, Speed
Country of originTaiwan
SafetyLVD, UL, CB IEC-60950-1
CertificationCE, FCC Part 15 Class A
Internal memory128 MB
Flash memory32 MB
Firmware upgradeableY
TelnetY
sFlowY
Mean time between failures (MTBF)463931 h
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)16.79 W
Power protection featuresShort circuit
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget185 W
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Heat dissipation1526.86 BTU/h
Width442 mm
Depth211 mm
Height44 mm
Weight3.7 kg
Cables includedAC, LAN (RJ-45)
Quick start guideY
Package typeBox
Rack mount kitY
Resource CDY
Package width300 mm
Package depth520 mm
Package height90 mm
Package weight4.1 kg
Master (outer) case width482 mm
Master (outer) case length540 mm
Master (outer) case height324 mm
Harmonized System (HS) code85176990
Master (outer) case gross weight21.7 kg
Products per master (outer) case5 pc(s)
