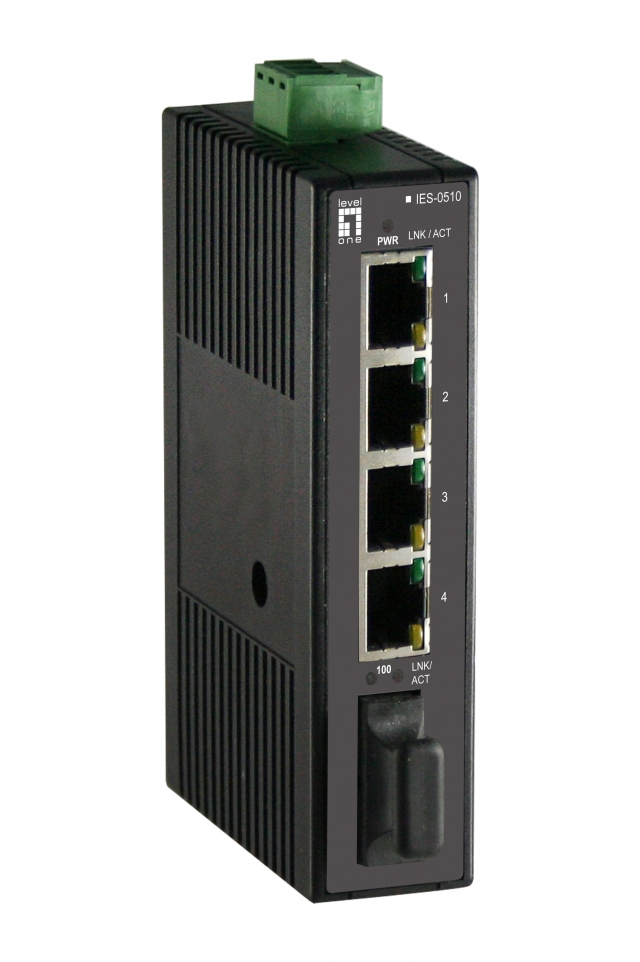

Level One LevelOne Switch 4x FE IES-0510 1xSC

LEVEL ONE

IES-0510

Jauns

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.

Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.

Switch typeUnmanaged
Quality of Service (QoS) supportY
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fiber optic connectorSC
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexY
Auto MDI/MDI-XY
Auto-negotiationY
Fiber ethernet cabling technology100BASE-FX
Fiber typeMulti-mode
MAC address table2048 entries
Store-and-forwardY
Packet forwarding rate (100 Mbps)148810 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet buffer memory0.384 MB
Product colourBlack
Housing materialPlastic
LED indicatorsActivity, Link, Speed
International Protection (IP) codeIP30
Country of originTaiwan
SafetyUL60950-1
CertificationISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed
Mean time between failures (MTBF)1071085 h
Input voltage12 - 48 V
Power consumption (max)4.3 W
Power over Ethernet (PoE)N
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width26 mm
Depth70 mm
Height110 mm
Weight200 g
Quick start guideY
Package typeBox
Package width180 mm
Package depth79 mm
Package height221 mm
Package weight460 g
Harmonized System (HS) code85176990
