Digitus UPS External Battery Pack for 6kVA and 10kVA UPS Models (Extended Pack)

Digitus

DN-170108

Jauns

Battery module with internal battery (20pcs)

A solution that increases the operating capacity of intelligent USV systems to protect IT devices with medium to high loads

Rack / tower with convertible design
Hot swappable – Batteries can be exchanged during operation
Supports rapid extension of backup time in case of increased need for capacity
Easy installation – Batteries can be exchanged by the user
Supports cold start function

The DIGITUS® USV Battery Modules ensure that USV systems used in highly demanding environments can continue to reliably supply connected devices with power in case of interruptions to the power supply. A maximum of 4 battery modules can be connected in order to increase the operating time of the connected IT devices. The systems are protected by ensuring uninterrupted power supply while changing the batteries. The external battery backs can ensure a rapid increase for the bridging period in case of increasing need.

Installation: Desktop, Rack
Power: 6000VA – 10000VA
Technology: Online double conversion
Inch form factor (IEC 60297): 482.6 mm (19")

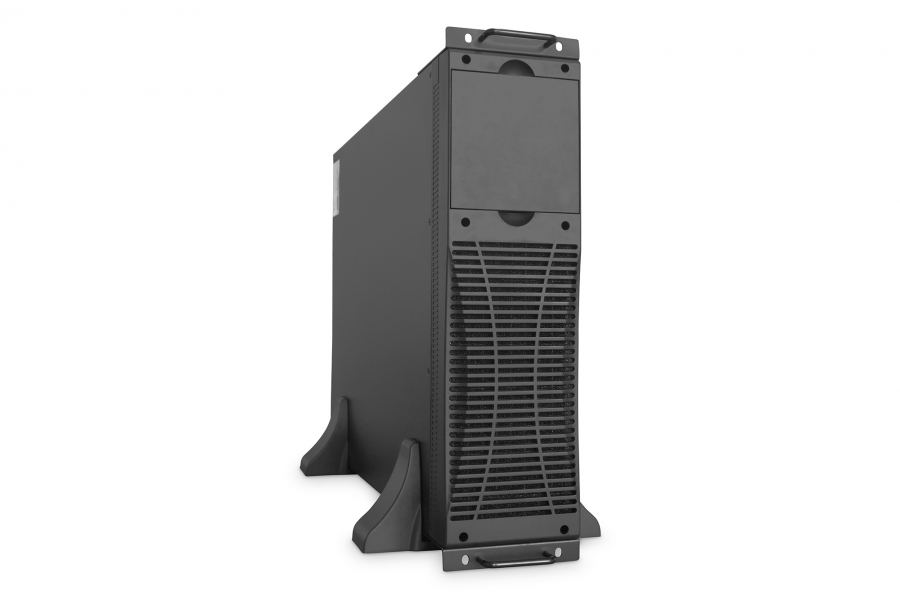

The battery module can be installed in a 19" rack or as a separate tower with stand
Hot swappable – Batteries can be exchanged during operation
Compatible with OnLine USVs: DN-170106 & DN-170107
Battery voltage: ±120 VDC
Capacity (standard unit): 12 V / 9 Ah
Number of installed rechargeable batteries: 20 units
Batteries in a row: 10 (per battery module)
Battery type: Lead battery
Typical charging time: 6 - 8 hours to recover 90% of full capacity
Operating temperature: 20 °C to +25 °C
Humidity during operation: 0 - 90%

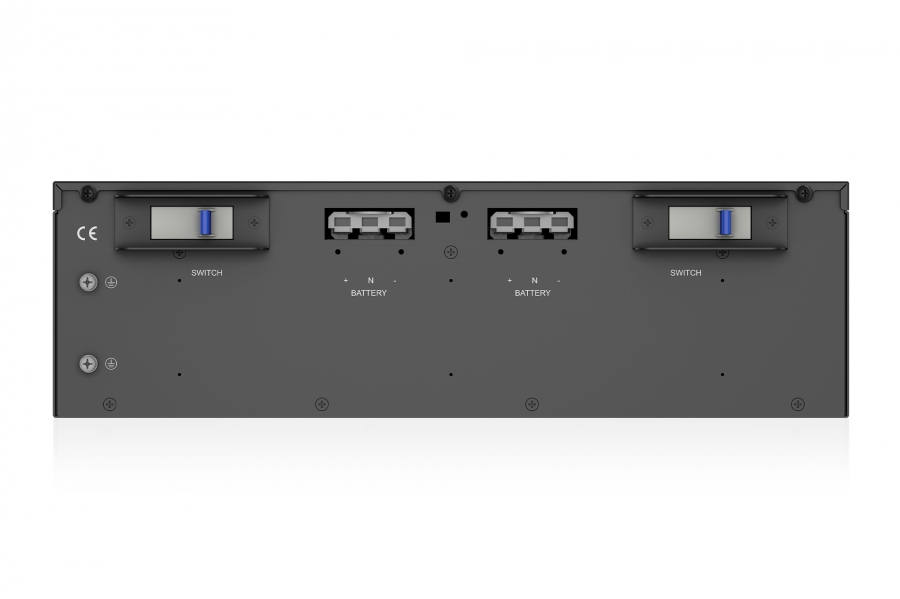

Terminal connections on the back
Dimensions (L×W×D): 131 x 443 mm x 680 mm
Net weight: 65 kg
Gross weight: 66 kg

Package content:
1 x External USV Battery Pack for 6 kVA and 10 kVA USV models (extension module)
1 x User manual
1 x Connector cable (to connect UPS and battery module), 1.5m

Platums(cm)58.5
Grums(cm)73
Augstums(cm)28
Svars(kg)68.2
Tilpums(cm3)119574
Izcelsmes valstsCN
