Digitus OnLine UPS system, 6 kVA/ 6 kW

Digitus

DN-170106

Jauns

OnLine UPS Module, 6000VA/6000W 2U

The parallel-redundant online USV is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.

High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.

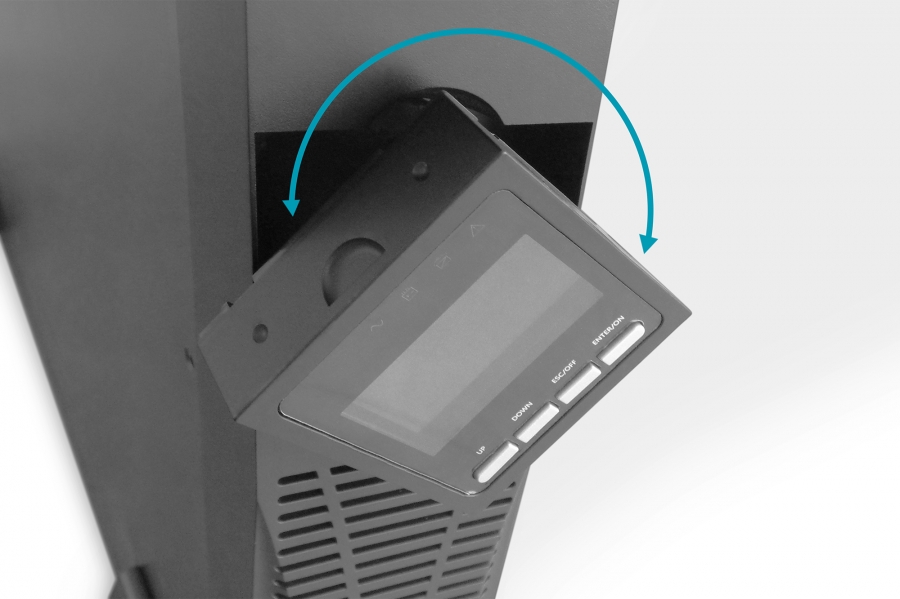

User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

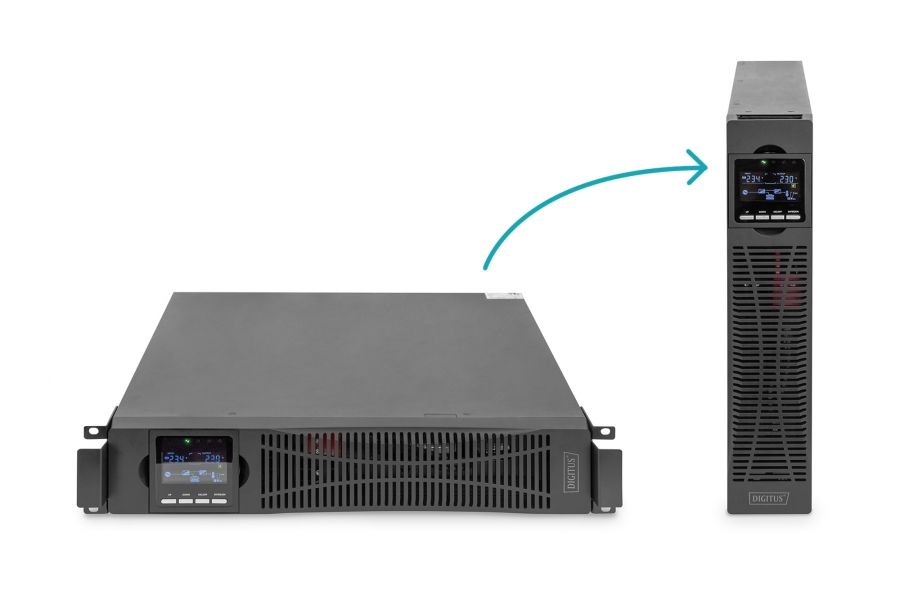

Compact rack/tower design optimizes rack space and allows for flexible installation.
Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
Automatic battery self-test and fan speed control increase component life.
Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.
Parallel / redundant operation possible (up to 4 devices in parallel), this supports maximum availability and enables growth as load demand increases.
External battery modules allow the runtime to be extended.
The UPS requires only 2 height units in the rack, this allows easy installation and saves space in the rack for other components.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs. The UPS has no internal batteries, these must be ordered separately as external battery modules (part number: DN-170108)

Installation: Desktop, Rack
Plug: Hardwired
Power: 6000VA – 10000VA
Technology: Online double conversion
Inch form factor (IEC 60297): 482.6 mm (19")
Online double conversion system (VFI-SS-111)
Input: Input terminals / hard wiring
Output: Output terminals / hard wiring
System power rating: 6 kVA / 6 kW, power factor 1.0
AC-AC (online VFI) efficiency: 94 %, ECO mode efficiency: 97 %.
No internal battery. External battery module: DN-170108. Up to 4 ECB can be connected.
Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
Optional relay card (part number DN-xxxxx) with potential free inputs and outputs (Bypass, UPS ON, AC error, Batt low, UPS alarm)

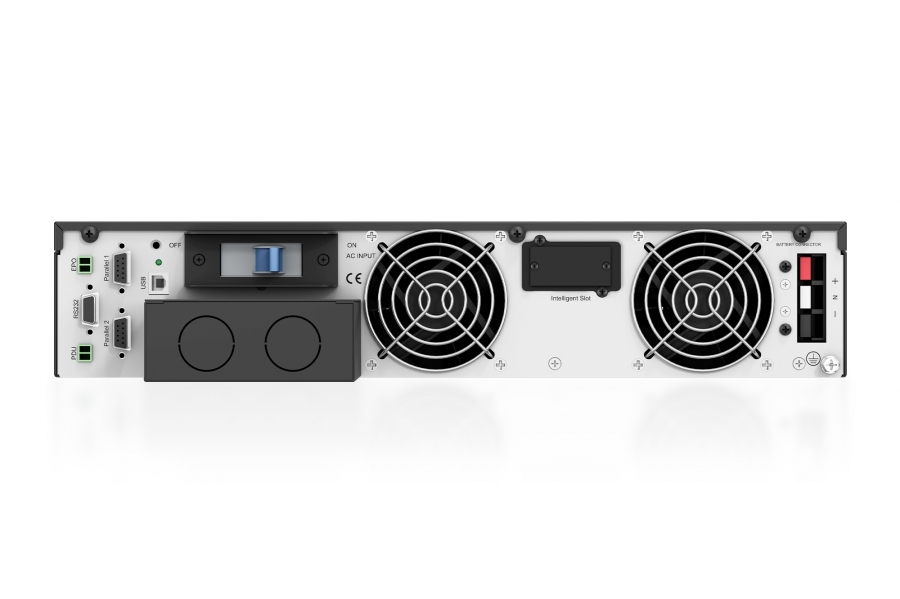

Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
Emergency power-off (EPO) contact for UPS shutdown in case of emergency
Maximum operating temperature: 0 - 40 °C
Storage temperature: -25 - 55 °C
Relative humidity: 20 - 90% non-condensing
Operating altitude: < 1500 m
Product dimensions WxDxH (mm): 440 (19") x 620 x 86.5 (2U)
Product weight: 13,8 kg
Shipping dimensions WxDxH (mm): 615 x 765 x 214
Shipping weight: 18,9 kg
Safety standards: IEC/EN62040-1,IEC/EN60950-1
EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Approval: CE declaration
Scope of delivery: UPS unit (with out internal battery), feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, 19" installation brackets
Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Package content:
1 x OnLine USV system, 6 kVA / 6 kW
1 x User manual
1 x USB connection cable 1.5 m
1 x RS232 cable 1.5m
1 x Parallel cable 1.5 m
Software License Card
Note: Battery not included in delivery

Platums(cm)61.5
Grums(cm)76.5
Augstums(cm)21.4
Svars(kg)19.2
Tilpums(cm3)100682
Izcelsmes valstsCN
