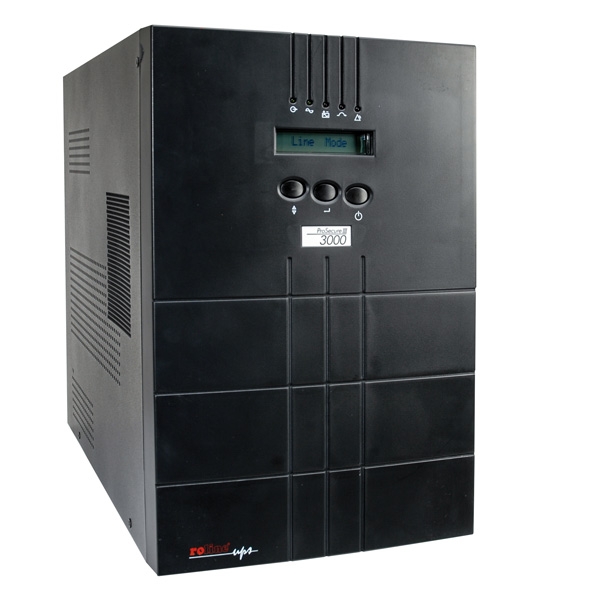

ROLINE ProSecure III 3000 - Online UPS

ROLINE

19.40.1065

Jauns

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
• Cold start function (DC power on)
• Lightning and surge protection
• Battery replacement warning
• Emergency Power Off function
• Battery remain time display
• LCD display front panel
• Power factor correction
• Support USB communication
• Multiple language LCD display
• On line output voltage selected
• Hot swappable battery by user
• True on-line technology provides all power protection
• Pure sine-wave output with less than 3% THD
• Fully digitized microprocessor controlled
• Short Circuit and overload protection
• Advanced

ManufacturerROLINE
Manufacturer Item No.19.40.1065
Product groupUPS
Product typeUPS Online
Colourblack
Scope of deliveryUPS, Software, Cable Set
Classification (IEC 62040-3)VFI-SS-111
UPS technologyOnline
Power class2000 ... 3000 VA
Output (VA/W)3000 / 2700
Efficiency95 %
Backup time5
Backup time full/half-load5 / 9 min
Weight37
Dimensions (HxWxD)365 x 216 x405 mm
Mounting formTower
Voltage (input)160-230V
Voltage (output)230V
Output voltage regulation± 2%
Frequency50Hz ± 3%
Connector type (input)cold connector IEC 320 C14
Outputs9
Connector type (output)8x cold connector IEC 320 C13
Phase in/output230V/230V / 50Hz
Over current protectionEMI,- RFI-Filter
Max. quantity of delay expansion units2
Delay expansion unit2
Slots for adapter card1
Slot for adapter card1
InterfaceRS232, USB
RS-232 Interface
USB 2.0 Interface
Hot swap batteriesYes, front side
BypassAutomatic + manual
Additional over current protector
ActivityDisplay
Activity LED5
Activity DisplayLCD
incl.Management SoftwareWindows
Internal coolingActive, fan
Ambient temperature0-40C
Gross Weight35

UPS online
