Digitus OnLine UPS system, 2000 VA / 2000 W

Kods DN-170095

Condition: Jauns

Vairāk informācijas

OnLine UPS Module, 2000VA/2000W

The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.

High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

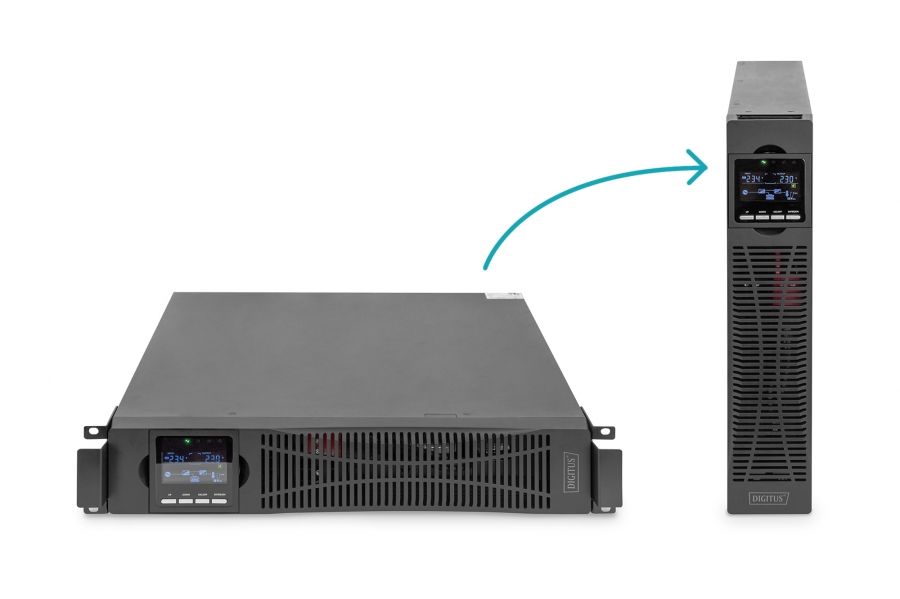

Compact rack/tower design optimizes rack space and allows for flexible installation.
Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.

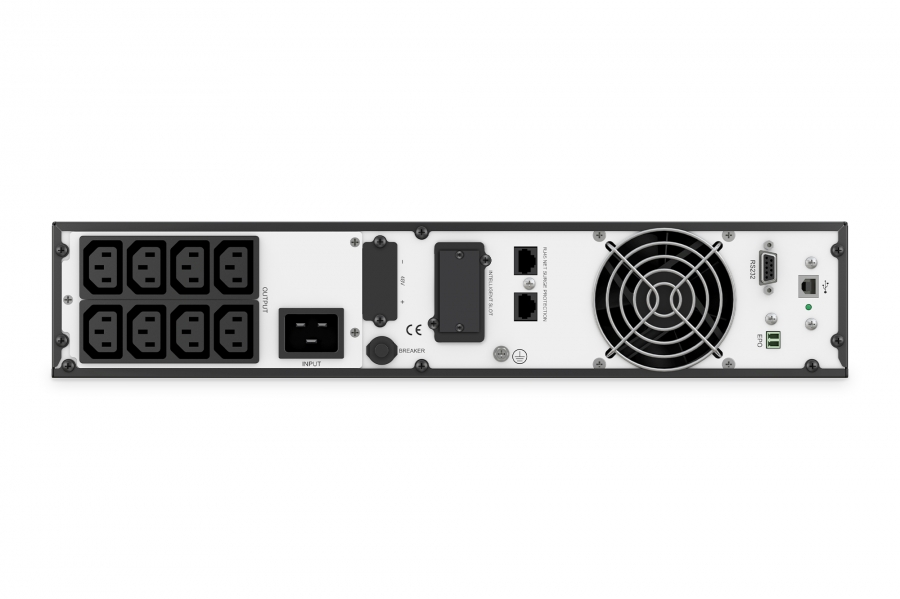

High number of outlets (8 x C13) for optimal power distribution to loads.
Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system.
Automatic battery self-test and fan speed control increase component life.
Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.

Installation: Desktop, Rack
Plug: IEC 60320 C20 inlet
Power: 1500VA 3000VA
Technology: Online double conversion
Inch form factor (IEC 60297): 482.6 mm (19")
Online double conversion system (VFI-SS-111)
Input: socket IEC60320 C20, 208/220/230/240 Vac
Output: 8 x IEC60320 C13, max. 10A per socket
System power rating: 2000 VA / 2000 W, power factor 1.0
AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
Replaceable internal battery pack during operation.
Battery: valve-regulated, non-spillable lead-acid battery.
Battery capacity: 4 x 12V x 9.0 Ah
Charge: 4 hours to 90% capacity after fully discharged
Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
Emergency power-off (EPO) contact for UPS shutdown in case of emergency
Maximum operating temperature: 0 - 40 °C
Storage temperature: -25 - 55 °C
Relative humidity: 20 - 90% non-condensing
Operating altitude: < 1500 m
Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
Product weight: 19,5 kg
Shipping dimensions WxDxH (mm): 560 x 590 x 200
Shipping weight: 23,7 kg
Safety standards: IEC/EN62040-1,IEC/EN60950-1
EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Package content:
1 x OnLine UPS system, 2000 VA / 2000 W
1 x UPS user manual
1 x USB connection cable 1.2 m
1 x Mains cable 1.8 m
1 x RS232 cable
UPS software license
19" installation brackets
Feet for tower installation
