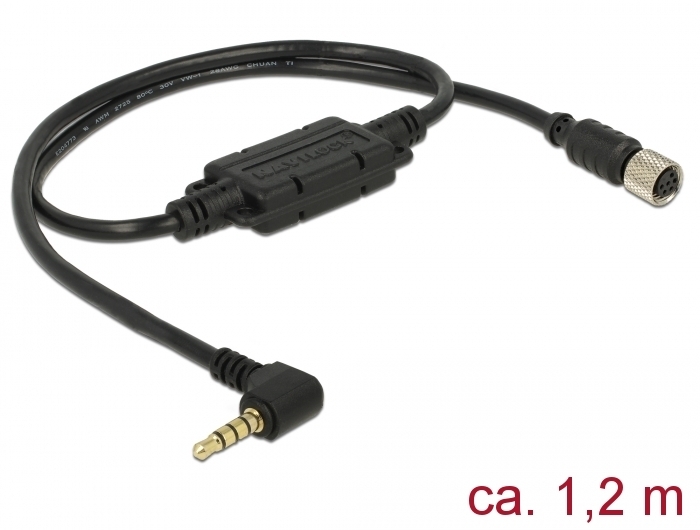

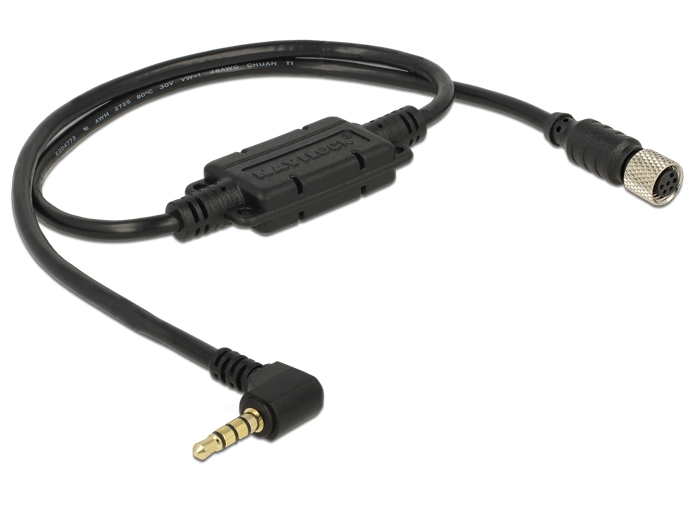

Navilock Connection Cable M8 female serial waterproof > 3,5 mm 4 pin stereo jack male 90° TTL (5 V) 1.2 m

NAVILOCK

62887

New

The waterproof connection cable by Navilock converts the serial signals for all M8 receivers to TTL 5 V signals. Compatible with TTL/CMOS 5.0 V this I/O interface is suitable for GPIO, UART, controller and CPU.

System requirements:
• A Navilock serial M8 GNSS receiver
Specification:
• Connectors:
  1 x M8 female >
  1 x 3.5 mm 4 pin stereo jack male 90°
• Chipset: ASIX ZT3221LEEY
• Data transfer: bidirectional
• Cable gauge: 28 AWG
• Voltage: 5 V
• Waterproof
• Cable colour: black

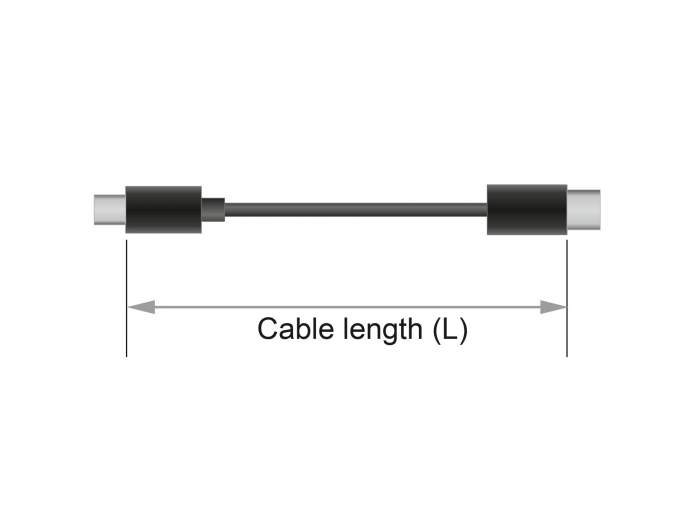

• Length incl. connectors (L): ca. 1.2 m
Package content:
• Connection cable for M8 GNSS receiver
• Navilock support CD
