Delock WLAN 802.11 acahbgn Antenna RP-SMA Quick 6 ~ 8 dBi Directional Joint

DELOCK

88903

New

This wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals. With the help of the variable inclination of the antenna tilt and the magnetic base, you can position the antenna individually.

More details

Description:
This wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals. With the help of the variable inclination of the antenna tilt and the magnetic base, you can position the antenna individually.

Specification:
• RP-SMA plug quick
• With flexible joint, rotatable
• Frequency range: 2.400 ~ 2.500 GHz, 5.150 ~ 5.875 GHz
• Peak gain: 6 dBi, 8 dBi
• VSWR: 2.0 : 1 max.

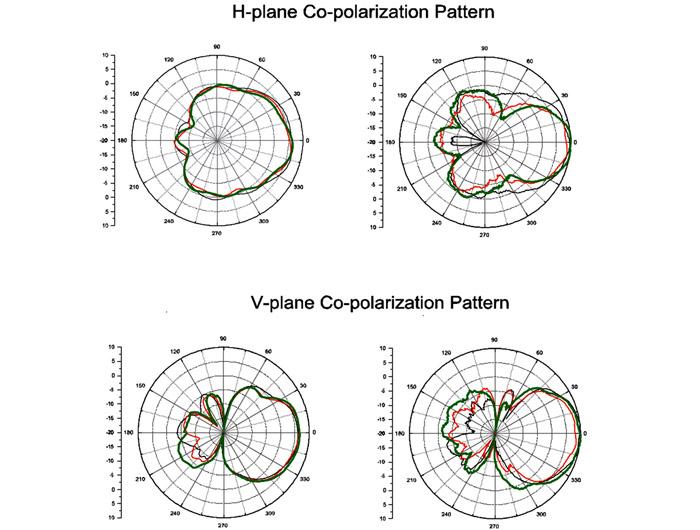

• HPBW: h/v: 70°/70°, h/v: 50°/60°
• Polarisation: linear, vertical
• Impedance: 50 Ohm
• Body: ABS UV resistant
• Operating temperature: -10°C ~ 55°C
• Cable length: 1 m
• Cable type: ULA 100
• Cable attenuation: 1.40 dB@2.500 GHz
2.30 dB@5.875 GHz
• Cable colour: black

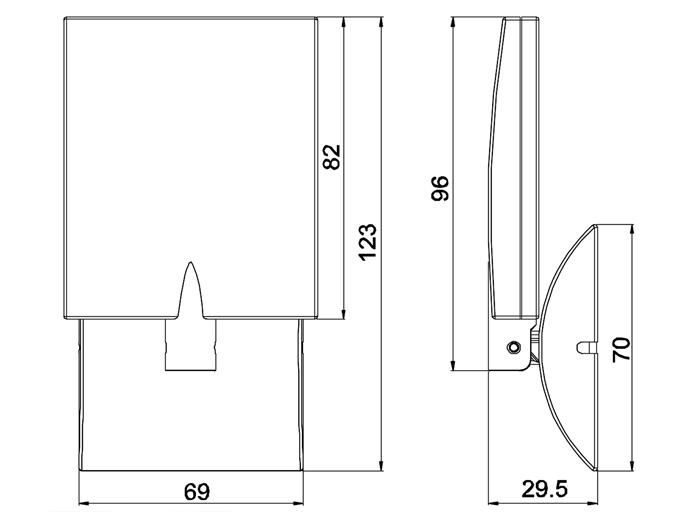

• Dimension: 123.00 x 69.00 x 29.50 mm
• Weight: 122 g

System requirements:


Package content:
• Antenna

Antenna
